TL3210 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Mechanical Life | Actuator Height off PCB, Vertical [z] | Termination Style | Illumination | Contact Rating @ Voltage | Illumination Voltage (Nominal) | Operating Force | Illumination Type, Color | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Outline [y] | Outline [x] | Switch Function | Actuator Type | Actuator Orientation | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

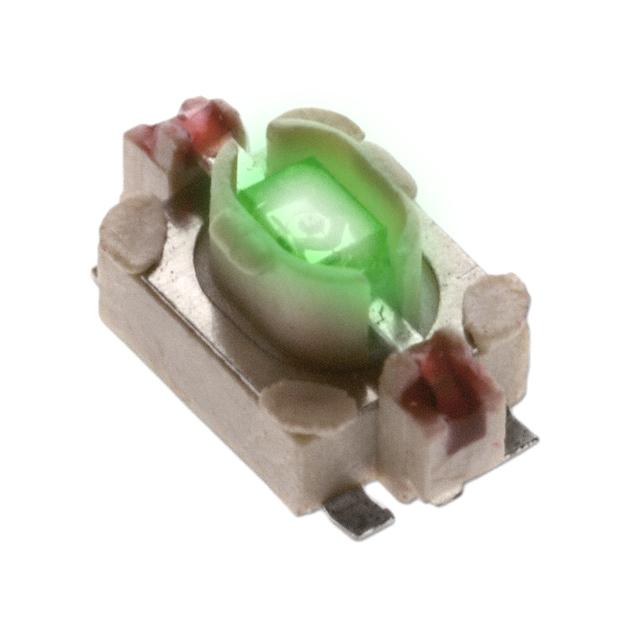

 E-Switch | 0.2 mm | 100000 Cycles | 3.12 mm | Gull Wing | Illuminated | 0.05 A 12 VDC | 2.1 VDC | 160 gf | Green LED | Surface Mount | -20 ░C | 70 °C | 3.4 mm | 5.6 mm | Off-Mom | Plunger for Cap | Top Actuated | SPST-NO |

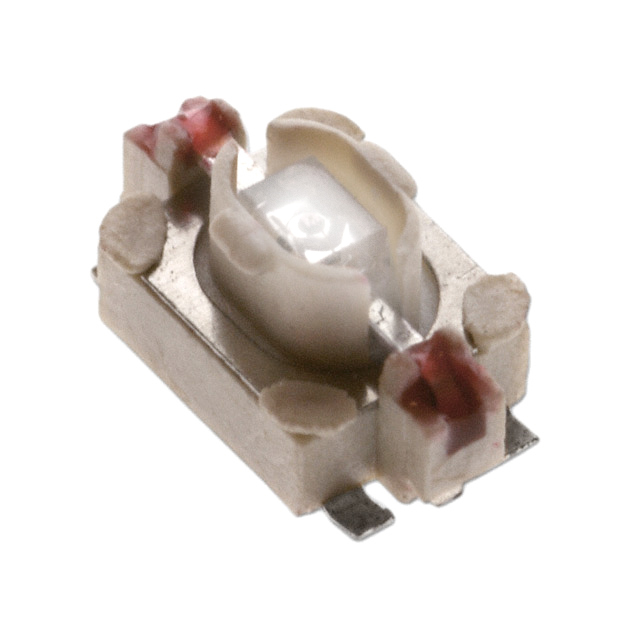

 E-Switch | 0.2 mm | 100000 Cycles | 3.12 mm | Gull Wing | Illuminated | 0.05 A 12 VDC | 3.6 VDC | 160 gf | LED White | Surface Mount | -20 ░C | 70 °C | 3.4 mm | 5.6 mm | Off-Mom | Plunger for Cap | Top Actuated | SPST-NO |
 E-Switch | 0.2 mm | 100000 Cycles | 3.12 mm | Gull Wing | Illuminated | 0.05 A 12 VDC | 1.95 VDC 3.3 VDC | 160 gf | Green/Red LED | Surface Mount | -20 ░C | 70 °C | 3.4 mm | 5.6 mm | Off-Mom | Plunger for Cap | Top Actuated | SPST-NO |

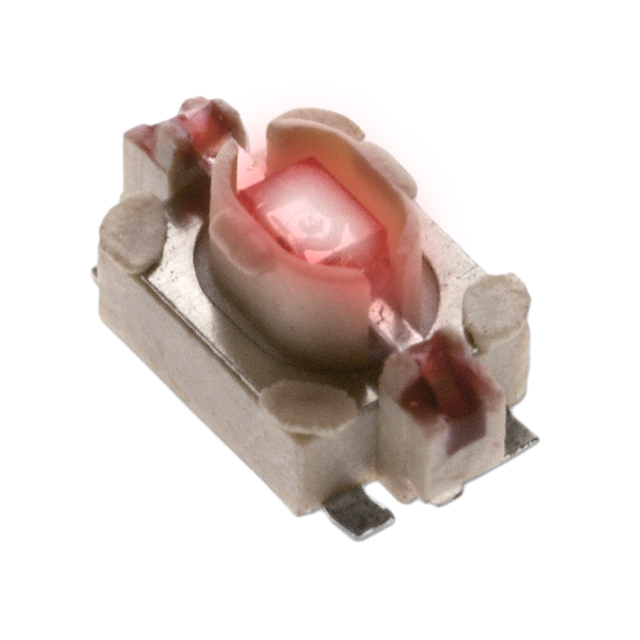

 E-Switch | 3.12 mm | Gull Wing | Illuminated | 0.05 A 12 VDC | 1.95 VDC | 160 gf | LED Red | Surface Mount | -20 ░C | 70 °C | 3.4 mm | 5.6 mm | Off-Mom | Plunger for Cap | Top Actuated | SPST-NO | ||
 E-Switch | 0.2 mm | 100000 Cycles | 3.12 mm | Gull Wing | Illuminated | 0.05 A 12 VDC | 1.95 VDC 3.3 VDC | 160 gf | Blue LED Red | Surface Mount | -20 ░C | 70 °C | 3.4 mm | 5.6 mm | Off-Mom | Plunger for Cap | Top Actuated | SPST-NO |
 E-Switch | 0.2 mm | 100000 Cycles | 3.12 mm | Gull Wing | Illuminated | 0.05 A 12 VDC | 3.3 VDC | 160 gf | Blue LED | Surface Mount | -20 ░C | 70 °C | 3.4 mm | 5.6 mm | Off-Mom | Plunger for Cap | Top Actuated | SPST-NO |
