D4NL-4DF Series

Catalog

INTERLOCK SOLENOID LOCKING DPST

Part	Voltage Rating	Current Rating (Amps)	Ingress Protection	Approval Agency	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Termination Style	Actuator Type	Features	Type	Holding Force	Voltage - Supply	Circuit
Omron Electronics Inc-EMC Div D4NL-4DFG-B	240 VAC 250 VDC	3 A 270 mA	IP67 - Dust Tight Waterproof	CCC CE cULus TUV	55 °C	-10 °C	Screw Terminal	Panel Disconnect	Status Indicator	Solenoid Locking	133 kgf	24 VDC	DPST-NC x 2
Omron Electronics Inc-EMC Div D4NL-4DFH-B	240 VAC 250 VDC	3 A 270 mA	IP67 - Dust Tight Waterproof	CCC CE cULus TUV	55 °C	-10 °C	Screw Terminal	Panel Disconnect	Status Indicator	Solenoid Locking	133 kgf	110 VAC/DC	DPST-NC x 2
Omron Electronics Inc-EMC Div D4NL-4DFA-B4	240 VAC 250 VDC	3 A 270 mA	IP67 - Dust Tight Waterproof	CCC CE cULus TUV	55 °C	-10 °C	Screw Terminal	Panel Disconnect	Status Indicator	Solenoid Release	133 kgf	24 VDC	DPST-NC x 2

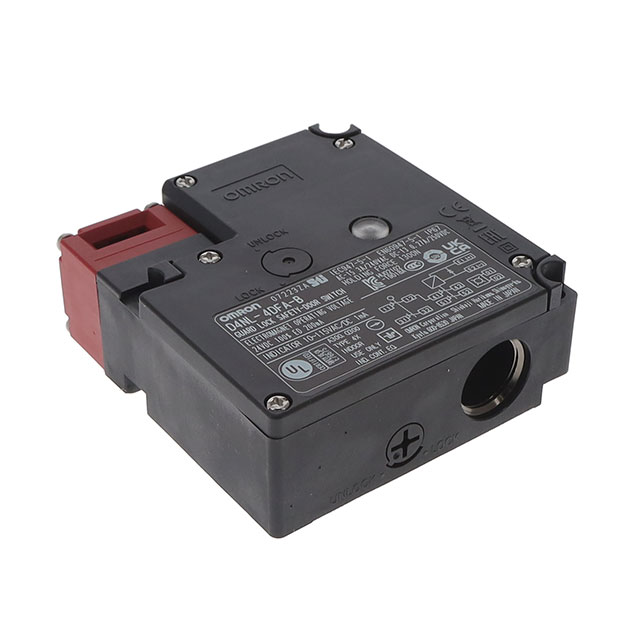

Omron Electronics Inc-EMC Div D4NL-4DFA-B	240 VAC 250 VDC	3 A 270 mA	IP67 - Dust Tight Waterproof	CCC CE cULus TUV	55 °C	-10 °C	Screw Terminal	Panel Disconnect	Status Indicator	Solenoid Release	133 kgf	24 VDC	DPST-NC x 2
Omron Electronics Inc-EMC Div D4NL-4DFA-B4-NPT	240 VAC 250 VDC	3 A 270 mA	IP67 - Dust Tight Waterproof	CCC CE cULus TUV	55 °C	-10 °C	Screw Terminal	Panel Disconnect	Status Indicator	Solenoid Release	133 kgf	24 VDC	DPST-NC x 2
Omron Electronics Inc-EMC Div D4NL-4DFG-B4	240 VAC 250 VDC	3 A 270 mA	IP67 - Dust Tight Waterproof	CCC CE cULus TUV	55 °C	-10 °C	Screw Terminal	Panel Disconnect	Status Indicator	Solenoid Locking	133 kgf	24 VDC	DPST-NC x 2
