TS2C2M Series
Manufacturer: Switchcraft Inc.
Beta
⌘K

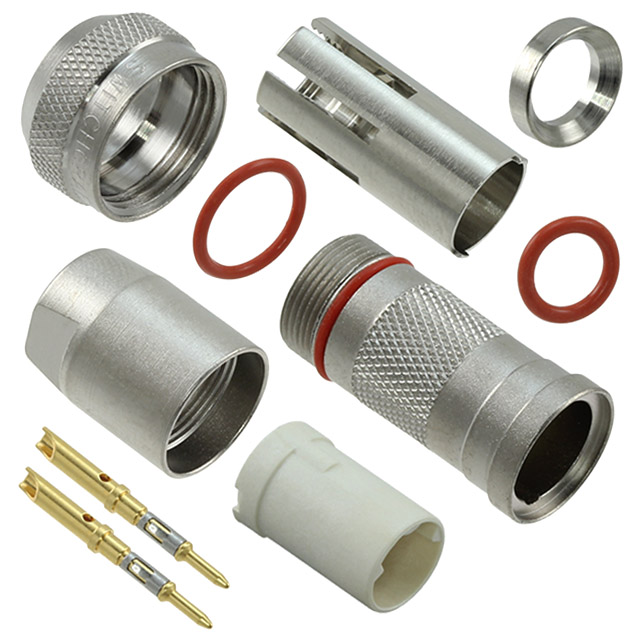

CONN PLUG MALE 2POS GOLD CRIMP
| Part | Connector Type | Contact Material | Shell Material | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Orientation | Shielding | Termination | Backshell Material, Plating | Shell Finish | Insert Material | Voltage Rating | Applications | Color | Ingress Protection | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Features | Mounting Type | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | Male Pins Plug | Copper Alloy | Copper Alloy | 5.49 mm | 4.57 mm | 0.18 in | 0.216 in | Keyed | Shielded | Crimp Solder Cup | Copper Alloy Nickel | Electroless Nickel | Liquid Crystal Polymer (LCP) | 125 VAC | Agriculture Audio General Medical Testing Equipment & Measurement | Silver | IP66 IP67 IP68 | Metal | 135 °C | -40 °C | 2 | Backshell Coupling Nut | Free Hanging (In-Line) | Gold |
