82-6153 Series

Manufacturer: EAO

Catalog

SWITCH PUSHBUTTON SPDT 200MA 24V

Part	Electrical Life	Mechanical Life	Ingress Protection	Illumination Voltage (Nominal)	Termination Style	Switch Function	Panel Cutout Dimensions [diameter]	Features	Illumination Type, Color	Actuator Type	Circuit	Color - Actuator/Cap	Mounting Type	Type	Voltage Rating - DC	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating - AC
EAO 82-6153.2124	50000 Cycles	500000 Cycles	IP65 IP67	24 VAC/DC	Solder Quick Connect - 0.110" (2.8mm)	On-On	22.3 mm	Stainless Steel	Blue LED	Button Flush Round	SPDT	Silver	Panel Mount Front	Illuminated Standard	24 V	No Marking	-30 ░C	70 °C	200 mA	24 V
EAO 82-6153.2000	50000 Cycles	500000 Cycles	IP65 IP67		Solder Quick Connect - 0.110" (2.8mm)	On-On	22.3 mm			Button Flush Round	SPDT	Silver	Panel Mount Front	Standard	24 V	No Marking	-30 ░C	70 °C	200 mA	24 V
EAO 82-6153.12A4	50000 Cycles	1000000 Cycles	IP65 IP67	24 VAC/DC	Solder Quick Connect - 0.110" (2.8mm)	On-Mom	22.3 mm		Green/Red LED	Button Flush Round	SPDT	Silver	Panel Mount Front	Illuminated Standard	240 VDC	No Marking	-30 ░C	70 °C	3 A	240 V
EAO 82-6153.21A4	50000 Cycles	500000 Cycles	IP65 IP67	24 VAC/DC	Solder Quick Connect - 0.110" (2.8mm)	On-On	22.3 mm		Green/Red LED	Button Flush Round	SPDT	Silver	Panel Mount Front	Illuminated Standard	240 VDC	No Marking	-30 ░C	70 °C	3 A	240 V
EAO 82-6153.2122	50000 Cycles	500000 Cycles	IP65 IP67	6 VAC/DC	Solder Quick Connect - 0.110" (2.8mm)	On-On	22.3 mm	Stainless Steel	Blue LED	Button Flush Round	SPDT	Silver	Panel Mount Front	Illuminated Standard	24 V	No Marking	-30 ░C	70 °C	200 mA	24 V
EAO 82-6153.1233	50000 Cycles	1000000 Cycles	IP65 IP67	12 VAC/DC	Solder Quick Connect - 0.110" (2.8mm)	On-Mom	22.3 mm		Green LED	Button Flush Round	SPDT	Silver	Panel Mount Front	Illuminated Standard	24 V	No Marking	-30 ░C	70 °C	200 mA	24 V
EAO 82-6153.1114	50000 Cycles	1000000 Cycles	IP65 IP67	24 VAC/DC	Solder Quick Connect - 0.110" (2.8mm)	On-Mom	22.3 mm	Stainless Steel	LED Red	Button Flush Round	SPDT	Silver	Panel Mount Front	Illuminated Standard	24 V	No Marking	-30 ░C	70 °C	200 mA	24 V
EAO 82-6153.2132	50000 Cycles	500000 Cycles	IP65 IP67	6 VAC/DC	Solder Quick Connect - 0.110" (2.8mm)	On-On	22.3 mm		Green LED	Button Flush Round	SPDT	Silver	Panel Mount Front	Illuminated Standard	24 V	No Marking	-30 ░C	70 °C	200 mA	24 V
EAO 82-6153.1133	50000 Cycles	1000000 Cycles	IP65 IP67	12 VAC/DC	Solder Quick Connect - 0.110" (2.8mm)	On-Mom	22.3 mm	Stainless Steel	Green LED	Button Flush Round	SPDT	Silver	Panel Mount Front	Illuminated Standard	24 V	No Marking	-30 ░C	70 °C	200 mA	24 V

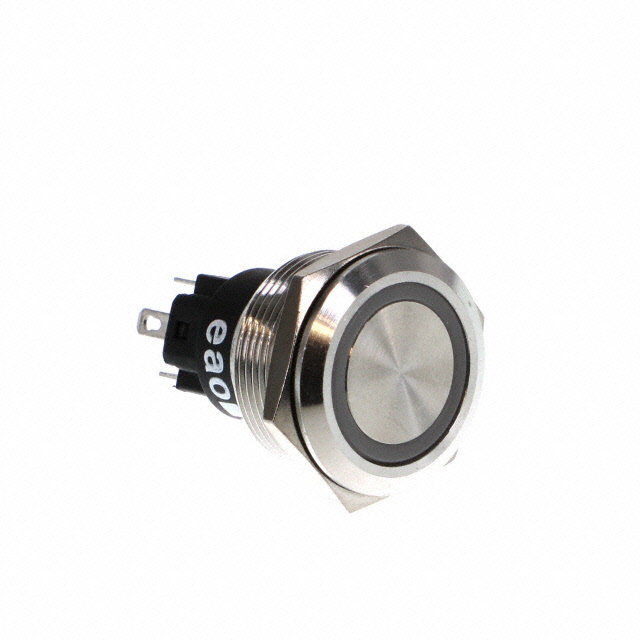

EAO 82-6153.2134	50000 Cycles	500000 Cycles	IP65 IP67	24 VAC/DC	Solder Quick Connect - 0.110" (2.8mm)	On-On	22.3 mm	Stainless Steel	Green LED	Button Flush Round	SPDT	Silver	Panel Mount Front	Illuminated Standard	24 V	No Marking	-30 ░C	70 °C	200 mA	24 V
