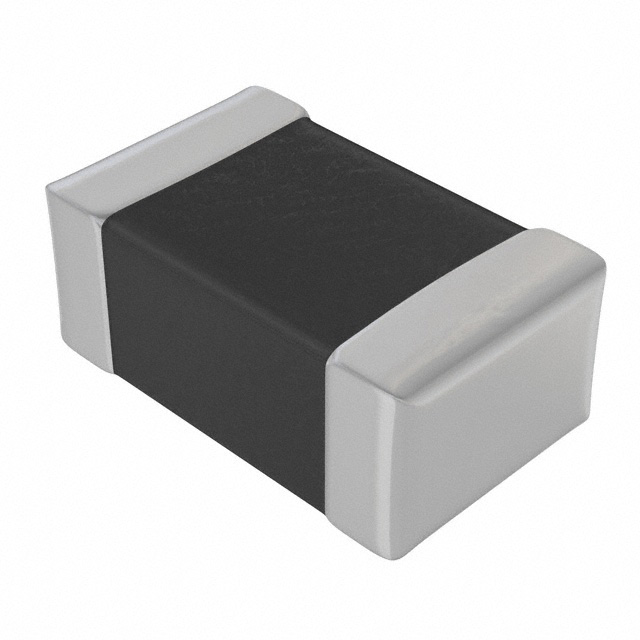

AIML-0805 Series

Catalog

FIXED IND 47UH 4MA 3OHM SMD

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Shielding	DC Resistance (DCR)	Inductance Frequency - Test	Type	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	Supplier Device Package	Tolerance	Mounting Type	Material - Core	Frequency - Self Resonant	Q @ Freq	Current Rating (Amps)	Q @ Freq [custom]	Q @ Freq [custom]
Abracon LLC AIML-0805-470K-T	2 mm	1.25 mm	0.049 "	0.079 in	0805	Shielded	3 Ohm	2 MHz	Multilayer	-55 C	125 °C	47 µH	0805 (2012 Metric)	10 %	Surface Mount	Ferrite	7.5 MHz	2 MHz 25	4 mA
Abracon LLC AIML-0805-R047K-T	2 mm	1.25 mm	0.049 "	0.079 in	0805	Shielded	200 mOhm	50 MHz	Multilayer	-55 C	125 °C	47 nH	0805 (2012 Metric)	10 %	Surface Mount	Ferrite	320 MHz	15 50 MHz	0.3 A
Abracon LLC AIML-0805-180K-T	2 mm	1.25 mm	0.049 "	0.079 in	0805	Shielded	900 mOhm	1 MHz	Multilayer	-55 C	125 °C	18 µH	0805 (2012 Metric)	10 %	Surface Mount	Ferrite	18 MHz		5 mA	30	1 MHz
Abracon LLC AIML-0805-270K-T	2 mm	1.25 mm	0.049 "	0.079 in	0805	Shielded	1.15 Ohm	1 MHz	Multilayer	-55 C	125 °C	27 µH	0805 (2012 Metric)	10 %	Surface Mount	Ferrite	14 MHz		5 mA	30	1 MHz
Abracon LLC AIML-0805-R22K-T	2 mm	1.25 mm	0.049 "	0.079 in	0805	Shielded	500 mOhm	25 MHz	Multilayer	-55 C	125 °C	220 nH	0805 (2012 Metric)	10 %	Surface Mount	Ferrite	170 MHz	20 25 MHz	0.25 A
Abracon LLC AIML-0805-220K-T	2 mm	1.25 mm	0.049 "	0.079 in	0805	Shielded	1.1 Ohm	1 MHz	Multilayer	-55 C	125 °C	22 µH	0805 (2012 Metric)	10 %	Surface Mount	Ferrite	16 MHz		5 mA	30	1 MHz
Abracon LLC AIML-0805-R068K-T	2 mm	1.25 mm	0.049 "	0.079 in	0805	Shielded	200 mOhm	50 MHz	Multilayer	-55 C	125 °C	68 nH	0805 (2012 Metric)	10 %	Surface Mount	Ferrite	280 MHz	15 50 MHz	0.3 A
Abracon LLC AIML-0805-3R3K-T	2 mm	1.25 mm	0.049 "	0.079 in	0805	Shielded	800 mOhm	10 MHz	Multilayer	-55 C	125 °C	3.3 µH	0805 (2012 Metric)	10 %	Surface Mount	Ferrite	41 MHz	10 MHz 45	30 mA
Abracon LLC AIML-0805-1R2K-T	2 mm	1.25 mm	0.049 "	0.079 in	0805	Shielded	500 mOhm	10 MHz	Multilayer	-55 C	125 °C	1.2 µH	0805 (2012 Metric)	10 %	Surface Mount	Ferrite	85 MHz	10 MHz 45	50 mA
Abracon LLC AIML-0805-R082K-T	2 mm	1.25 mm	0.049 "	0.079 in	0805	Shielded	200 mOhm	50 MHz	Multilayer	-55 C	125 °C	82 nH	0805 (2012 Metric)	10 %	Surface Mount	Ferrite	255 MHz	15 50 MHz	0.3 A
