TPS60150 Series

140mA, 5V Charge Pump in 2x2 SON

Catalog

140mA, 5V Charge Pump in 2x2 SON

Part	Frequency - Switching	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Main Purpose	Regulator Topology	Utilized IC / Part	Board Type	Supplied Contents	Current - Output	Outputs and Type	Outputs and Type	Voltage - Output (Min/Fixed)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Outputs	Supplier Device Package	Function	Output Configuration	Output Type	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]

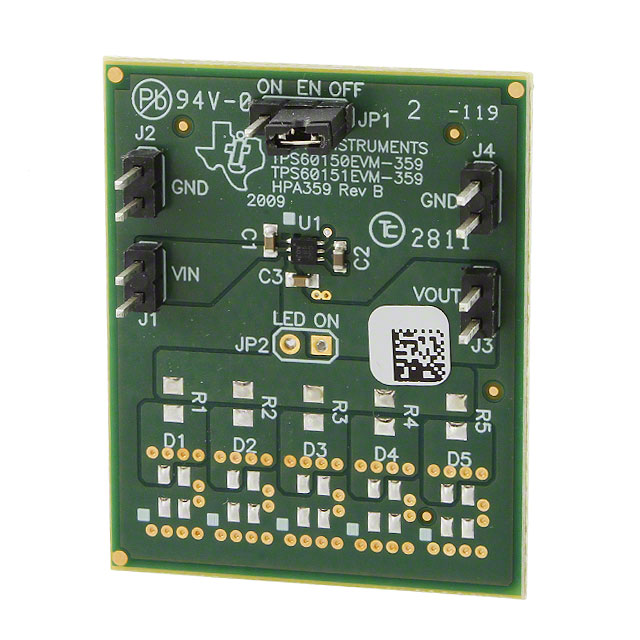

Texas Instruments TPS60150EVM-359	1.5 MHz	5 V	2.7 V	5.5 V	DC/DC Step Up	Boost	TPS60150	Fully Populated	Board(s)	140 mA	Non-Isolated	1
Texas Instruments TPS60150DRVR	1.5 MHz									140 mA			5 V	85 °C	-40 °C	Surface Mount	1	6-WSON (2x2)	Step-Up	Positive	1.81 mOhm	2.7 V	5.5 V
Texas Instruments TPS60150DRVT	1.5 MHz									140 mA			5 V	85 °C	-40 °C	Surface Mount	1	6-WSON (2x2)	Step-Up	Positive	1.81 mOhm	2.7 V	5.5 V

Catalog

140mA, 5V Charge Pump in 2x2 SON

Key Features

• 2.7-V to 5.5-V Input Voltage RangeFixed Output Voltage of 5 VMaximum Output Current: 140 mA1.5-MHz Switching FrequencyTypical 90-µA Quiescent Current at No LoadCondition (Skip Mode)X2 Charge PumpHardware Enable and Disable FunctionBuilt-in Soft StartBuilt-in Undervoltage Lockout ProtectionThermal and Overcurrent ProtectionAvailable in a 2-mm × 2-mm 6-Pin SON Packagewith 0.8-mm Height2.7-V to 5.5-V Input Voltage RangeFixed Output Voltage of 5 VMaximum Output Current: 140 mA1.5-MHz Switching FrequencyTypical 90-µA Quiescent Current at No LoadCondition (Skip Mode)X2 Charge PumpHardware Enable and Disable FunctionBuilt-in Soft StartBuilt-in Undervoltage Lockout ProtectionThermal and Overcurrent ProtectionAvailable in a 2-mm × 2-mm 6-Pin SON Packagewith 0.8-mm Height

Description

The TPS60150 device is a switched capacitor voltage converter that produces a regulated, low noise, and low-ripple output voltage of 5 V from an unregulated input voltage. The 5-V output can supply a minimum of 140-mA current. The TPS60150 device operates in skip mode when the load current falls less than 8 mA under typical condition. In skip mode operation, quiescent current is reduced to 90 µA. Only 3 external capacitors are needed to generate the output voltage, therefore saving PCB space. Inrush current is limited by the soft-start function during power on and power transient states. The TPS60150 device operates over a free-air temperature range of –40°C to 85°C. The device is available with a small 2-mm × 2-mm 6-pin SON package (QFN). The TPS60150 device is a switched capacitor voltage converter that produces a regulated, low noise, and low-ripple output voltage of 5 V from an unregulated input voltage. The 5-V output can supply a minimum of 140-mA current. The TPS60150 device operates in skip mode when the load current falls less than 8 mA under typical condition. In skip mode operation, quiescent current is reduced to 90 µA. Only 3 external capacitors are needed to generate the output voltage, therefore saving PCB space. Inrush current is limited by the soft-start function during power on and power transient states. The TPS60150 device operates over a free-air temperature range of –40°C to 85°C. The device is available with a small 2-mm × 2-mm 6-pin SON package (QFN).
