XKN.M13 Series
Manufacturer: LEMO
Beta
⌘K

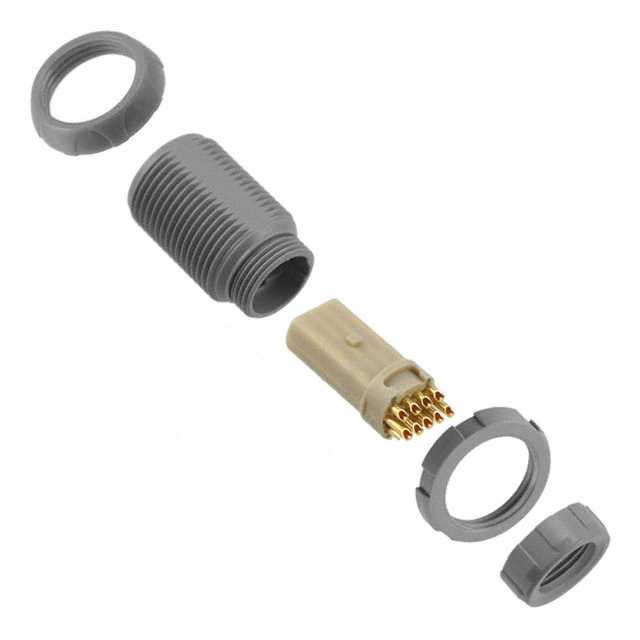

CONN RCPT FMALE 13P SOLDER CUP
| Part | Fastening Type | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Shielding | Number of Positions | Color | Shell Size - Insert | Connector Type | Current Rating (Amps) | Ingress Protection | Mounting Feature | Orientation | Primary Material | Applications | Insert Material | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Push-Pull | Gold | 170 °C | -50 °C | Sulfone | Unshielded | 13 | White | M13 | Receptacle Female Sockets | 4 A | IP50 - Dust Protected | Front and Rear Side Nut | N (Normal) | Plastic | Industrial Medical Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Panel Mount | |
LEMO | Push-Pull | Gold | 170 °C | -50 °C | Sulfone | Unshielded | 13 | Gray | M13 | Receptacle Female Sockets | 4 A | IP50 - Dust Protected | Front and Rear Side Nut | N (Normal) | Plastic | Industrial Medical Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Panel Mount | Crimp |
 LEMO | Push-Pull | Gold | 170 °C | -50 °C | Sulfone | Unshielded | 13 | Blue Gray | M13 | Receptacle Female Sockets | 4 A | IP50 - Dust Protected | Front and Rear Side Nut | N (Normal) | Plastic | Industrial Medical Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Panel Mount |
