8218J Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

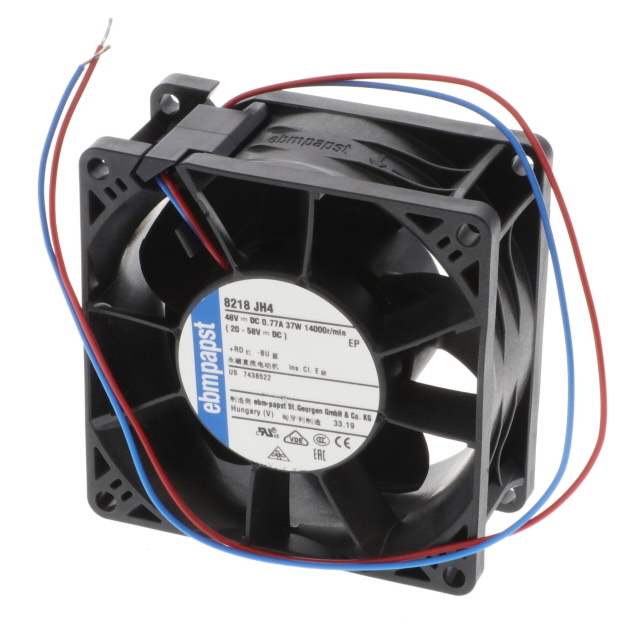

FAN AXIAL 80X38MM 48VDC WIRE
| Part | Lifetime @ Temp. | Voltage Range [Max] | Voltage Range [Min] | Material - Blade | Material - Frame | Size / Dimension [z] | Size / Dimension [x] | Width [y] | Operating Temperature [Min] | Operating Temperature [Max] | RPM | Termination | Power (Watts) | Bearing Type | Fan Type | Air Flow | Air Flow | Noise | Voltage - Rated | Features | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 40 °C 50000 Hrs | 58 VDC | 20 VDC | Polyamide (PA) Nylon Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 80 mm | 80 mm | 38 mm | -20 ░C | 70 °C | 14000 RPM | 2 Wire Leads | 36 W | Ball | Tubeaxial | 131 CFM | 3.67 mł/min | 71 dB(A) | 48 VDC | |||
 ebm-papst Inc. | 55000 Hrs | 53 VDC | 36 VDC | Polyamide (PA) Nylon Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 80 mm | 80 mm | 38 mm | -20 ░C | 70 °C | 12000 RPM | 3 Wire Leads | 25 W | Ball | Tubeaxial | 112 CFM | 3.14 mł/min | 48 VDC | Locked Rotor Protection Speed Sensor (Tach) | |||
 ebm-papst Inc. | 55000 Hrs | 53 VDC | 36 VDC | Polyamide (PA) Nylon Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 80 mm | 80 mm | 38 mm | -20 ░C | 70 °C | 12000 RPM | 2 Wire Leads | 25 W | Ball | Tubeaxial | 112 CFM | 3.14 mł/min | 48 VDC | ||||
 ebm-papst Inc. | 62500 Hrs | 53 VDC | 36 VDC | Polyamide (PA) Nylon | 80 mm | 80 mm | 38 mm | -20 ░C | 70 °C | 8400 RPM | 2 Wire Leads | 11 W | Ball | Tubeaxial | 78 CFM | 2.18 mł/min | 55 dB(A) | 48 VDC | 0.353 lb | 160.12 g |
