ERA-6AED Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

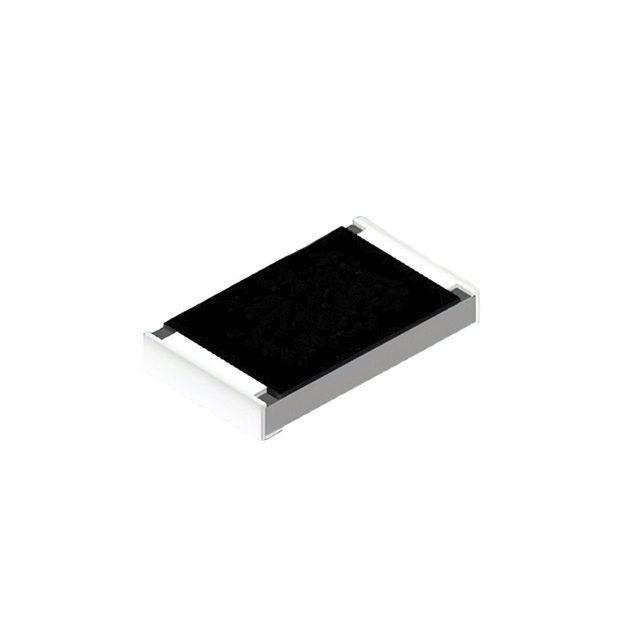

RES SMD 340 OHM 0.5% 1/8W 0805
| Part | Number of Terminations | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Features | Resistance | Power (Watts) | Power (Watts) | Temperature Coefficient | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case | Supplier Device Package | Composition | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 2 | 155 °C | -55 °C | AEC-Q200 | Automotive AEC-Q200 | 340 Ohms | 0.125 W | 0.125 W | 25 ppm/°C | 0.6 mm | 0.024 in | 0805 | 0805 | Thin Film | 2 mm | 0.079 in | 0.049 in | 1.25 mm |
Panasonic Industrial Automation Sales | 2 | 155 °C | -55 °C | AEC-Q200 | Automotive AEC-Q200 | 23.7 kOhms | 0.125 W | 0.125 W | 25 ppm/°C | 0.6 mm | 0.024 in | 0805 | 0805 | Thin Film | 2 mm | 0.079 in | 0.049 in | 1.25 mm |
Panasonic Industrial Automation Sales | 2 | 155 °C | -55 °C | AEC-Q200 | Automotive AEC-Q200 | 12.4 kOhms | 0.125 W | 0.125 W | 25 ppm/°C | 0.6 mm | 0.024 in | 0805 | 0805 | Thin Film | 2 mm | 0.079 in | 0.049 in | 1.25 mm |
Panasonic Industrial Automation Sales | 2 | 155 °C | -55 °C | AEC-Q200 | Automotive AEC-Q200 | 768 Ohms | 0.125 W | 0.125 W | 25 ppm/°C | 0.6 mm | 0.024 in | 0805 | 0805 | Thin Film | 2 mm | 0.079 in | 0.049 in | 1.25 mm |
 Panasonic Industrial Automation Sales | 2 | 155 °C | -55 °C | AEC-Q200 | Automotive AEC-Q200 | 91 kOhms | 0.125 W | 0.125 W | 25 ppm/°C | 0.6 mm | 0.024 in | 0805 | 0805 | Thin Film | 2 mm | 0.079 in | 0.049 in | 1.25 mm |
Panasonic Industrial Automation Sales | 2 | 155 °C | -55 °C | AEC-Q200 | Automotive AEC-Q200 | 1.2 kOhms | 0.125 W | 0.125 W | 25 ppm/°C | 0.6 mm | 0.024 in | 0805 | 0805 | Thin Film | 2 mm | 0.079 in | 0.049 in | 1.25 mm |
Panasonic Industrial Automation Sales | 2 | 155 °C | -55 °C | AEC-Q200 | Automotive AEC-Q200 | 240 kOhms | 0.125 W | 0.125 W | 25 ppm/°C | 0.6 mm | 0.024 in | 0805 | 0805 | Thin Film | 2 mm | 0.079 in | 0.049 in | 1.25 mm |
Panasonic Industrial Automation Sales | 2 | 155 °C | -55 °C | AEC-Q200 | Automotive AEC-Q200 | 845 Ohms | 0.125 W | 0.125 W | 25 ppm/°C | 0.6 mm | 0.024 in | 0805 | 0805 | Thin Film | 2 mm | 0.079 in | 0.049 in | 1.25 mm |
 Panasonic Industrial Automation Sales | 2 | 155 °C | -55 °C | AEC-Q200 | Automotive AEC-Q200 | 510 kOhms | 0.125 W | 0.125 W | 25 ppm/°C | 0.6 mm | 0.024 in | 0805 | 0805 | Thin Film | 2 mm | 0.079 in | 0.049 in | 1.25 mm |
Panasonic Industrial Automation Sales | 2 | 155 °C | -55 °C | AEC-Q200 | Automotive AEC-Q200 | 143 Ohms | 0.125 W | 0.125 W | 25 ppm/°C | 0.6 mm | 0.024 in | 0805 | 0805 | Thin Film | 2 mm | 0.079 in | 0.049 in | 1.25 mm |
