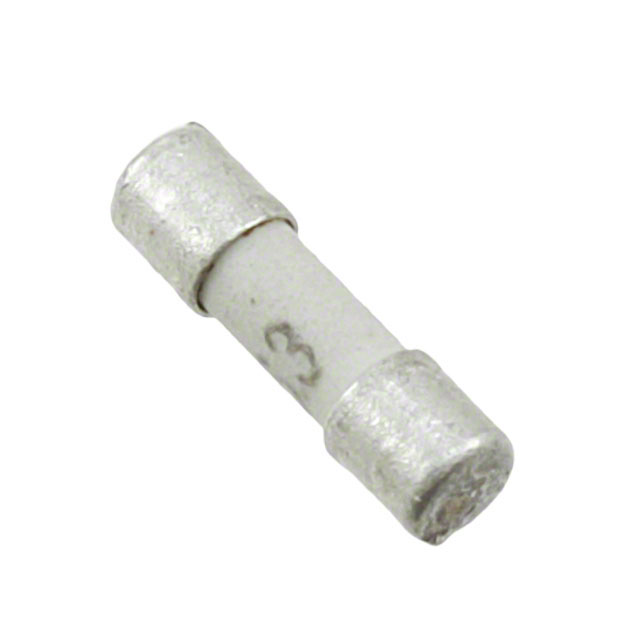

MSB Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
SURFACE MOUNT FUSES MSB SURFACE MOUNT FUSE 1A
| Part | Melting I˛t | Package / Case | Melting I²t | Breaking Capacity @ Rated Voltage | Response Time | Voltage Rating - DC | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Fuse Type | Current Rating (Amps) | Mounting Type | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 0.79 | Cartridge Non-Standard | 0.79 | 50 A | Slow Blow | 125 VDC | -55 C | 85 °C | 2 mm | 0.276 " | 0.079 " | 7 mm | Board Mount (Cartridge Style Excluded) | 1 A | Requires Holder | 125 V |
 SCHURTER Inc. | Cartridge Non-Standard | 0.79 | 50 A | Slow Blow | 125 VDC | -55 C | 85 °C | 2 mm | 0.276 " | 0.079 " | 7 mm | Board Mount (Cartridge Style Excluded) | 1 A | Requires Holder | 125 V |
