039860 Series

Manufacturer: Molex

Catalog

TERM BLOCK PLUG 6POS 5.08MM

Part	Type	Housing Material	Positions Per Level	Contact Material	Number of Positions	Features	Mounting Type	Operating Temperature	Screw Size	Pitch [x]	Pitch [x]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels	Voltage - UL	Contact Mating Finish	Termination Style	Plug Wire Entry	Color	Insulation Height	Insulation Height	Contact Tail Length	Contact Tail Length	Header Orientation

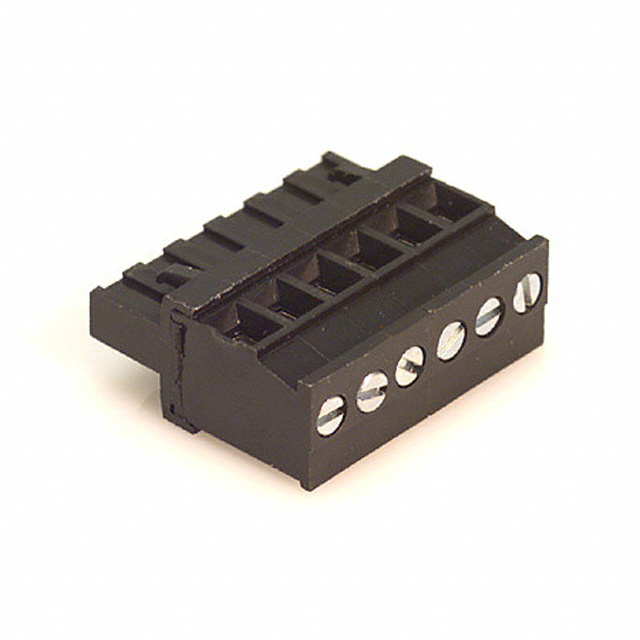

Molex 0398600306	Plug Female Sockets	Polyamide (PA) Nylon	6	Phosphor Bronze	6	Retention Latches (Wire Side)	Free Hanging (In-Line)	110 °C	M3	0.2 in	5.08 mm	12 AWG	26 AWG	1	300 V	Tin	Screw - Rising Cage Clamp	90 °	Black	1.01 in	25.65 mm

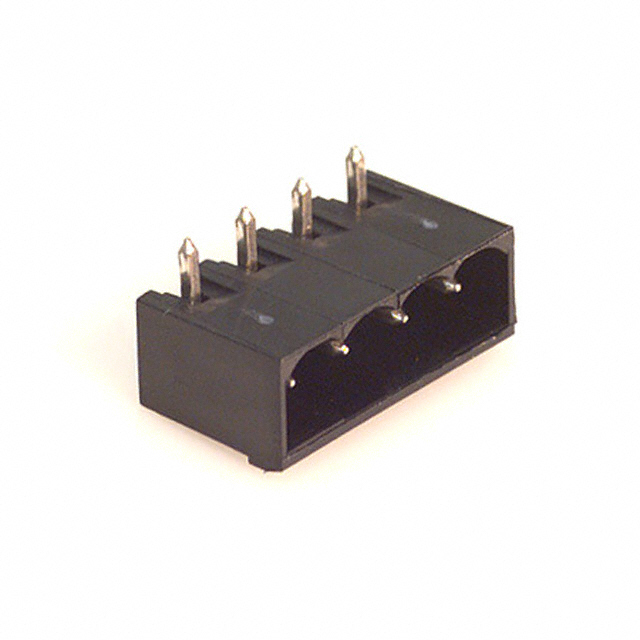

Molex 0398600704	Header Male Pins Shrouded (4 Side)	Polyamide (PA) Nylon	4	Brass	4		Through Hole	110 °C		0.2 in	5.08 mm			1	300 V	Tin	Solder		Black	0.33 in	8.38 mm	3.3 mm	0.13 in	90° Right Angle

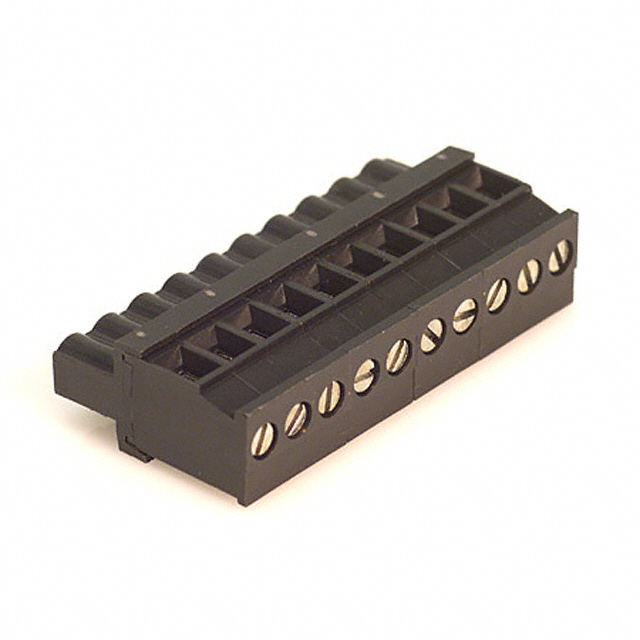

Molex 0398600210	Plug Female Sockets	Polyamide (PA) Nylon	10	Phosphor Bronze	10		Free Hanging (In-Line)	110 °C	M3	0.2 in	5.08 mm	12 AWG	26 AWG	1	300 V	Tin	Screw - Rising Cage Clamp	270 °	Black	1.01 in	25.65 mm

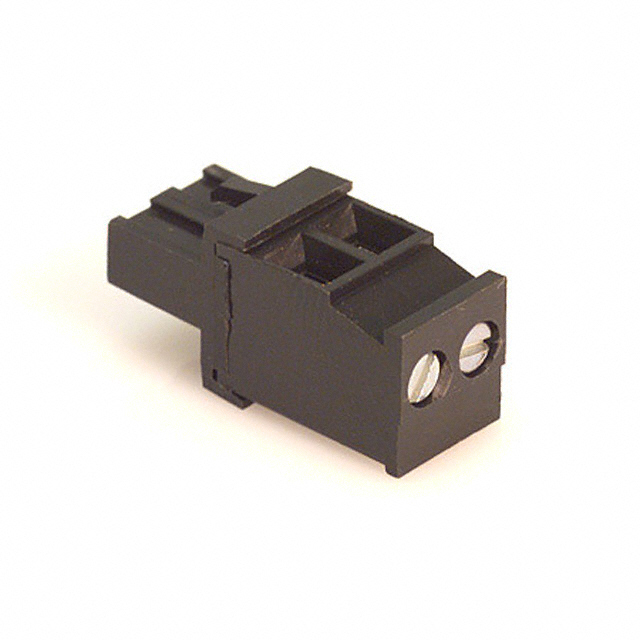

Molex 0398600302	Plug Female Sockets	Polyamide (PA) Nylon	2	Phosphor Bronze	2	Retention Latches (Wire Side)	Free Hanging (In-Line)	110 °C	M3	0.2 in	5.08 mm	12 AWG	26 AWG	1	300 V	Tin	Screw - Rising Cage Clamp	90 °	Black	1.01 in	25.65 mm

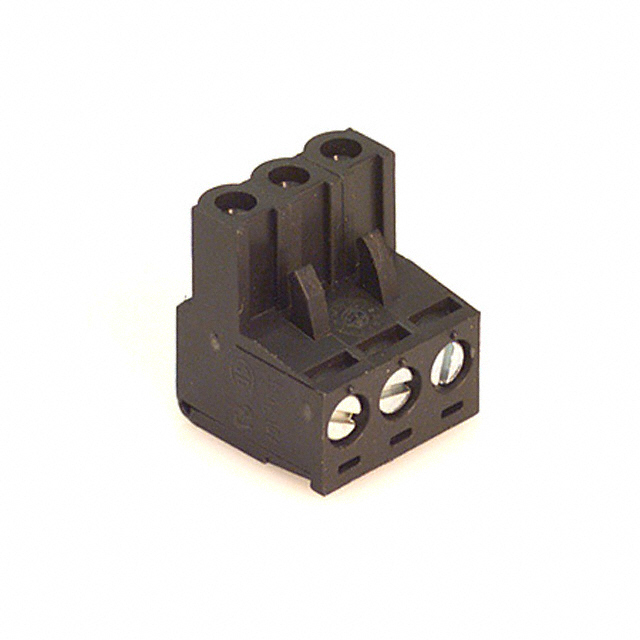

Molex 0398600103	Plug Female Sockets	Thermoplastic	3	Phosphor Bronze			Free Hanging (In-Line)	110 °C	M3	0.2 in	5.08 mm	12 AWG	26 AWG	1	300 V	Tin	Screw - Rising Cage Clamp		Black	0.591 in	15 mm

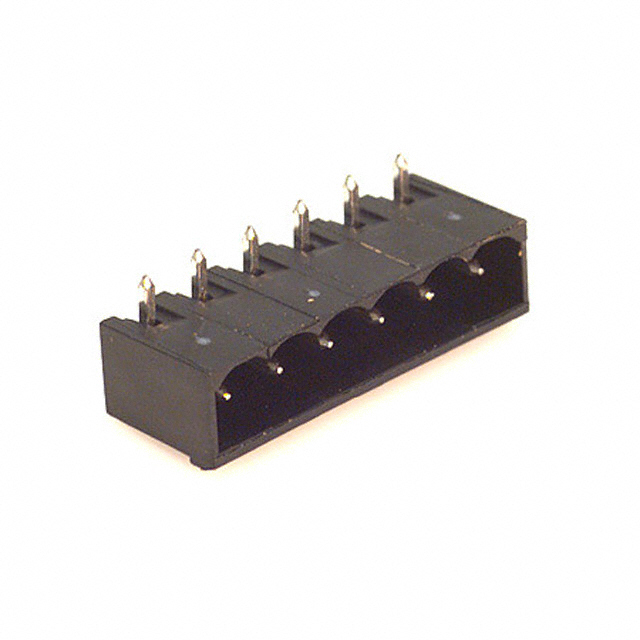

Molex 0398600706	Header Male Pins Shrouded (4 Side)	Polyamide (PA) Nylon	6	Brass	6		Through Hole	110 °C		0.2 in	5.08 mm			1	300 V	Tin	Solder		Black	0.33 in	8.38 mm	3.3 mm	0.13 in	90° Right Angle

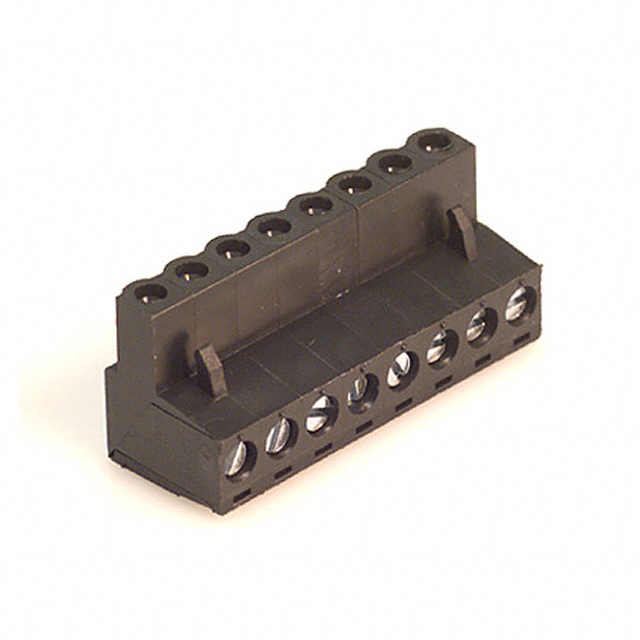

Molex 0398600108	Plug Female Sockets	Thermoplastic	8	Phosphor Bronze	8		Free Hanging (In-Line)	110 °C	M3	0.2 in	5.08 mm	12 AWG	26 AWG	1	300 V	Tin	Screw - Rising Cage Clamp		Black	0.591 in	15 mm
Molex 0398600703	Header Male Pins Shrouded (4 Side)	Polyamide (PA) Nylon	3	Brass			Through Hole	110 °C		0.2 in	5.08 mm			1	300 V	Tin	Solder		Black	0.33 in	8.38 mm	3.3 mm	0.13 in	90° Right Angle

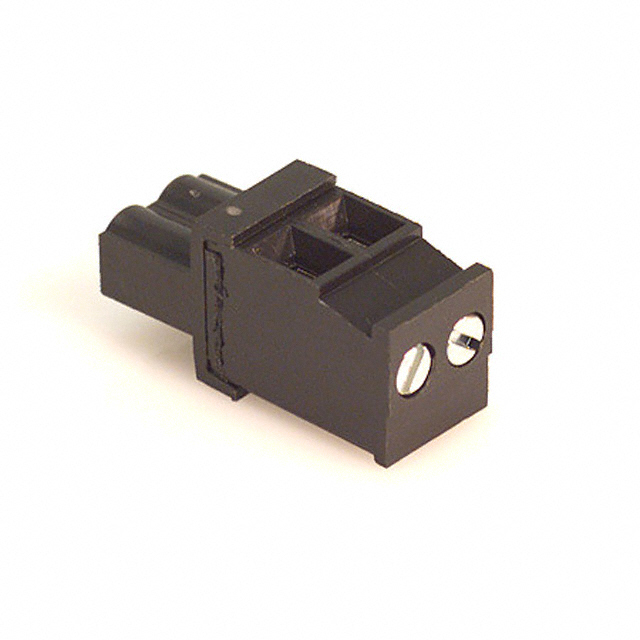

Molex 0398600202	Plug Female Sockets	Polyamide (PA) Nylon	2	Phosphor Bronze	2		Free Hanging (In-Line)	110 °C	M3	0.2 in	5.08 mm	12 AWG	26 AWG	1	300 V	Tin	Screw - Rising Cage Clamp	270 °	Black	1.01 in	25.65 mm

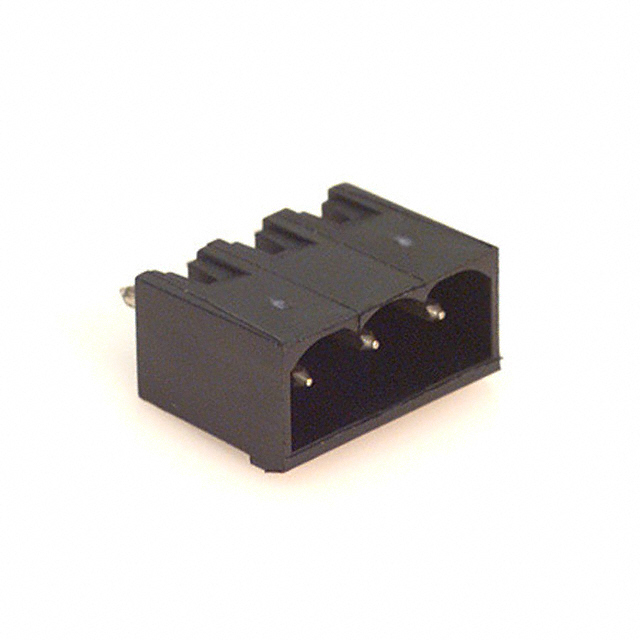

Molex 0398600503	Header Male Pins Shrouded (4 Side)	Polyamide (PA) Nylon	3	Brass			Through Hole	110 °C		0.2 in	5.08 mm			1	300 V	Tin	Solder		Black	0.47 in	11.94 mm	4.32 mm	0.17 in	Vertical
