PJC7400 Series
Manufacturer: Panjit International Inc.
Beta
⌘K

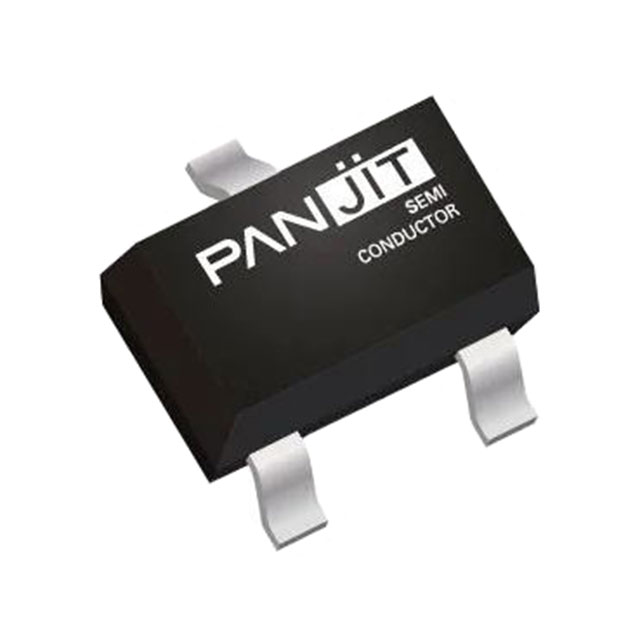

TRANSISTOR MOSFET N-CH 30V 1.9A 3-PIN SOT-323 T/R
| Part | Mounting Type | Vgs(th) (Max) @ Id | Vgs (Max) | Package / Case | Power Dissipation (Max) | Rds On (Max) @ Id, Vgs | Current - Continuous Drain (Id) @ 25°C | Operating Temperature [Max] | Operating Temperature [Min] | FET Type | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Supplier Device Package | Drive Voltage (Max Rds On, Min Rds On) | Technology | Input Capacitance (Ciss) (Max) @ Vds |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panjit International Inc. | Surface Mount | 1.2 V | 12 V | SC-70 SOT-323 | 350 mW | 70 mOhm | 1.9 A | 150 °C | -55 °C | N-Channel | 4.8 nC | 30 V | SOT-323 | 1.8 V 10 V | MOSFET (Metal Oxide) | 447 pF |
