HB16SKW01 Series

Catalog

PUSHBUTTON SWITCHES SPDT ON-ON SQUARE WHITE CAP .1A

Part	Mechanical Life	Electrical Life	Current Rating (Amps)	Circuit	Voltage Rating - AC	Termination Style	Type	Color - Actuator/Cap	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Switch Function	Mounting Type	Actuator Type	Actuator Marking	Illumination Type, Color	Illumination Voltage (Nominal)
NKK Switches HB16SKW01-E	100000 Cycles	50000 Cycles	100 mA	SPDT	30 V	Solder Lug	Standard	Yellow	30 V	-25 °C	70 °C	8 mm	On-On	Panel Mount Front	Button Square	No Marking

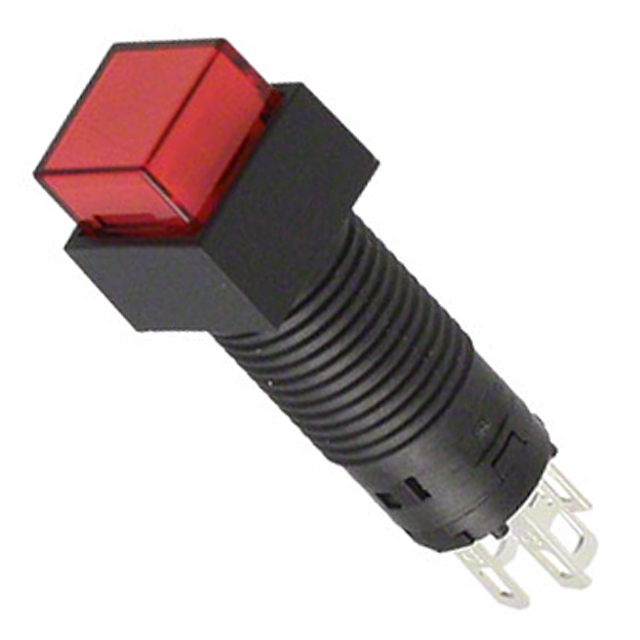

NKK Switches HB16SKW01-5C-CB	100000 Cycles	50000 Cycles	100 mA	SPDT	30 V	Solder Lug	Illuminated Standard	Red	30 V	-25 °C	50 °C	8 mm	On-On	Panel Mount Front	Button Square	No Marking	LED Red	2.1 VDC

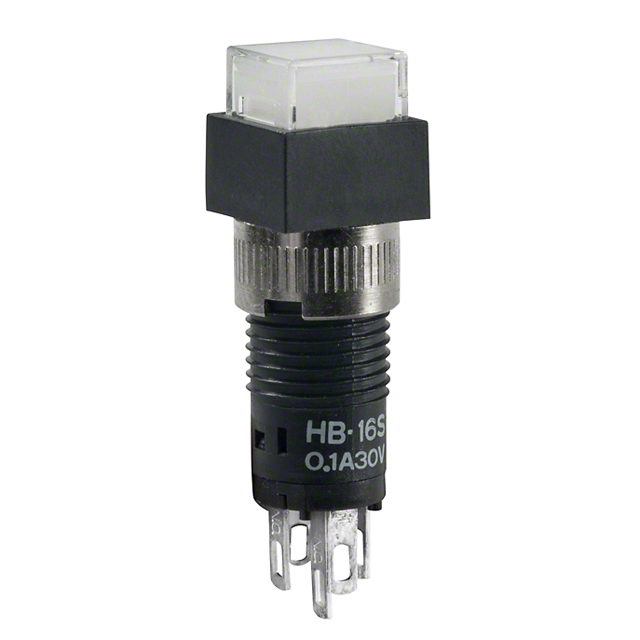

NKK Switches HB16SKW01-5D-JB	100000 Cycles	50000 Cycles	100 mA	SPDT	30 V	Solder Lug	Illuminated Standard	Clear	30 V	-25 °C	50 °C	8 mm	On-On	Panel Mount Front	Button Square	No Marking	Amber LED	2.05 VDC

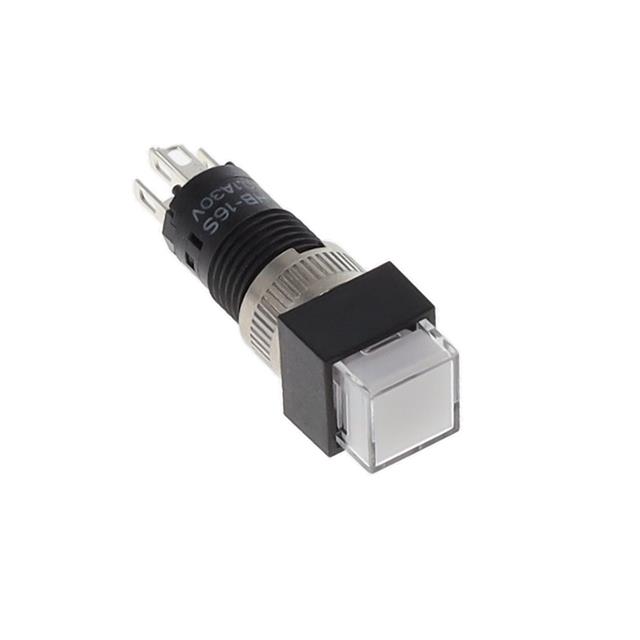

NKK Switches HB16SKW01-5C-JB	100000 Cycles	50000 Cycles	100 mA	SPDT	30 V	Solder Lug	Illuminated Standard	Clear	30 V	-25 °C	50 °C	8 mm	On-On	Panel Mount Front	Button Square	No Marking	LED Red	2.1 VDC
NKK Switches HB16SKW01-6F-JB	100000 Cycles	50000 Cycles	100 mA	SPDT	30 V	Solder Lug	Illuminated Standard	Clear	30 V	-25 °C	50 °C	8 mm	On-On	Panel Mount Front	Button Square	No Marking	Green LED	3.5 VDC

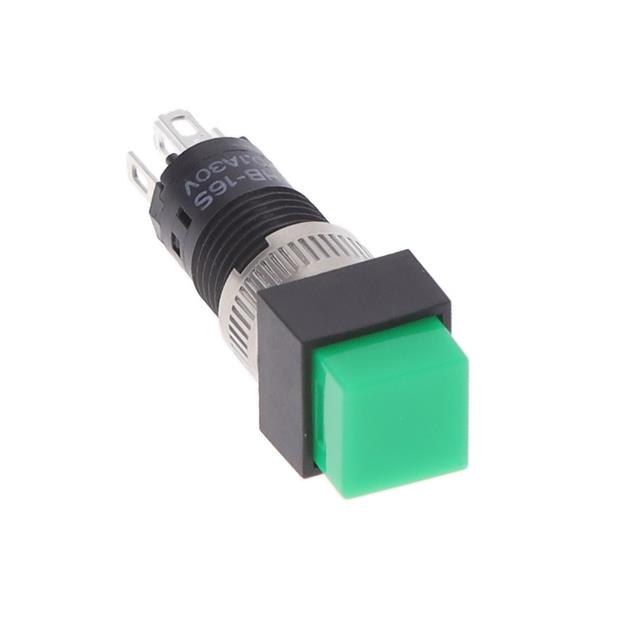

NKK Switches HB16SKW01-F	100000 Cycles	50000 Cycles	100 mA	SPDT	30 V	Solder Lug	Standard	Green	30 V	-25 °C	70 °C	8 mm	On-On	Panel Mount Front	Button Square	No Marking

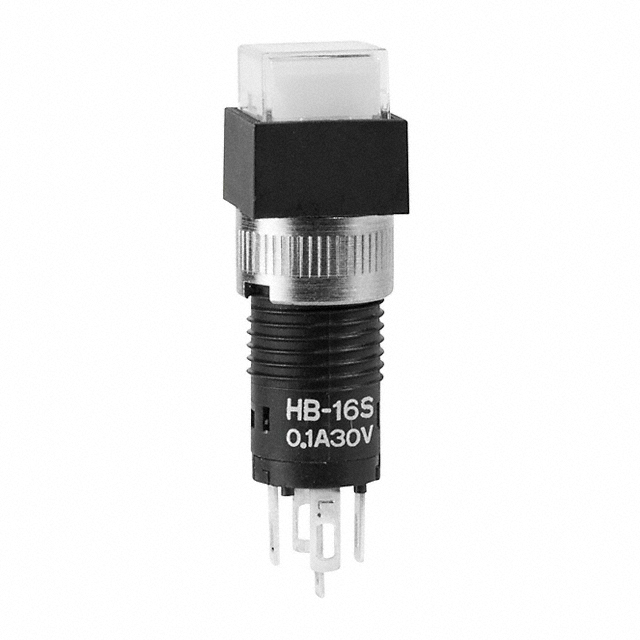

NKK Switches HB16SKW01-6B-JB	100000 Cycles	50000 Cycles	100 mA	SPDT	30 V	Solder Lug	Illuminated Standard	Clear	30 V	-25 °C	50 °C	8 mm	On-On	Panel Mount Front	Button Square	No Marking	LED White	3.3 VDC

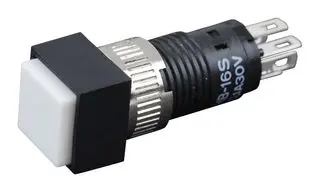

NKK Switches HB16SKW01-B	100000 Cycles	50000 Cycles	100 mA	SPDT	30 V	Solder Lug	Standard	White	30 V	-25 °C	70 °C	8 mm	On-On	Panel Mount Front	Button Square	No Marking
NKK Switches HB16SKW01-6G-JB	100000 Cycles	50000 Cycles	100 mA	SPDT	30 V	Solder Lug	Illuminated Standard	Clear	30 V	-25 °C	50 °C	8 mm	On-On	Panel Mount Front	Button Square	No Marking	Blue LED	3.6 VDC
NKK Switches HB16SKW01-C	100000 Cycles	50000 Cycles	100 mA	SPDT	30 V	Solder Lug	Standard	Red	30 V	-25 °C	70 °C	8 mm	On-On	Panel Mount Front	Button Square	No Marking
