PS2501AL-1 Series

DC Input Single

Manufacturer: Renesas Electronics Corporation

Catalog

DC Input Single

Part	Current - DC Forward (If) (Max) [Max]	Current Transfer Ratio (Max)	Package / Case	Current Transfer Ratio (Min) [Min]	Supplier Device Package	Output Type	Mounting Type	Current - Output / Channel	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Input Type	Vce Saturation (Max) [Max]	Voltage - Output (Max) [Max]	Voltage - Forward (Vf) (Typ)	Current Transfer Ratio (Max) [Max]	Package / Case	Package / Case
Renesas Electronics Corporation PS2501A-1-Q-A	30 mA	200 %	4-DIP (0.300" 7.62mm)	100 %	4-DIP	1.81 mOhm	Through Hole	30 mA	100 °C	-55 °C	1	5 µs	3 µs	DC	300 mV	70 V
Renesas Electronics Corporation PS2501L-1-F3-D-A	80 mA	300 %	4-SMD Gull Wing	100 %	4-SMD	1.81 mOhm	Surface Mount	50 mA	100 °C	-55 °C	1	5 µs	3 µs	DC	300 mV		1.17 V
Renesas Electronics Corporation PS2501AL-1-F3-W-A	30 mA	260 %	4-SMD Gull Wing	130 %	4-SMD	1.81 mOhm	Surface Mount	30 mA	100 °C	-55 °C	1	5 µs	3 µs	DC	300 mV	70 V
Renesas Electronics Corporation PS2501-1-H-A	80 mA		4-DIP (0.300" 7.62mm)	80 %	4-DIP	1.81 mOhm	Through Hole	50 mA	100 °C	-55 °C	1	5 µs	3 µs	DC	300 mV		1.17 V	160 %
Renesas Electronics Corporation PS2501L-1-Q-A	80 mA	200 %	4-SMD Gull Wing	100 %	4-SMD	1.81 mOhm	Surface Mount	50 mA	100 °C	-55 °C	1	5 µs	3 µs	DC	300 mV		1.17 V
Renesas Electronics Corporation PS2501A-1-W-A	30 mA	260 %	4-DIP (0.300" 7.62mm)	130 %	4-DIP	1.81 mOhm	Through Hole	30 mA	100 °C	-55 °C	1	5 µs	3 µs	DC	300 mV	70 V
Renesas Electronics Corporation PS2501AL-1-H-A	30 mA		4-SMD Gull Wing	80 %	4-SMD	1.81 mOhm	Surface Mount	30 mA	100 °C	-55 °C	1	5 µs	3 µs	DC	300 mV	70 V		160 %
Renesas Electronics Corporation PS2501L-1-F3-A	80 mA		4-SMD Gull Wing	80 %	4-SMD	1.81 mOhm	Surface Mount	50 mA	100 °C	-55 °C	1	5 µs	3 µs	DC	300 mV		1.17 V	600 %
Renesas Electronics Corporation PS2501-1-D-A	80 mA	300 %	4-DIP (0.300" 7.62mm)	100 %	4-DIP	1.81 mOhm	Through Hole	50 mA	100 °C	-55 °C	1	5 µs	3 µs	DC	300 mV		1.17 V
Renesas Electronics Corporation PS2501-4-A	80 mA		16-DIP	80 %	16-DIP	1.81 mOhm	Through Hole	50 mA	100 °C	-55 °C	4	5 µs	3 µs	DC	300 mV		1.17 V	600 %	0.3 in	7.62 mm

Catalog

DC Input Single

Description

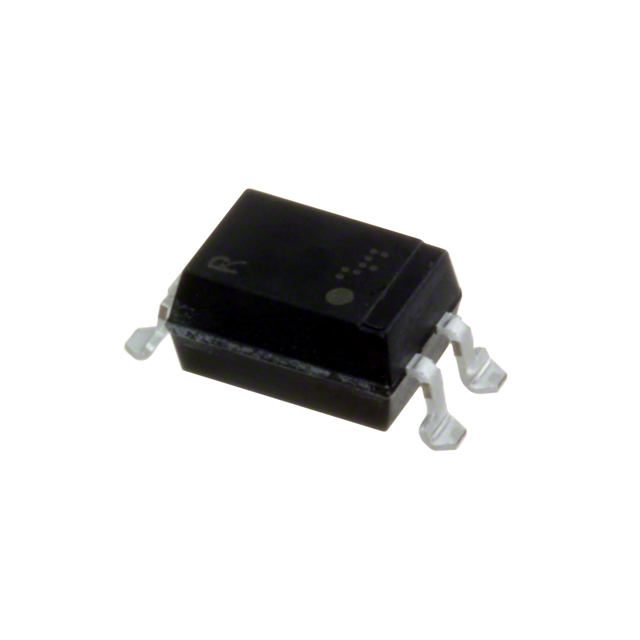

The PS2501-1, -4 and PS2501L-1, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor. The PS2501-1, -4 are in a plastic DIP (Dual In-line Package) and the PS2501L-1, -4 are lead bending type (Gullwing) for surface mount.
