LM2661 Series
Manufacturer: Texas Instruments
Beta
⌘K

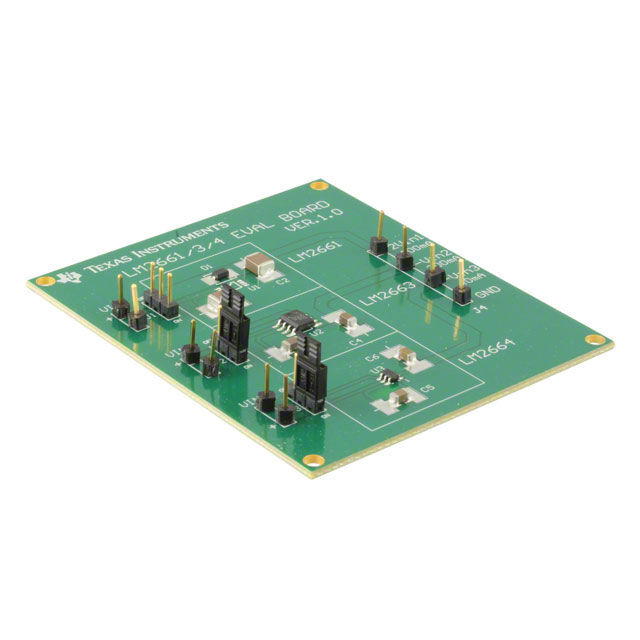

EVALUATION BOARD FOR LM2661/3/4
| Part | Utilized IC / Part | Main Purpose | Outputs and Type | Outputs and Type | Board Type | Supplied Contents | Voltage - Input [Max] | Voltage - Input [Min] | Regulator Topology | Output Configuration | Mounting Type | Number of Outputs | Output Type | Operating Temperature [Max] | Operating Temperature [Min] | Function | Package / Case | Package / Case [custom] | Package / Case | Frequency - Switching | Voltage - Input (Max) [Max] | Voltage - Output (Min/Fixed) | Voltage - Input (Min) [Min] | Synchronous Rectifier | Current - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | LM2661 LM2663 LM2664 | DC/DC Negative Inverter Voltage Doubler | Non-Isolated | 3 | Fully Populated | Board(s) | 5.5 V | 1.5 V | Boost Inverting | ||||||||||||||||
 Texas Instruments | Positive or Negative | Surface Mount | 1 | 1.81 mOhm | 85 °C | -40 °C | Ratiometric | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | 5 kHz 40 kHz | 5.5 V | -Vin 2Vin Vin/2 | 1.5 V | 100 mA | ||||||||||
Texas Instruments | Positive or Negative | Surface Mount | 1 | 1.81 mOhm | 85 °C | -40 °C | Ratiometric | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | 5 kHz 40 kHz | 5.5 V | -Vin 2Vin Vin/2 | 1.5 V | 100 mA |
