SM06F Series

Catalog

BOARD EDGE SMA(DC TO 26.5 GHZ),

Part	Center Contact Plating	Body Finish	Body Material	Frequency - Max [Max]	Mounting Type	Housing Color	Connector Style	Connector Type	Impedance	Number of Ports	Center Contact Material	Fastening Type	Shield Termination	Contact Termination

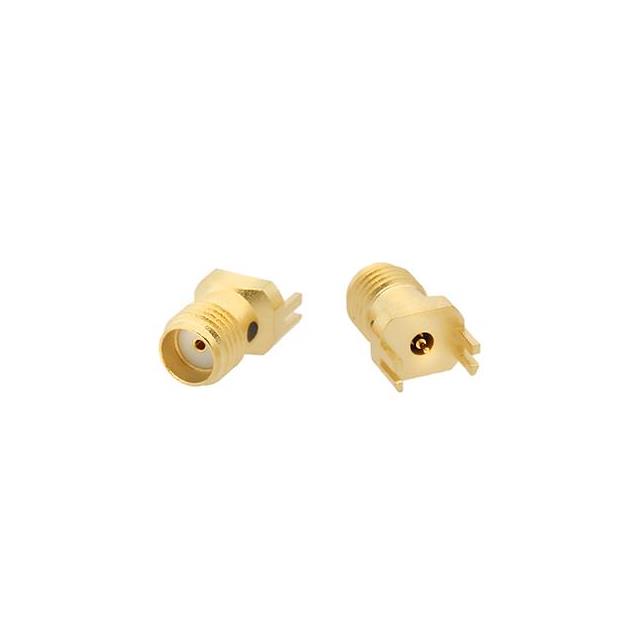

WITHWAVE CO LTD SM06FS006	Gold	Gold	Brass	26.5 GHz	Board Edge End Launch	Gold	SMA	Receptacle Female Socket	50 Ohms	1	Beryllium Copper	Threaded	Solder	Solder
WITHWAVE CO LTD SM06FS017	Gold	Gold	Brass	26.5 GHz	Board Edge End Launch	Gold	SMA	Receptacle Female Socket	50 Ohms	1	Beryllium Copper	Threaded	Solder	Solder
WITHWAVE CO LTD SM06FS015	Gold	Gold	Brass	26.5 GHz	Board Edge End Launch	Gold	SMA	Receptacle Female Socket	50 Ohms	1	Beryllium Copper	Threaded	Solder	Solder
WITHWAVE CO LTD SM06FS008	Gold	Gold	Brass	26.5 GHz	Board Edge End Launch	Gold	SMA	Receptacle Female Socket	50 Ohms	1	Beryllium Copper	Threaded	Solder	Solder
WITHWAVE CO LTD SM06FS010	Gold	Gold	Brass	26.5 GHz	Board Edge End Launch	Gold	SMA	Receptacle Female Socket	50 Ohms	1	Beryllium Copper	Threaded	Solder	Solder
WITHWAVE CO LTD SM06FS007	Gold	Gold	Brass	26.5 GHz	Board Edge End Launch	Gold	SMA	Receptacle Female Socket	50 Ohms	1	Beryllium Copper	Threaded	Solder	Solder
WITHWAVE CO LTD SM06FS013	Gold	Gold	Brass	26.5 GHz	Board Edge End Launch	Gold	SMA	Receptacle Female Socket	50 Ohms	1	Beryllium Copper	Threaded	Solder	Solder
WITHWAVE CO LTD SM06FS011	Gold	Gold	Brass	26.5 GHz	Board Edge End Launch	Gold	SMA	Receptacle Female Socket	50 Ohms	1	Beryllium Copper	Threaded	Solder	Solder
WITHWAVE CO LTD SM06FS014	Gold	Gold	Brass	26.5 GHz	Board Edge End Launch	Gold	SMA	Receptacle Female Socket	50 Ohms	1	Beryllium Copper	Threaded	Solder	Solder
WITHWAVE CO LTD SM06FS012	Gold	Gold	Brass	26.5 GHz	Board Edge End Launch	Gold	SMA	Receptacle Female Socket	50 Ohms	1	Beryllium Copper	Threaded	Solder	Solder
