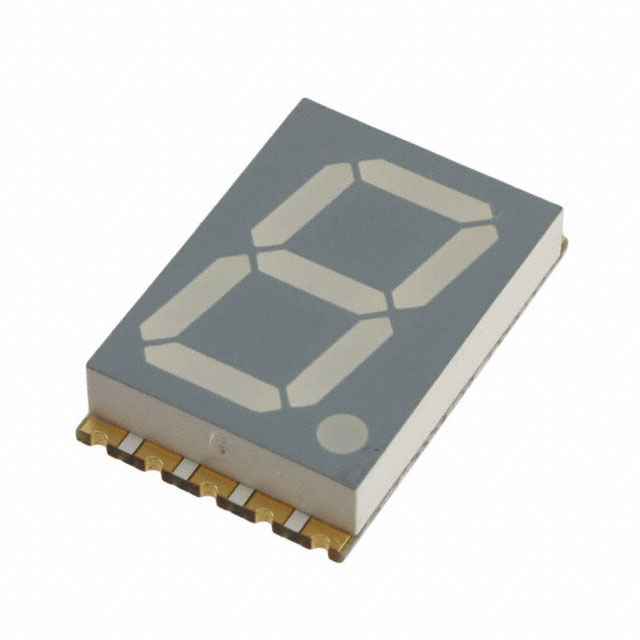

ACSA56 Series
Manufacturer: Kingbright
Beta
⌘K
DISPLAY 7SEG 0.56" SGL RED 10SMD
| Part | Power Dissipation (Max) [Max] | Common Pin | Display Type | Millicandela Rating | Number of Characters | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Current - Test | Color | Package / Case | Wavelength - Peak | Voltage - Forward (Vf) (Typ) | Digit/Alpha Size | Digit/Alpha Size | Power Dissipation (Max) | Size / Dimension [x] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

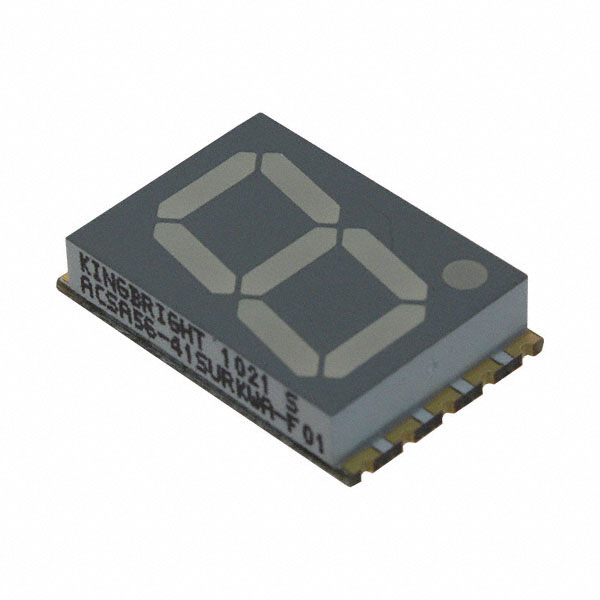

 Kingbright | 75 mw | Common Anode | 7-Segment | 44 mcd | 1 | 3.75 mm 17 mm | 12.4 mm | 0.148 in 0.669 " | 0.488 " | 20 mA | Red | 10-SMD No Lead | 650 nm | 1.95 V | 0.56 in | 14.22 mm | |||
 Kingbright | 75 mw | Common Anode | 7-Segment | 26 mcd | 1 | 3.75 mm 17 mm | 12.4 mm | 0.148 in 0.669 " | 0.488 " | 20 mA | Red | 10-SMD No Lead | 660 nm | 1.85 V | 0.56 in | 14.22 mm | |||
 Kingbright | 75 mw | Common Anode | 7-Segment | 76 mcd | 1 | 3.75 mm 17 mm | 12.4 mm | 0.148 in 0.669 " | 0.488 " | 20 mA | Yellow | 10-SMD No Lead | 590 nm | 2 V | 0.56 in | 14.22 mm | |||
Kingbright | 75 mw | Common Anode | 7-Segment | 78 mcd | 1 | 3.75 mm 17 mm | 12.4 mm | 0.148 in 0.669 " | 0.488 " | 20 mA | 10-SMD No Lead | 610 nm | 2.1 V | 0.56 in | 14.22 mm | ||||

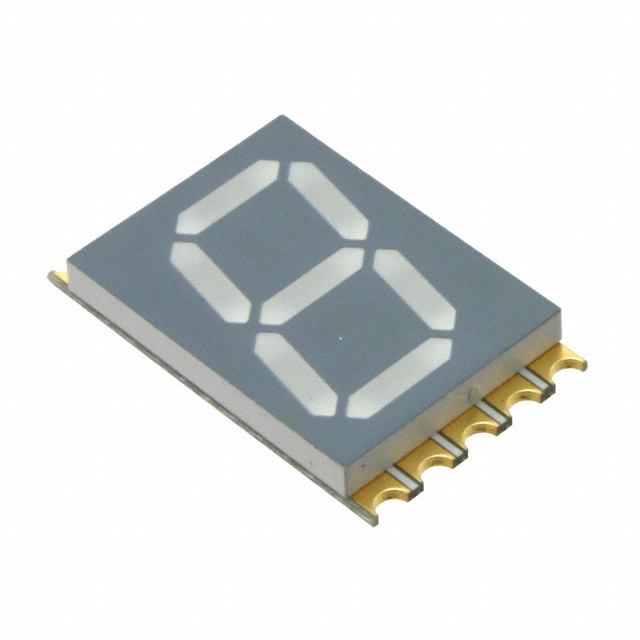

Kingbright | Common Anode | 7-Segment | 15 mcd | 1 | 3.75 mm 17 mm | 12.4 mm | 0.148 in 0.669 " | 0.488 " | 20 mA | Blue | 10-SMD No Lead | 468 nm | 3.3 V | 0.56 in | 14.22 mm | 120 mW | |||

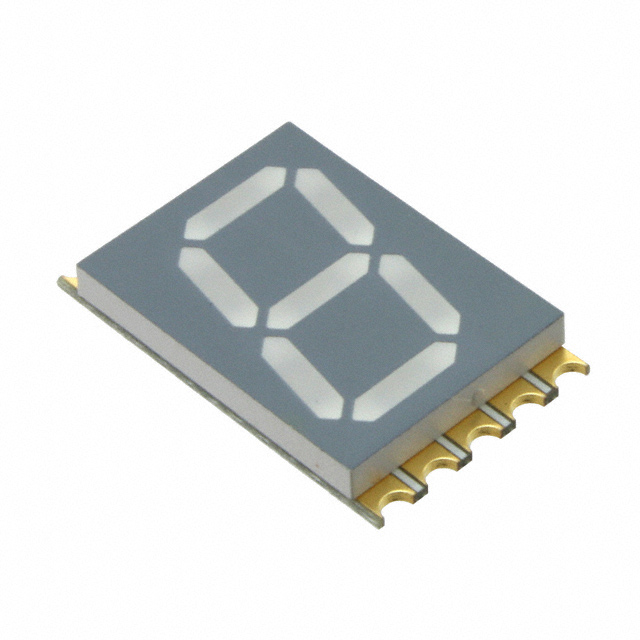

 Kingbright | Common Anode | 7-Segment | 160 mcd | 1 | 3.75 mm 17 mm | 12.4 mm | 0.148 in 0.669 " | 0.488 " | 10 mA 20 mA | Green | 10-SMD No Lead | 515 nm | 3.3 V | 0.56 in | 14.22 mm | 102.5 mW | |||

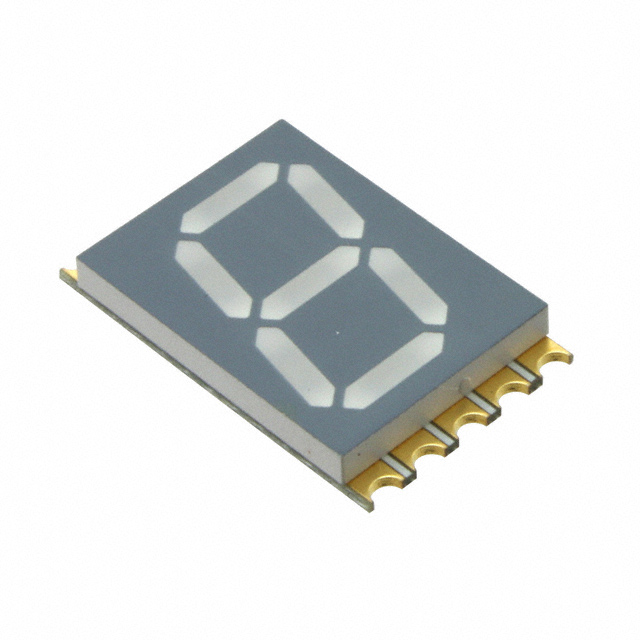

 Kingbright | 75 mw | Common Anode | 7-Segment | 26 mcd | 1 | 2.4 mm | 12.5 mm | 0.094 " | 0.492 " | 20 mA | Green | 10-SMD No Lead | 2.1 V | 0.56 in | 14.22 mm | 0.669 in | 17 mm | ||

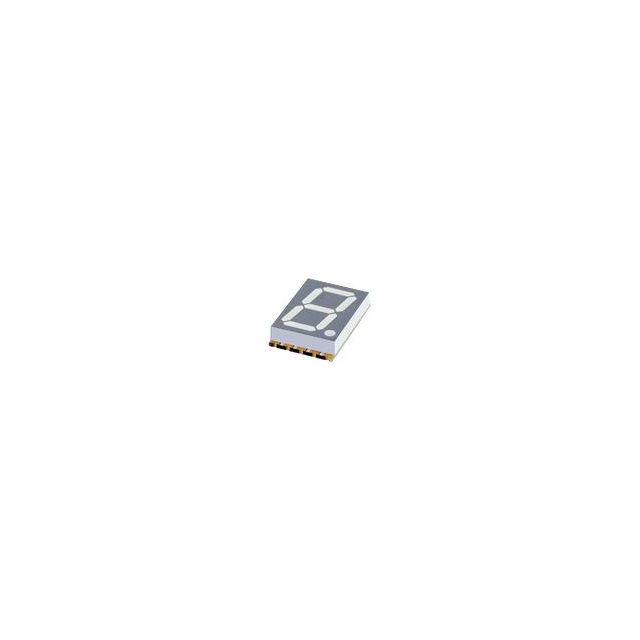

 Kingbright | Common Anode | 7-Segment | 4 mcd | 1 | 2.4 mm | 12.5 mm | 0.094 " | 0.492 " | 20 mA | Blue | 10-SMD No Lead | 468 nm | 3.2 V | 0.56 in | 14.22 mm | 120 mW | 0.669 in | 17 mm | |
 Kingbright | 75 mw | Common Anode | 7-Segment | 117 mcd | 1 | 2.4 mm | 12.5 mm | 0.094 " | 0.492 " | 20 mA | Yellow | 10-SMD No Lead | 590 nm | 2 V | 0.56 in | 14.22 mm | 0.669 in | 17 mm | |
Kingbright | Common Anode | 7-Segment | 9 mcd | 1 | 2.95 mm | 12.4 mm | 0.116 " | 0.488 " | 20 mA | Blue | 10-SMD No Lead | 468 nm | 3.2 V | 0.56 in | 14.2 mm | 120 mW | 0.748 in | 19 mm |
