PAT-20 Series

Catalog

FIBER OPTIC CBL SC-SC DUPLEX 20M

Part	Color - Connectors	Return Loss	Color - Cable	Operating Temperature (Min)	Operating Temperature (Max)	Insertion Loss	Cable Diameter	Type	1st Connector	Features	Cable Type	Fiber Core Diameter	Fiber Cladding Diameter	Ratings	Length - Overall	2nd Connector	Return Loss
FiberSource, Inc PAT-20-CC-B-20-D-9	Blue	55 dB	Yellow	-40 °C	85 °C	0.3 dB	0.08 "	Duplex Singlemode	SC Duplex	Low Smoke	Bend Insensitive Fiber (BIF)	9 µm	125 µm	LSZH	65.6 ft	SC Duplex
FiberSource, Inc PAT-20-HC-B-20-D-9	Blue	55 dB	Yellow	-40 °C	85 °C	0.3 dB	0.08 "	Duplex Singlemode	LC Duplex	Low Smoke	Bend Insensitive Fiber (BIF)	9 µm	125 µm	LSZH	65.6 ft	SC Duplex
FiberSource, Inc PAT-20-JH-B-20-S-9		55 dB 65 dB	Yellow	-40 °C	85 °C	0.2 dB	0.08 "	Simplex Singlemode	LC/APC	Low Smoke	Bend Insensitive Fiber (BIF)	9 µm	125 µm	LSZH	65.6 ft	LC/UPC	55dB 65dB
FiberSource, Inc PAT-20-DD-B-20-D-9	Blue	65 dB	Yellow	-40 °C	85 °C	0.3 dB	0.08 "	Duplex Singlemode	SC Duplex	Low Smoke	Bend Insensitive Fiber (BIF)	9 µm	125 µm	LSZH	65.6 ft	SC Duplex
FiberSource, Inc PAT-20-DC-B-20-D-9	Blue	65 dB	Yellow	-40 °C	85 °C	0.3 dB	0.08 "	Duplex Singlemode	SC/APC	Low Smoke	Bend Insensitive Fiber (BIF)	9 µm	125 µm	LSZH	65.6 ft	SC/UPC
FiberSource, Inc PAT-20-HH-B-20-D-9	Blue	55 dB	Yellow	-40 °C	85 °C	0.3 dB	0.08 "	Duplex Singlemode	LC Duplex	Low Smoke	Bend Insensitive Fiber (BIF)	9 µm	125 µm	LSZH	65.6 ft	LC Duplex
FiberSource, Inc PAT-20-NN-F-20-D-A	Blue		Aqua	-40 °C	85 °C		0.08 "	Duplex Multimode OM3	LC Duplex			50 µm	125 µm		65.6 ft	LC Duplex
FiberSource, Inc PAT-20-DD-B-20-S-9		55 dB 65 dB	Yellow	-40 °C	85 °C	0.2 dB	0.08 "	Simplex Singlemode	SC/APC	Low Smoke	Bend Insensitive Fiber (BIF)	9 µm	125 µm	LSZH	65.6 ft	SC/APC	55dB 65dB
FiberSource, Inc PAT-20-HD-B-20-D-9	Blue	65 dB	Yellow	-40 °C	85 °C	0.3 dB	0.08 "	Duplex Singlemode	LC/UPC	Low Smoke	Bend Insensitive Fiber (BIF)	9 µm	125 µm	LSZH	65.6 ft	SC/APC

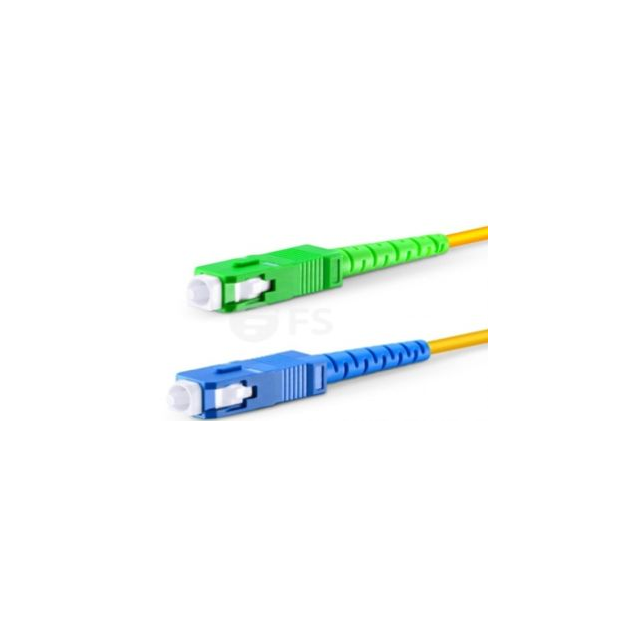

FiberSource, Inc PAT-20-DC-B-30-S-9		55 dB 65 dB	Yellow	-40 °C	85 °C	0.2 dB	0.12 "	Simplex Singlemode	SC/APC	Low Smoke	Bend Insensitive Fiber (BIF)	9 µm	125 µm	LSZH	65.6 ft	SC/UPC	55dB 65dB
