99S20D Series
Manufacturer: Rosenberger
Beta
⌘K

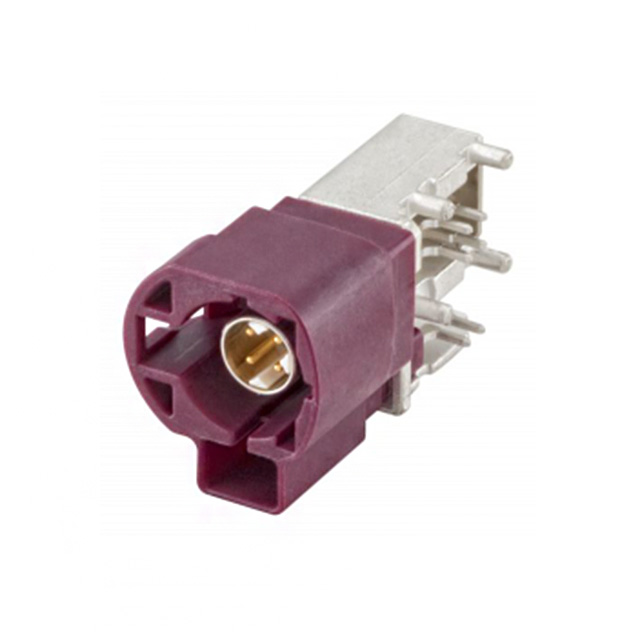

CONN HSD FAKRA PLUG R/A 100OHM
| Part | Body Material | Dielectric Material | Voltage Rating | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Mating Cycles | Housing Color | Number of Ports | Mounting Type | Frequency - Max [Max] | Connector Style | Center Contact Material | Shield Termination | Contact Termination | Impedance | Fastening Type | Connector Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Brass | Liquid Crystal Polymer (LCP) | 100 V | Gold | -40 C | 105 ░C | Nickel | 25 | White | 1 | Right Angle Through Hole | 2 GHz | Fakra HSD® Quadraxial | Bronze | Solder | Solder | 100 Ohms | Latch Lock | Plug Male Pin | |
 Rosenberger | Brass | Liquid Crystal Polymer (LCP) | 100 V | Gold | -40 C | 105 ░C | Nickel | 25 | Bordeaux Violet | 1 | Right Angle Through Hole | 2 GHz | Fakra HSD® Quadraxial | Bronze | Solder | Solder | 100 Ohms | Latch Lock | Plug Male Pin | Code D Rectangular 2 Pos Connector |
