8PM-11 Series

Manufacturer: Preci-Dip

Catalog

CONN SPRING PISTON 5POS R/A SMD

Part	Number of Rows	Contact Finish	Material	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Contacts	Pitch	Pitch	Connector Type
Preci-Dip 8PM-11-0005-02-131191	1	Gold	Brass	Right Angle Surface Mount	0.25 Ám	10 Áin	5	0.1 "	2.54 mm	Piston
Preci-Dip 8PM-11-0006-02-260	1	Gold	Brass	Right Angle Surface Mount	0.25 Ám	10 Áin	6	0.1 "	2.54 mm	Piston
Preci-Dip 8PM-11-0006-02-131191	1	Gold	Brass	Right Angle Surface Mount	0.25 Ám	10 Áin	6	0.1 "	2.54 mm	Piston
Preci-Dip 8PM-11-0005-02-260	1	Gold	Brass	Right Angle Surface Mount	0.25 Ám	10 Áin	5	0.1 "	2.54 mm	Piston
Preci-Dip 8PM-11-0008-02-131	1	Gold	Brass	Right Angle Surface Mount	0.25 Ám	10 Áin	8	0.1 "	2.54 mm	Piston
Preci-Dip 8PM-11-0008-02-131191	1	Gold	Brass	Right Angle Surface Mount	0.25 Ám	10 Áin	8	0.1 "	2.54 mm	Piston
Preci-Dip 8PM-11-0004-02-260191	1	Gold	Brass	Right Angle Surface Mount	0.25 Ám	10 Áin	4	0.1 "	2.54 mm	Piston

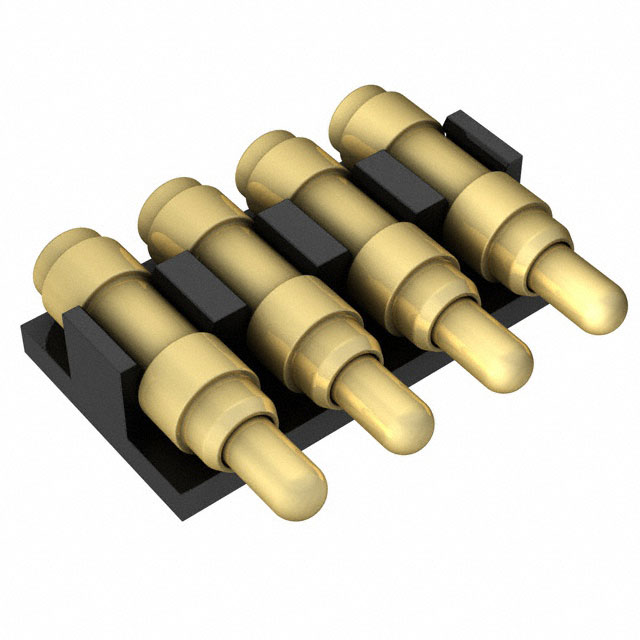

Preci-Dip 8PM-11-0004-02-260	1	Gold	Brass	Right Angle Surface Mount	0.25 Ám	10 Áin	4	0.1 "	2.54 mm	Piston
Preci-Dip 8PM-11-0006-02-131	1	Gold	Brass	Right Angle Surface Mount	0.25 Ám	10 Áin	6	0.1 "	2.54 mm	Piston

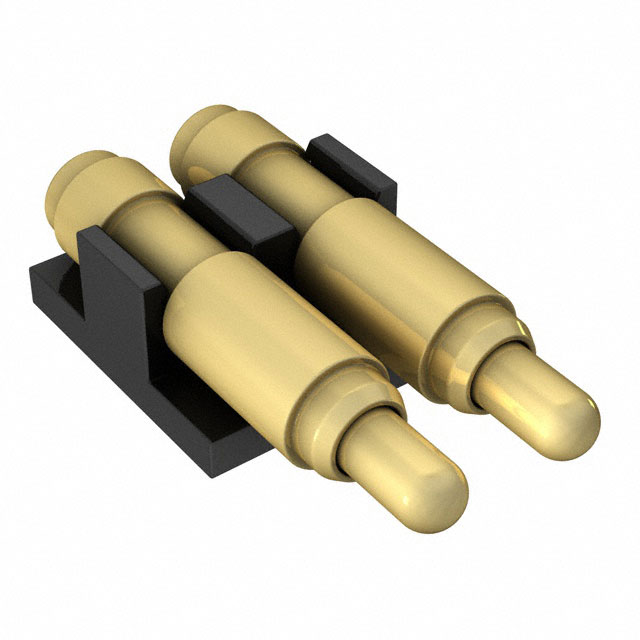

Preci-Dip 8PM-11-0002-02-131	1	Gold	Brass	Right Angle Surface Mount	0.25 Ám	10 Áin	2	0.1 "	2.54 mm	Piston
