C1DXG-2 Series

Catalog

IDC CABLE - CKR20G/AE20M/X

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Length	Length	Cable Termination	Contact Finish	Features	Number of Rows [custom]	Connector Type	Shielding	Color

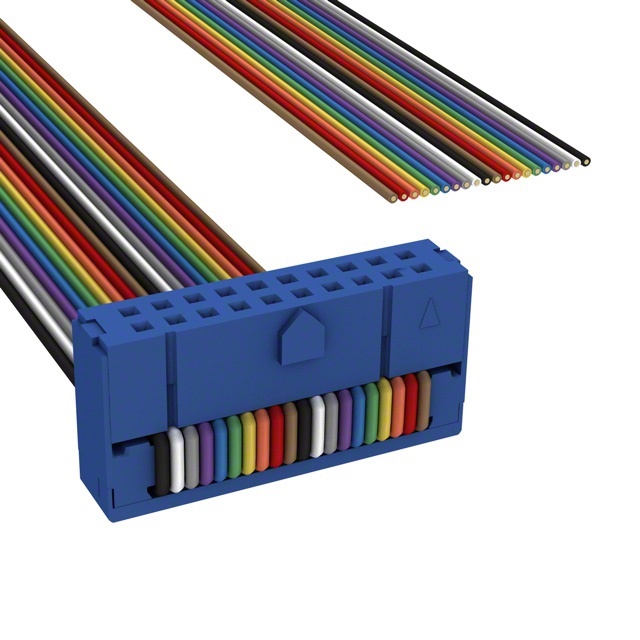

CW Industries C1DXG-2036M	0.25 Ám	10 Áin	20	0.05 in	1.27 mm	0.1 in	2.54 mm	91.44 cm	3 ft	IDC	Gold	Polarizing Key Strain Relief	2	Socket to Cable	Unshielded	Multiple Ribbon

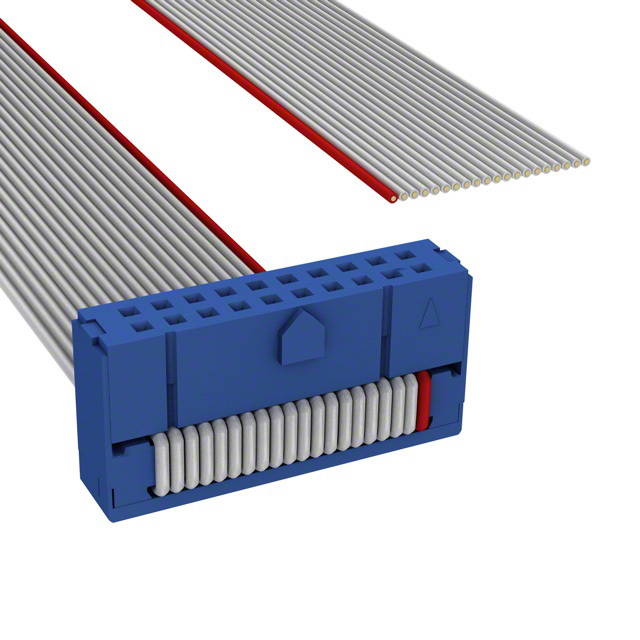

CW Industries C1DXG-2036G	0.25 Ám	10 Áin	20	0.05 in	1.27 mm	0.1 in	2.54 mm	91.44 cm	3 ft	IDC	Gold	Polarizing Key Strain Relief	2	Socket to Cable	Unshielded

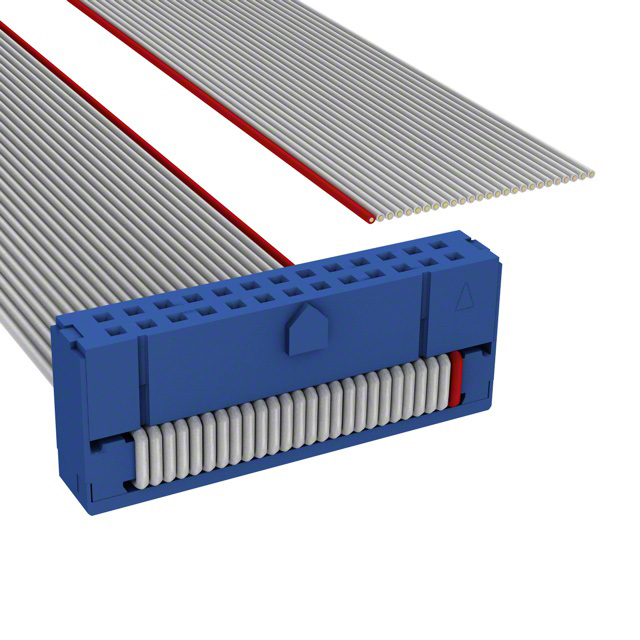

CW Industries C1DXG-2636G	0.25 Ám	10 Áin	26	0.05 in	1.27 mm	0.1 in	2.54 mm	91.44 cm	3 ft	IDC	Gold	Polarizing Key Strain Relief	2	Socket to Cable	Unshielded
CW Industries C1DXG-2636M	0.25 Ám	10 Áin	26	0.05 in	1.27 mm	0.1 in	2.54 mm	91.44 cm	3 ft	IDC	Gold	Polarizing Key Strain Relief	2	Socket to Cable	Unshielded	Multiple Ribbon
