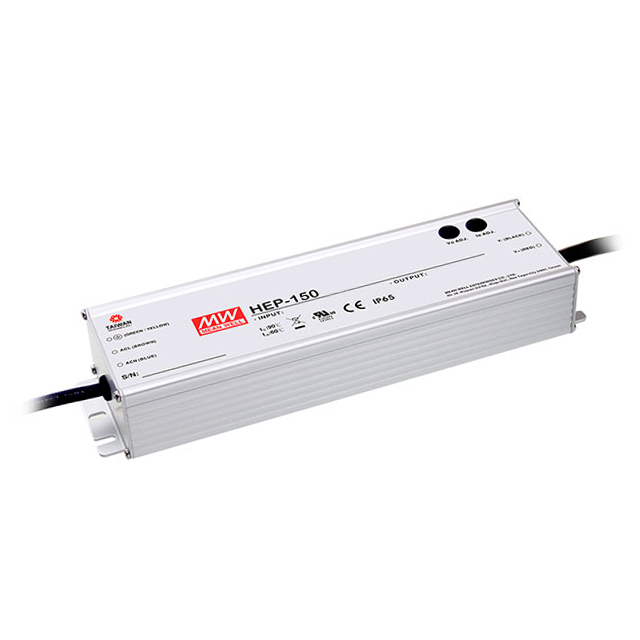

HEP-150 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 54V 151W
| Part | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Mounting Type | Applications | Power (Watts) | Current - Output 1 | Approval Agency | Type | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Isolation | Efficiency | Voltage - Output 1 | Features | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 8.98 " | 228 mm | 68 mm | 1.53 in | 2.68 in | 38.8 mm | Chassis Mount | ITE (Commercial) | 151 W | 2.8 A | CB CE cURus | Enclosed | 90 VAC 127 VDC | 305 VAC 431 VDC | 3750 VDC | 94 % | 54 V | Adjustable Output IP65 PFC | 70 °C | -55 °C | 1 |
MEAN WELL USA Inc. | 8.98 " | 228 mm | 68 mm | 1.53 in | 2.68 in | 38.8 mm | Chassis Mount | ITE (Commercial) | 150 W | 12.5 A | CB CE cURus | Enclosed | 90 VAC 127 VDC | 305 VAC 431 VDC | 3750 VDC | 91.5 % | 12 V | Adjustable Output IP65 PFC | 70 °C | -55 °C | 1 |
MEAN WELL USA Inc. | 8.98 " | 228 mm | 68 mm | 1.53 in | 2.68 in | 38.8 mm | Chassis Mount | ITE (Commercial) | 154 W | 3.2 A | CB CE cURus | Enclosed | 90 VAC 127 VDC | 305 VAC 431 VDC | 3750 VDC | 94 % | 48 V | Adjustable Output IP65 PFC | 70 °C | -55 °C | 1 |
MEAN WELL USA Inc. | 8.98 " | 228 mm | 68 mm | 1.53 in | 2.68 in | 38.8 mm | Chassis Mount | ITE (Commercial) | 151 W | 6.3 A | CB CE cURus | Enclosed | 90 VAC 127 VDC | 305 VAC 431 VDC | 3750 VDC | 93 % | 24 V | Adjustable Output IP65 PFC | 70 °C | -55 °C | 1 |
MEAN WELL USA Inc. | 8.98 " | 228 mm | 68 mm | 1.53 in | 2.68 in | 38.8 mm | Chassis Mount | ITE (Commercial) | 150 W | 10 A | CB CE cURus | Enclosed | 85 VAC 120 VDC | 264 VAC 370 VDC | 3750 VDC | 92 % | 15 V | Adjustable Output IP65 PFC | 70 °C | -55 °C | 1 |
