45140 Series
Manufacturer: 3M (TC)
Beta
⌘K
40P SKT CP AND FL AU FLASH
| Part | Fastening Type | Wire Type | Mounting Type | Connector Type | Contact Type | Contact Finish | Features | Pitch [x] | Pitch [x] | Number of Positions | Row Spacing | Row Spacing | Number of Rows | Cable Termination | Wire Gauge | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

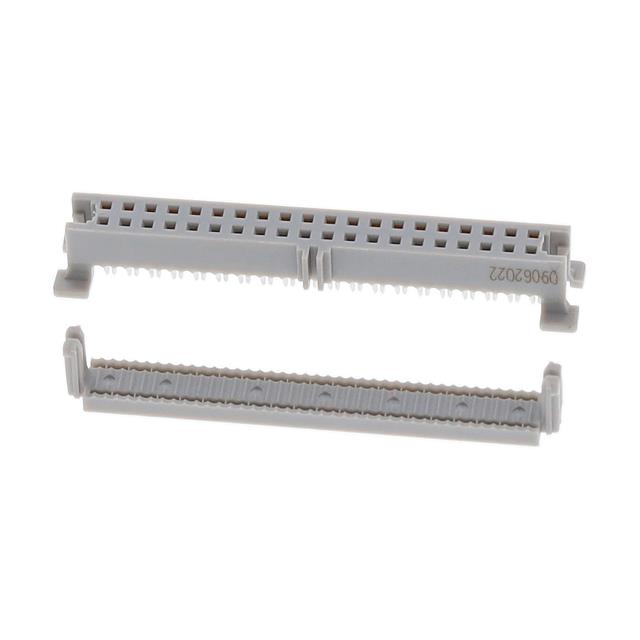

 3M (TC) | Friction Lock | Ribbon Cable | Free Hanging (In-Line) | Receptacle | Female Socket | Gold | Feed Through Polarizing Key | 0.05 in | 1.27 mm | 40 | 1.27 mm | 0.05 in | 2 | IDC | 30 AWG | Flash | ||

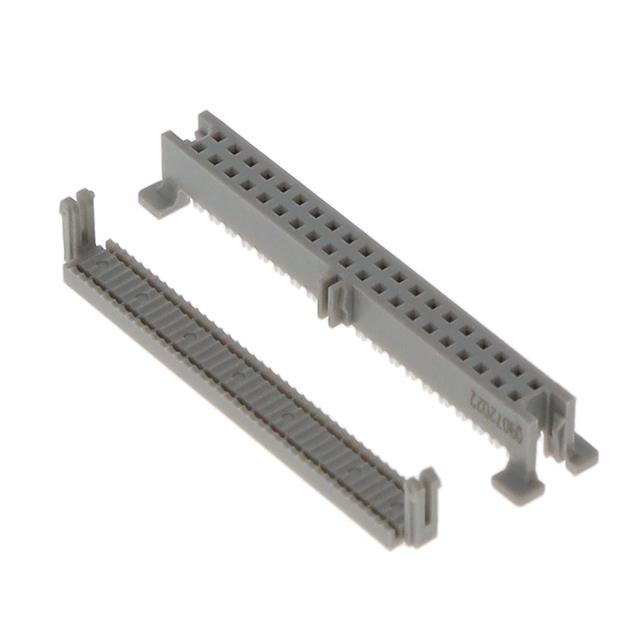

 3M (TC) | Ribbon Cable | Free Hanging (In-Line) | Receptacle | Female Socket | Gold | Feed Through | 0.05 in | 1.27 mm | 40 | 1.27 mm | 0.05 in | 2 | IDC | 30 AWG | 0.76 Ám | 30 Áin | ||

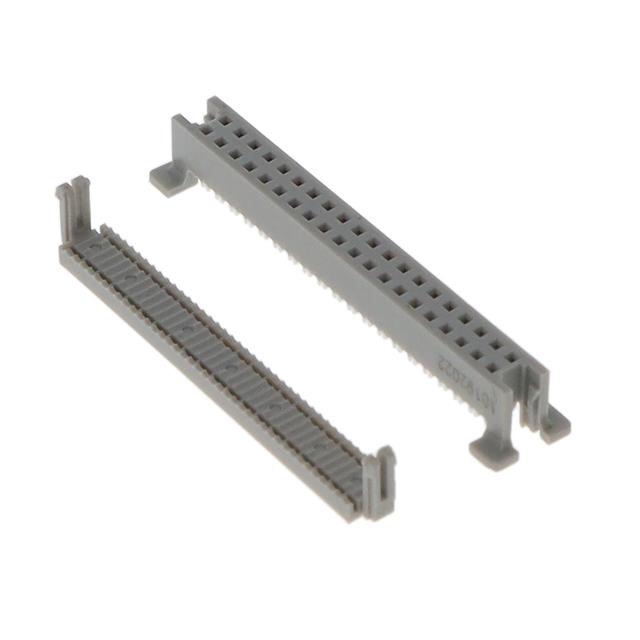

 3M (TC) | Ribbon Cable | Free Hanging (In-Line) | Receptacle | Female Socket | Gold | Feed Through | 0.05 in | 1.27 mm | 40 | 1.27 mm | 0.05 in | 2 | IDC | 30 AWG | Flash | |||

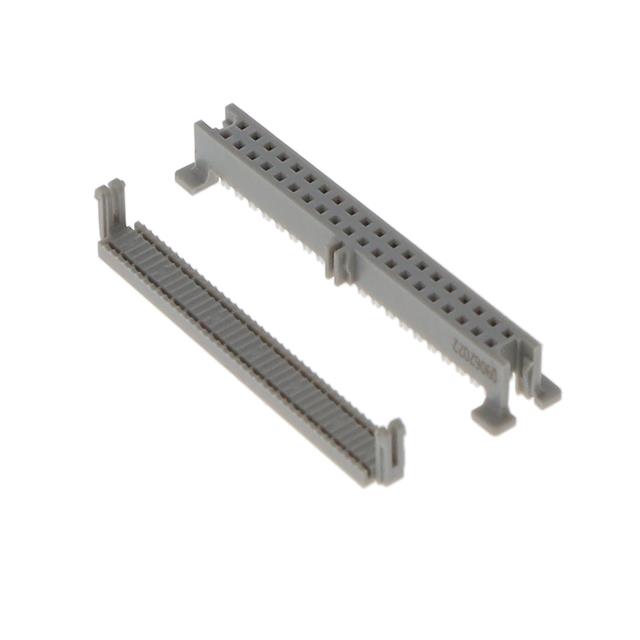

 3M (TC) | Friction Lock | Ribbon Cable | Free Hanging (In-Line) | Receptacle | Female Socket | Gold | Feed Through Polarizing Key | 0.05 in | 1.27 mm | 40 | 1.27 mm | 0.05 in | 2 | IDC | 30 AWG | 0.76 Ám | 30 Áin | |

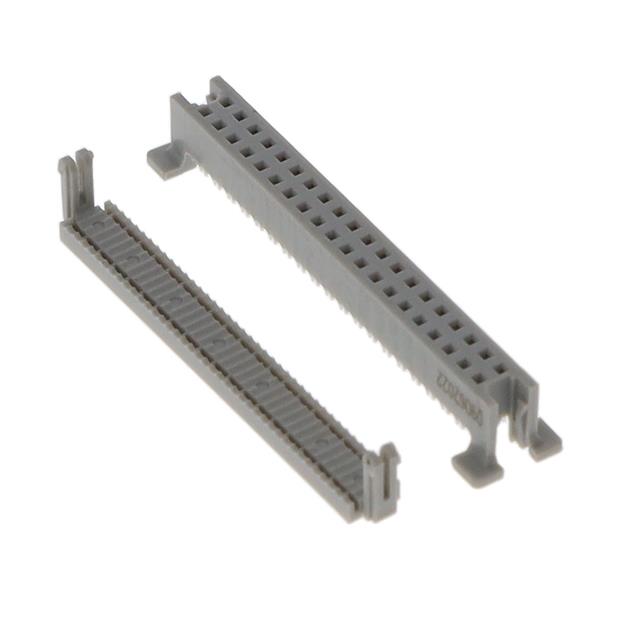

 3M (TC) | Ribbon Cable | Free Hanging (In-Line) | Receptacle | Female Socket | Gold | Feed Through Polarizing Key | 0.05 in | 1.27 mm | 40 | 1.27 mm | 0.05 in | 2 | IDC | 30 AWG | Flash |
