PT6302 Series

Catalog

DC DC CONVERTER 5V

Part	Package / Case	Mounting Type	Current - Output (Max) [Max]	Efficiency	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Type	Number of Outputs	Applications	Voltage - Input (Max) [Max]
Texas Instruments PT6302N	12-SIP Module	Through Hole	3 A	89 %	5 V	85 °C	-40 °C	9 V	Non-Isolated PoL Module	1	ITE (Commercial)	38 V
Texas Instruments PT6302C	12-SIP SMD Module	Surface Mount	3 A	89 %	5 V	85 °C	-40 °C	9 V	Non-Isolated PoL Module	1	ITE (Commercial)	38 V
Texas Instruments PT6302BT	12-SIP SMD Module	Surface Mount	3 A	89 %	5 V	85 °C	-40 °C	9 V	Non-Isolated PoL Module	1	ITE (Commercial)	38 V
Texas Instruments PT6302G	12-SIP Module	Through Hole Right Angle	3 A	89 %	5 V	85 °C	-40 °C	9 V	Non-Isolated PoL Module	1	ITE (Commercial)	38 V
Texas Instruments PT6302S	12-SIP Module	Through Hole	3 A	89 %	5 V	85 °C	-40 °C	9 V	Non-Isolated PoL Module	1	ITE (Commercial)	38 V
Texas Instruments PT6302R	12-SIP Module	Through Hole	3 A	89 %	5 V	85 °C	-40 °C	9 V	Non-Isolated PoL Module	1	ITE (Commercial)	38 V

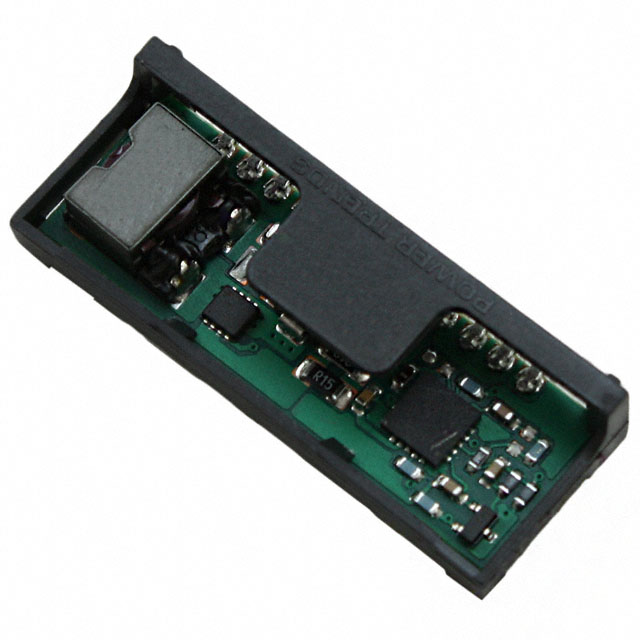

Texas Instruments PT6302A	12-SIP Module	Through Hole Right Angle	3 A	89 %	5 V	85 °C	-40 °C	9 V	Non-Isolated PoL Module	1	ITE (Commercial)	38 V
