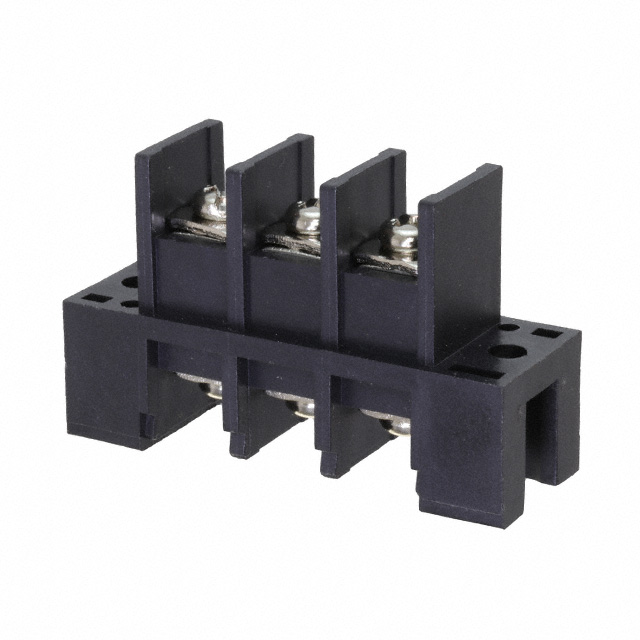

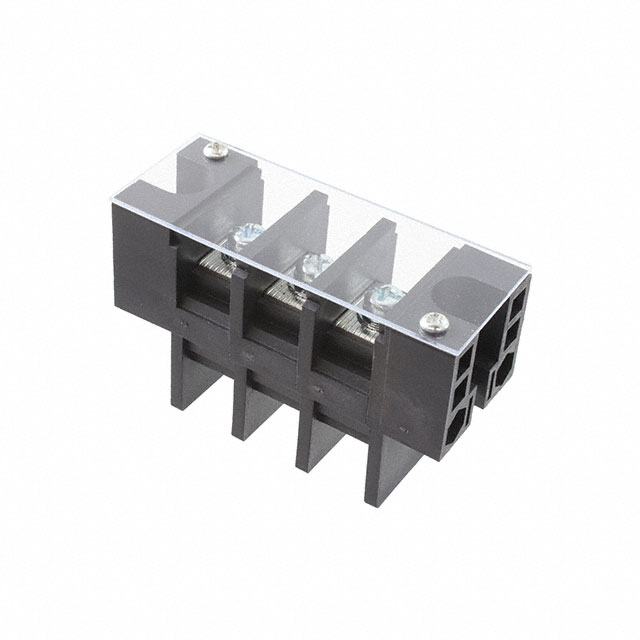

TBU-03 Series
Manufacturer: Adam Tech
Beta
⌘K
TERMINAL BLOCK, 3 POSITION
| Part | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Terminal Screw Finish | Material Flammability Rating | Terminal Screw Material | Barrier Type | Voltage Rating | Terminal Block Type | Number of Wire Entries | Current Rating (Amps) | Pitch | Pitch | Features | Color | Number of Rows | Wire Gauge [Max] | Wire Gauge [Min] | Number of Circuits | Bottom Termination | Top Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Polybutylene Terephthalate (PBT) | 130 °C | -40 C | Chassis Panel | Nickel | UL94 V-0 | Steel | 2 Wall (Dual) | 600 V | Barrier Block | 3 | 65 A | 16 mm | 0.63 in | Flange | Black | 1 | 14 AWG | 6 AWG | 3 | Screw | Screws |
 Adam Tech | Polybutylene Terephthalate (PBT) | 130 °C | -40 C | Chassis Panel | Nickel | UL94 V-0 | Steel | 2 Wall (Dual) | 600 V | Barrier Block | 3 | 65 A | 16 mm | 0.63 in | Flange | Black | 1 | 14 AWG | 6 AWG | 3 | Screw | Screws |
 Adam Tech | Polybutylene Terephthalate (PBT) | 130 °C | -40 C | Chassis Panel | UL94 V-0 | Steel | 2 Wall (Dual) | 300 VDC | Barrier Block | 3 | 30 A | 11 mm | 0.433 in | Flange | Black | 1 | 22 AWG | 10 AWG | 3 | Screw | Screws with Captive Plate |
