530340 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

CONN RCPT 40POS 0.1 GOLD PCB

Part	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Insulation Height	Insulation Height	Insulation Material	Contact Shape	Features	Connector Type	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Contact Type	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Termination	Number of Rows

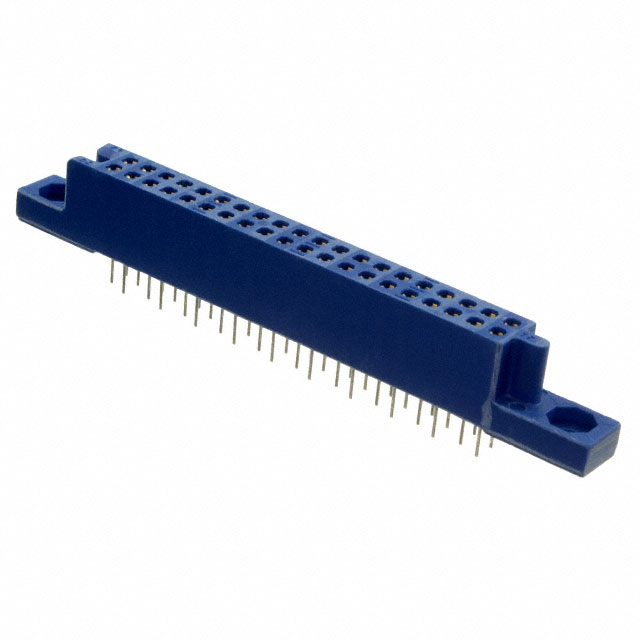

TE Connectivity Aerospace, Defense and Marine 530340-2	Push-Pull	0.156 in	3.96 mm	2.54 µm	100 µin	Blue	0.1 in	2.54 mm	All	0.4 in	10.16 mm	Diallyl Phthalate (DAP)	Square	Mating Guide	Receptacle	Gold	2.54 mm	0.1 in	Through Hole	Female Socket	Tin-Lead	1.27 µm	50 µin	40	Solder	2
TE Connectivity Aerospace, Defense and Marine 530340-5	Push-Pull	0.156 in	3.96 mm	2.54 µm	100 µin	Blue	0.1 in	2.54 mm	All	0.4 in	10.16 mm	Diallyl Phthalate (DAP)	Square	Mating Guide	Receptacle	Gold	2.54 mm	0.1 in	Through Hole	Female Socket	Tin-Lead	1.27 µm	50 µin	70	Solder	2
TE Connectivity Aerospace, Defense and Marine 530340-1	Push-Pull	0.156 in	3.96 mm	2.54 µm	100 µin	Blue	0.1 in	2.54 mm	All	0.4 in	10.16 mm	Diallyl Phthalate (DAP)	Square	Mating Guide	Receptacle	Gold	2.54 mm	0.1 in	Through Hole	Female Socket	Tin-Lead	1.27 µm	50 µin	30	Solder	2
TE Connectivity Aerospace, Defense and Marine 530340-9	Push-Pull	0.156 in	3.96 mm	2.54 µm	100 µin	Blue	0.1 in	2.54 mm	All	0.4 in	10.16 mm	Diallyl Phthalate (DAP)	Square	Mating Guide	Receptacle	Gold	2.54 mm	0.1 in	Through Hole	Female Socket	Tin-Lead	1.27 µm	50 µin	110 positions	Solder	2
TE Connectivity Aerospace, Defense and Marine 2-530340-2	Push-Pull	0.156 in	3.96 mm	2.54 µm	100 µin	Blue	0.1 in	2.54 mm	All	0.4 in	10.16 mm	Diallyl Phthalate (DAP)	Square	Mating Guide	Receptacle	Gold	2.54 mm	0.1 in	Through Hole	Female Socket	Tin-Lead	1.27 µm	50 µin	140	Solder	2
TE Connectivity Aerospace, Defense and Marine 530340-8	Push-Pull	0.156 in	3.96 mm	2.54 µm	100 µin	Blue	0.1 in	2.54 mm	All	0.4 in	10.16 mm	Diallyl Phthalate (DAP)	Square	Mating Guide	Receptacle	Gold	2.54 mm	0.1 in	Through Hole	Female Socket	Tin-Lead	1.27 µm	50 µin	100	Solder	2
