DV14 Series

Catalog

TERMINALS PIGGYBACK DISCONNECT, VINYL BARREL INSUL

Part	Insulation Diameter [diameter]	Insulation Diameter	Terminal Type	Tab Width [x]	Tab Width [x]	Contact Finish	Color	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Min]	Wire Gauge [Max]	Termination	Tab Thickness	Tab Thickness	Insulation	Gender	Contact Material	Mounting Type	Features	Insulation Diameter [diameter]	Length - Overall	Length - Overall

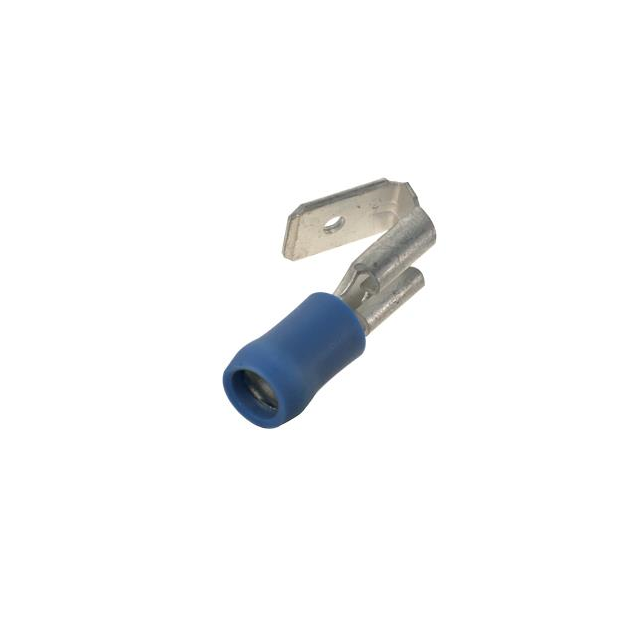

Panduit Corp DV14-250P-EYY	0.16 in	4.06 mm	Stacked	6.35 mm	0.25 in	Tin	Blue	22.35 mm	0.88 in	14 AWG	16 AWG	Crimp	0.81 mm	0.032 in	Non-Mating End Insulated	Female Male	Brass	Free Hanging (In-Line)

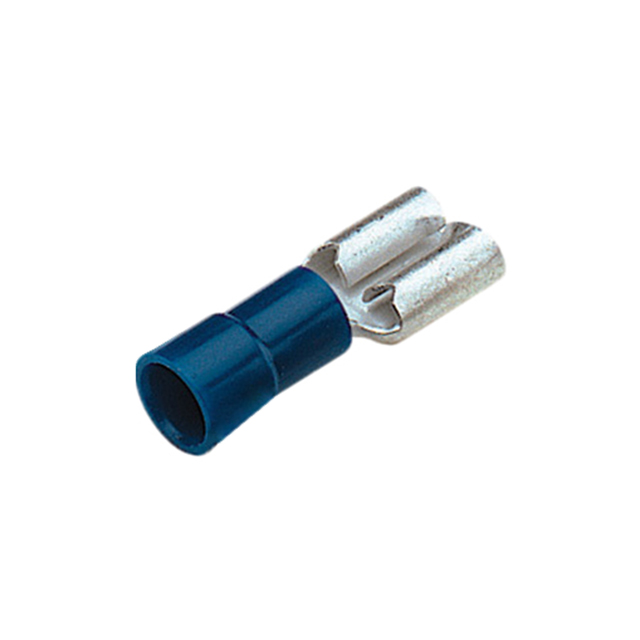

Panduit Corp DV14-250B-3K			Standard	6.35 mm	0.25 in	Tin	Blue	21.08 mm	0.83 in	14 AWG	16 AWG	Crimp	0.81 mm	0.032 in	Non-Mating End Insulated	Female	Brass	Free Hanging (In-Line)	Butted Seam Serrated Termination

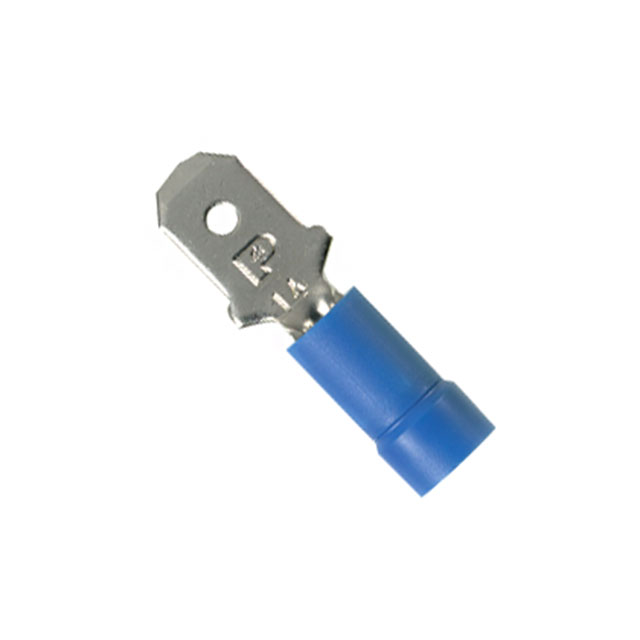

Panduit Corp DV14-250MB-C	0.18 in		Standard	6.35 mm	0.25 in	Nickel	Blue	24.38 mm	0.96 in	14 AWG	16 AWG	Crimp	0.81 mm	0.032 in	Non-Mating End Insulated	Male	Copper	Free Hanging (In-Line)	Butted Seam	4.57 mm

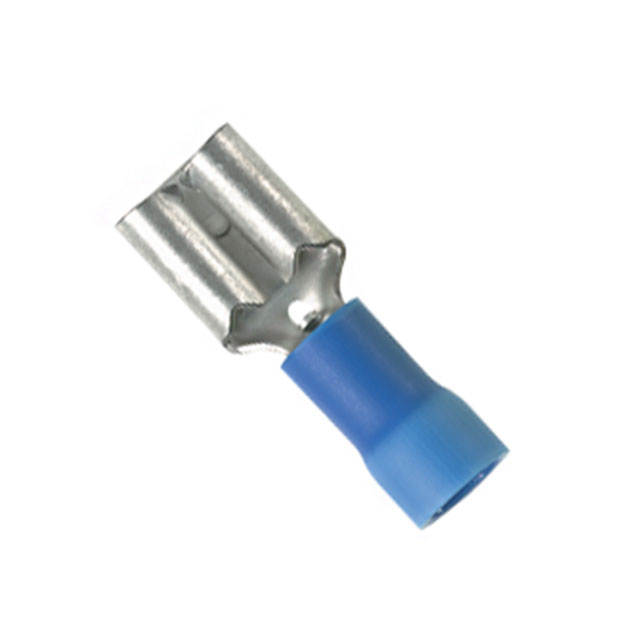

Panduit Corp DV14-250B-M			Standard	6.35 mm	0.25 in	Tin	Blue	20.57 mm	0.81 "	14 AWG	16 AWG	Crimp	0.81 mm	0.032 in	Non-Mating End Insulated	Female	Brass	Free Hanging (In-Line)	Serrated Termination
Panduit Corp DV14-187B-C			Standard	4.75 mm	0.187 in	Tin	Blue	19.05 mm	0.75 in	14 AWG	16 AWG	Crimp	0.81 mm	0.032 in	Non-Mating End Insulated	Female	Brass	Free Hanging (In-Line)	Butted Seam

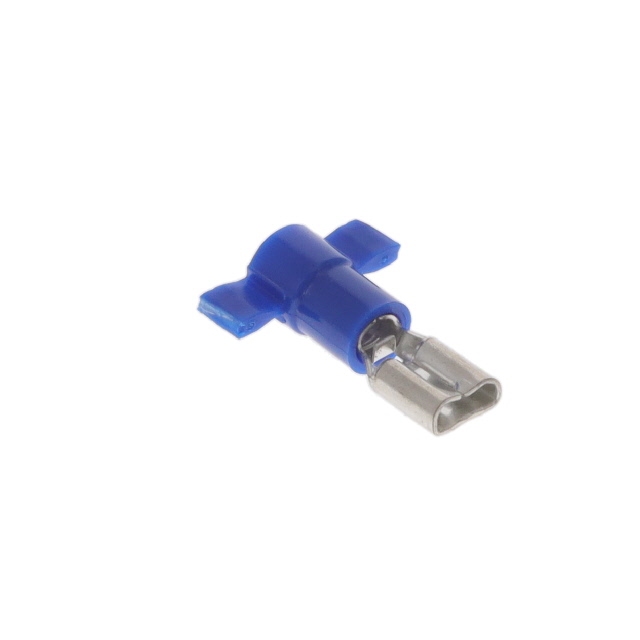

Panduit Corp DV14-187B-3K			Standard	4.75 mm	0.187 in	Tin	Blue			14 AWG	16 AWG	Crimp	0.81 mm	0.032 in	Non-Mating End Insulated	Female	Brass	Free Hanging (In-Line)	Butted Seam Serrated Termination		0.77 in	19.56 mm

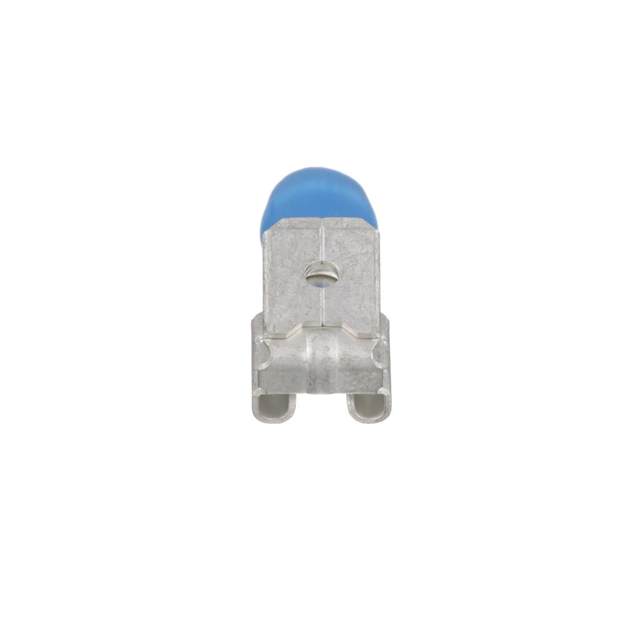

Panduit Corp DV14-250P-LYY	0.16 in	4.06 mm	Stacked	6.35 mm	0.25 in	Tin	Blue	22.35 mm	0.88 in	14 AWG	16 AWG	Crimp	0.81 mm	0.032 in	Non-Mating End Insulated	Female Male	Brass	Free Hanging (In-Line)

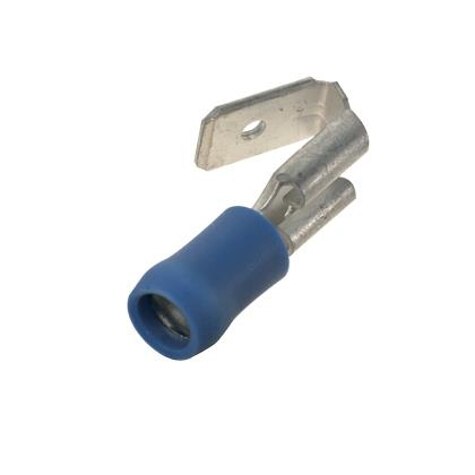

Panduit Corp DV14-250P-MYY	0.16 in	4.06 mm	Stacked	6.35 mm	0.25 in	Tin	Blue	22.35 mm	0.88 in	14 AWG	16 AWG	Crimp	0.81 mm	0.032 in	Non-Mating End Insulated	Female Male	Brass	Free Hanging (In-Line)
Panduit Corp DV14-250B-C			Standard	6.35 mm	0.25 in	Tin	Blue	20.57 mm	0.81 "	14 AWG	16 AWG	Crimp	0.81 mm	0.032 in	Non-Mating End Insulated	Female	Brass	Free Hanging (In-Line)	Serrated Termination
Panduit Corp DV14-250B-E			Standard	6.35 mm	0.25 in	Tin	Blue	20.57 mm	0.81 "	14 AWG	16 AWG	Crimp	0.81 mm	0.032 in	Non-Mating End Insulated	Female	Brass	Free Hanging (In-Line)	Butted Seam Serrated Termination
