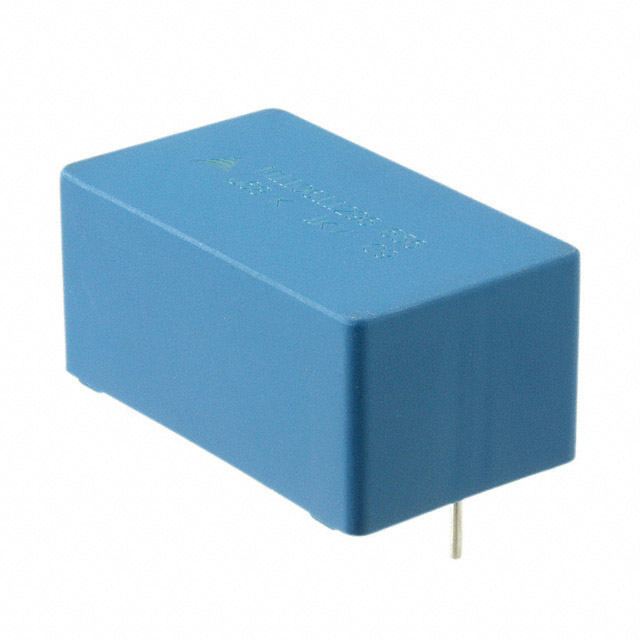

B32776T Series

Catalog

CAP FILM 8.5UF 10% 800VDC RADIAL

Part	Package / Case	Features	Lead Spacing	Lead Spacing	Termination	Dielectric Material	Applications	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Mounting Type	Capacitance	ESR (Equivalent Series Resistance)	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - DC
EPCOS - TDK Electronics B32776T8855K000	Radial	Long Life	37.5 mm	1.476 in	PC Pins	Polypropylene (PP) Metallized	DC Filtering DC Link	10 %	-40 C	105 ░C	800 V	Through Hole	8.5 µF	17.8 mOhms	1.634 in 41.5 mm	0.945 " 24 mm	0.748 in	19 mm
EPCOS - TDK Electronics B32776T9505K000	Radial	Long Life	37.5 mm	1.476 in	PC Pins	Polypropylene (PP) Metallized	DC Filtering DC Link	10 %	-40 C	105 ░C	900 VDC	Through Hole	5 µF	26.1 mOhm	1.634 in 41.5 mm	0.945 " 24 mm	0.591 "	15 mm
EPCOS - TDK Electronics B32776T0505J000	Radial	Long Life	37.5 mm	1.476 in	PC Pins	Polypropylene (PP) Metallized	DC Filtering DC Link	5 %	-40 C	105 ░C	1100 V	Through Hole	5 µF	23.6 mOhms	1.634 in 41.5 mm	0.945 " 24 mm	0.748 in	19 mm	1.1 kV
EPCOS - TDK Electronics B32776T1275K000	Radial	Long Life	37.5 mm	1.476 in	PC Pins	Polypropylene (PP) Metallized	DC Filtering DC Link	10 %	-40 C	105 ░C	1300 V	Through Hole	2.7 µF	34.7 mOhms	1.634 in 41.5 mm	0.945 " 24 mm	0.591 "	15 mm	1.3 kV
EPCOS - TDK Electronics B32776T5126K000	Radial	Long Life	37.5 mm	1.476 in	PC Pins	Polypropylene (PP) Metallized	DC Filtering DC Link	10 %	-40 C	105 ░C	575 V	Through Hole	12 µF	14.4 mOhms	1.634 in 41.5 mm	0.945 " 24 mm	0.748 in	19 mm
EPCOS - TDK Electronics B32776T8685K000	Radial	Long Life	37.5 mm	1.476 in	PC Pins	Polypropylene (PP) Metallized	DC Filtering DC Link	10 %	-40 C	105 ░C	800 V	Through Hole	6.8 µF	22.1 mOhms	1.634 in 41.5 mm	0.945 " 24 mm	0.591 "	15 mm
