NUF4402MN Series

EMI Filter, 4-Channel, with Integrated ESD Protection

Catalog

EMI Filter, 4-Channel, with Integrated ESD Protection

Part	Type	Filter Order	Center / Cutoff Frequency	Attenuation Value	Height [z]	Height [z]	Technology	Number of Channels	Resistance - Channel (Ohms)	Applications	Mounting Type	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	ESD Protection	Values
ON Semiconductor NUF4402MNT1G	Low Pass	2nd	151 MHz	-25 dB	0.039 in	1 mm	RC (Pi)	4	100 Ohms	Data Lines for Mobile Devices	Surface Mount	8-VFDFN Exposed Pad	0.063 in	1.6 mm	0.063 in	1.6 mm	85 °C	-40 °C		12 pF 100 Ohms

Catalog

EMI Filter, 4-Channel, with Integrated ESD Protection

Key Features

• EMI Filtering and ESD Protection

• Integration of 12 Discrete Components

• Compliance with IEC61000-4-2 (Level 4) 8.0 kV (Contact) and 15 kV (Air)

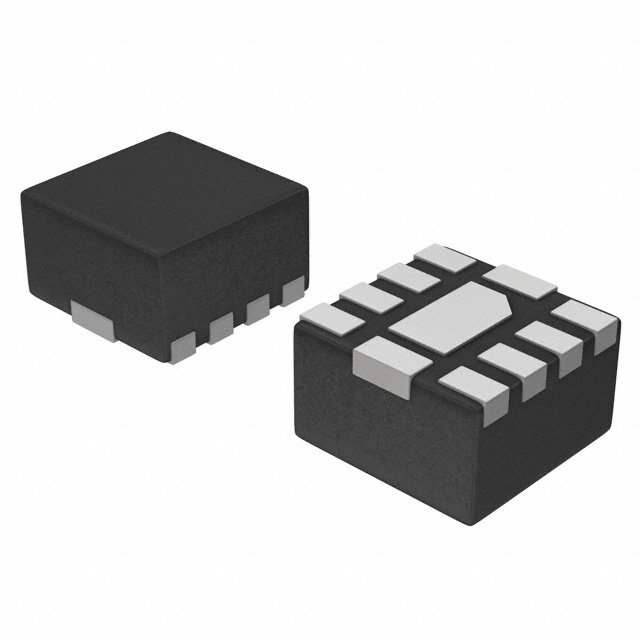

• DFN Package, 1.6 x 1.6 mm

• Moisture Sensitivity Level 1

• ESD Ratings: Machine Model = C and Human Body Model = 3B

Description

This device is a 4 line EMI filter array for wireless applications. Greater than -25 dB attenuation is obtained at frequencies from 800 MHz to 3.0 GHz. It also offers ESD protection-clamping tranients from static discharges. ESD protection is provided across all capacitors.
