SDI150 Series
Manufacturer: CUI Inc.
Beta
⌘K

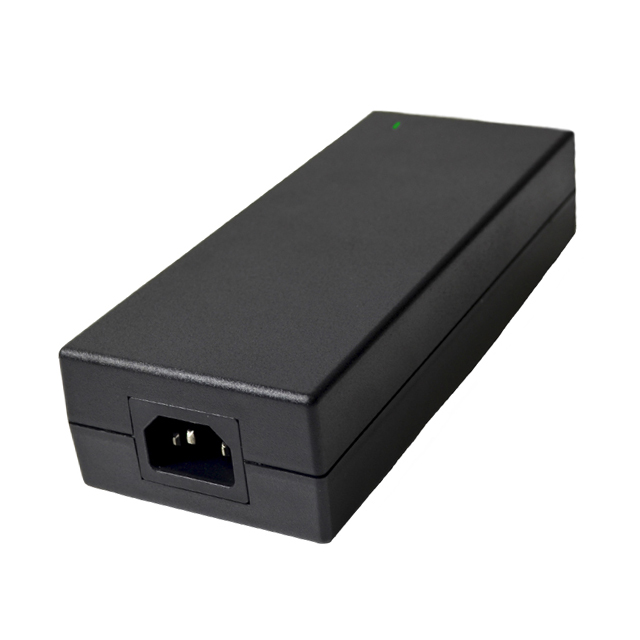

AC/DC DESKTOP ADAPTER 12V 150W
| Part | Output Connector | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Input Type | No Load Power Consumption | Cord Length | Cord Length | Standard Number | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output | Region Utilized | Applications | Form | Input Connector | Efficiency | Power (Watts) | Approval Agency | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Power DIN 4 Pin | -30 ░C | 65 °C | 12.5 A | Cord (Sold Separately) | 150 mW | 0.95 m | 37.4 in | 55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 | 264 VAC | 90 VAC | 12 V | Europe | ITE (Commercial) | Desktop (Class I) | IEC 320-C14 | CoC Tier 2 Level VI | 150 W | EN FCC SIQ TUV | 1.61 " | 180 mm | 74 mm | 2.91 in | 7.09 in | 41 mm |
CUI Inc. | Power DIN 4 Pin | -30 ░C | 65 °C | 5.36 A | Cord (Sold Separately) | 150 mW | 1.22 m | 48 in | 55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 | 264 VAC | 90 VAC | 28 V | International | ITE (Commercial) | Desktop (Class I) | IEC 320-C14 | CoC Tier 2 Level VI | 150 W | EN FCC SIQ TUV | 1.61 " | 180 mm | 74 mm | 2.91 in | 7.09 in | 41 mm |
CUI Inc. | Power DIN 4 Pin | -30 ░C | 65 °C | 6.25 A | Cord (Sold Separately) | 150 mW | 1.22 m | 48 in | 55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 | 264 VAC | 90 VAC | 24 V | North America | ITE (Commercial) | Desktop (Class I) | IEC 320-C14 | CoC Tier 2 Level VI | 150 W | EN FCC SIQ TUV | 1.61 " | 180 mm | 74 mm | 2.91 in | 7.09 in | 41 mm |
CUI Inc. | Power DIN 4 Pin | -30 ░C | 65 °C | 10 A | Cord (Sold Separately) | 150 mW | 0.95 m | 37.4 in | 55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 | 264 VAC | 90 VAC | 15 V | North America | ITE (Commercial) | Desktop (Class I) | IEC 320-C14 | CoC Tier 2 Level VI | 150 W | EN FCC SIQ TUV | 1.61 " | 180 mm | 74 mm | 2.91 in | 7.09 in | 41 mm |
CUI Inc. | Power DIN 4 Pin | -30 ░C | 65 °C | Cord (Sold Separately) | 150 mW | 1.22 m | 48 in | 55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 | 264 VAC | 90 VAC | 18 V | International | ITE (Commercial) | Desktop (Class I) | IEC 320-C14 | CoC Tier 2 Level VI | 150 W | EN FCC SIQ TUV | 1.61 " | 180 mm | 74 mm | 2.91 in | 7.09 in | 41 mm | |
CUI Inc. | Power DIN 4 Pin | -30 ░C | 65 °C | 10 A | Cord (Sold Separately) | 150 mW | 0.95 m | 37.4 in | 55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 | 264 VAC | 90 VAC | 15 V | International | ITE (Commercial) | Desktop (Class I) | IEC 320-C14 | CoC Tier 2 Level VI | 150 W | EN FCC SIQ TUV | 1.61 " | 180 mm | 74 mm | 2.91 in | 7.09 in | 41 mm |
CUI Inc. | Power DIN 4 Pin | -30 ░C | 65 °C | 12.5 A | Cord (Sold Separately) | 150 mW | 0.95 m | 37.4 in | 55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 | 264 VAC | 90 VAC | 12 V | International | ITE (Commercial) | Desktop (Class I) | IEC 320-C14 | CoC Tier 2 Level VI | 150 W | EN FCC SIQ TUV | 1.61 " | 180 mm | 74 mm | 2.91 in | 7.09 in | 41 mm |
CUI Inc. | Power DIN 4 Pin | -30 ░C | 65 °C | 12.5 A | Cord (Sold Separately) | 150 mW | 0.95 m | 37.4 in | 55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 | 264 VAC | 90 VAC | 12 V | North America | ITE (Commercial) | Desktop (Class I) | IEC 320-C14 | CoC Tier 2 Level VI | 150 W | EN FCC SIQ TUV | 1.61 " | 180 mm | 74 mm | 2.91 in | 7.09 in | 41 mm |
CUI Inc. | Power DIN 4 Pin | -30 ░C | 65 °C | 7.9 A | Cord (Sold Separately) | 150 mW | 1.22 m | 48 in | 55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 | 264 VAC | 90 VAC | 19 V | North America | ITE (Commercial) | Desktop (Class I) | IEC 320-C14 | CoC Tier 2 Level VI | 150 W | EN FCC SIQ TUV | 1.61 " | 180 mm | 74 mm | 2.91 in | 7.09 in | 41 mm |
CUI Inc. | Power DIN 4 Pin | -30 ░C | 65 °C | 6.25 A | Cord (Sold Separately) | 150 mW | 1.22 m | 48 in | 55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 | 264 VAC | 90 VAC | 24 V | Europe | ITE (Commercial) | Desktop (Class I) | IEC 320-C14 | CoC Tier 2 Level VI | 150 W | EN FCC SIQ TUV | 1.61 " | 180 mm | 74 mm | 2.91 in | 7.09 in | 41 mm |
