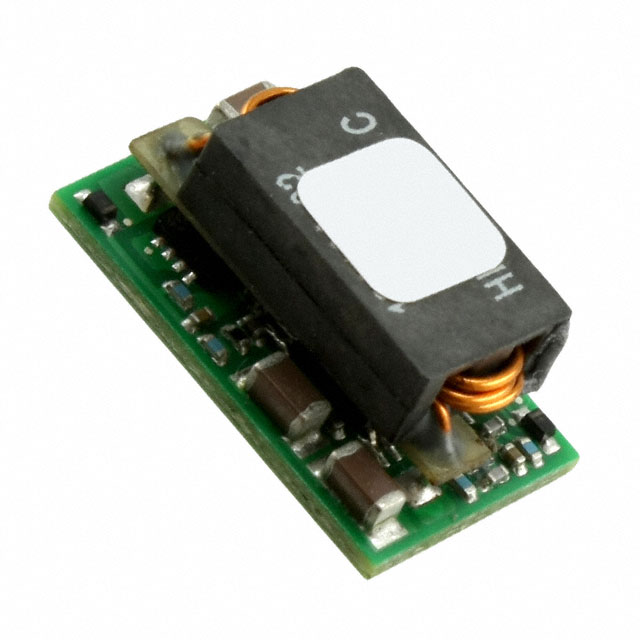

APXW005 Series
Manufacturer: OmniOn Power™
Beta
⌘K
DC DC CONVERTER 3-18V 45W
| Part | Voltage - Input (Max) [Max] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Input (Min) [Min] | Type | Number of Outputs | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Package / Case | Control Features | Current - Output (Max) | Efficiency | Applications | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | 36 V | Surface Mount | -40 C | 105 ░C | 45 W | 0.8 " | 11.4 mm | 0.34 in | 0.45 in | 20.3 mm | 8.5 mm | 9 V | Non-Isolated PoL Module | 1 | 18 V | 3 V | 6-SMD Module | Active Low Enable | 5 A | 95.9 % | ITE (Commercial) | OCP OTP Remote On/Off UVLO |
OmniOn Power™ | 36 V | Surface Mount | -40 C | 105 ░C | 45 W | 0.8 " | 11.4 mm | 0.34 in | 0.45 in | 20.3 mm | 8.5 mm | 9 V | Non-Isolated PoL Module | 1 | 18 V | 3 V | 6-SMD Module | Active Low Enable | 5 A | 95.9 % | ITE (Commercial) | OCP OTP Remote On/Off UVLO |
