Schaffner FN5060 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 24A CHASSIS MOUNT

Part	Mounting Type	Approval Agency	Inductance	Frequency - Operating	Voltage - Rated AC (Phase to Phase)	Termination Style	Current	Filter Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated AC (Phase to Ground/Neutral)	Configuration

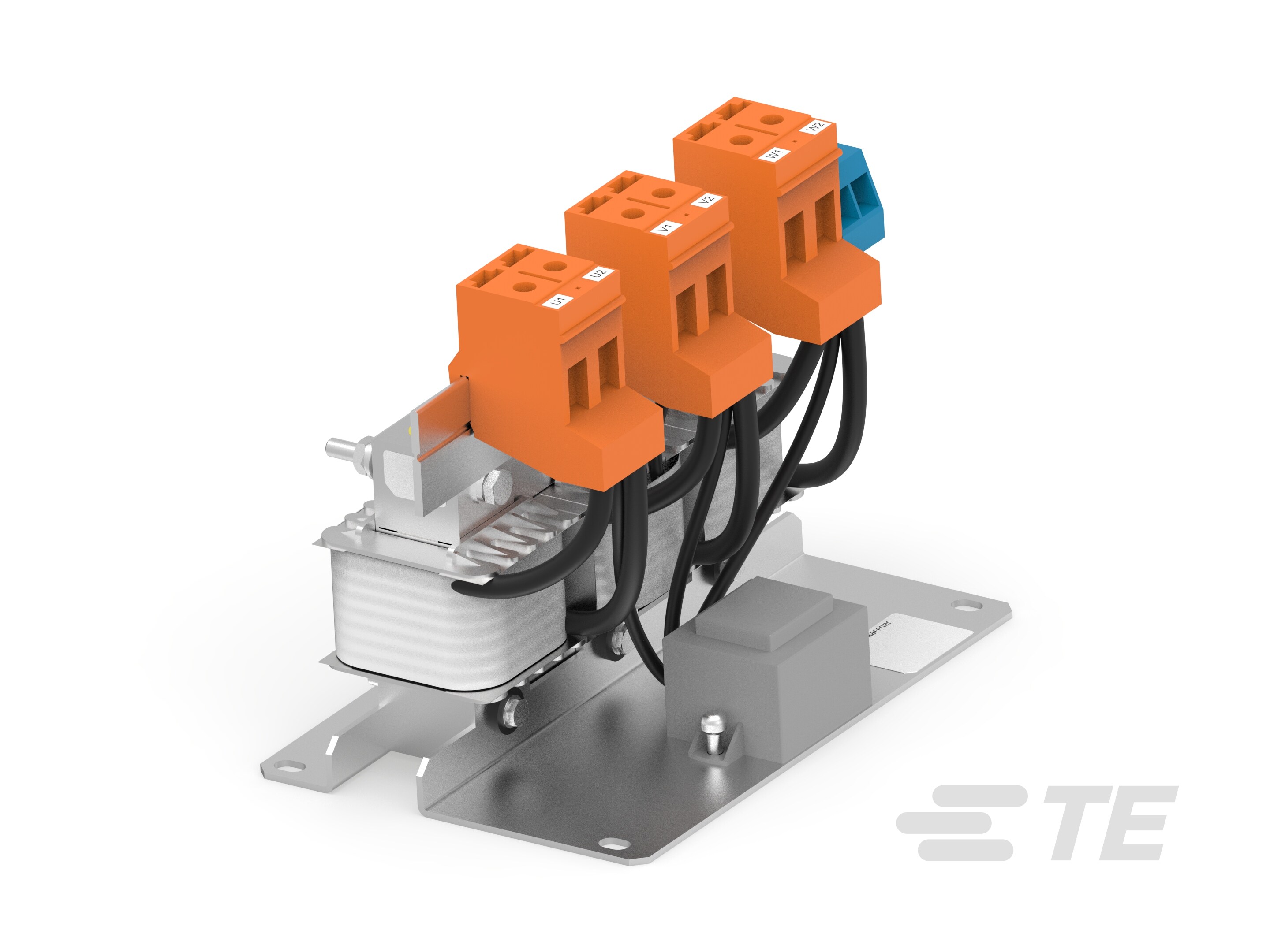

TE Connectivity AMP Connectors FN5060-24-84	Chassis Mount	CE cURus	98 µH	60 Hz	550 V	Terminal Block	24 A	Three Phase (Delta)	Regenerative Motor Drive	100 °C	-25 °C	500 V	Single Stage
TE Connectivity AMP Connectors FN5060-70-99	Chassis Mount	CE cURus	109 µH	60 Hz	550 V	Terminal Block	70 A	Three Phase (Delta)	Regenerative Motor Drive	100 °C	-25 °C	500 V	Single Stage

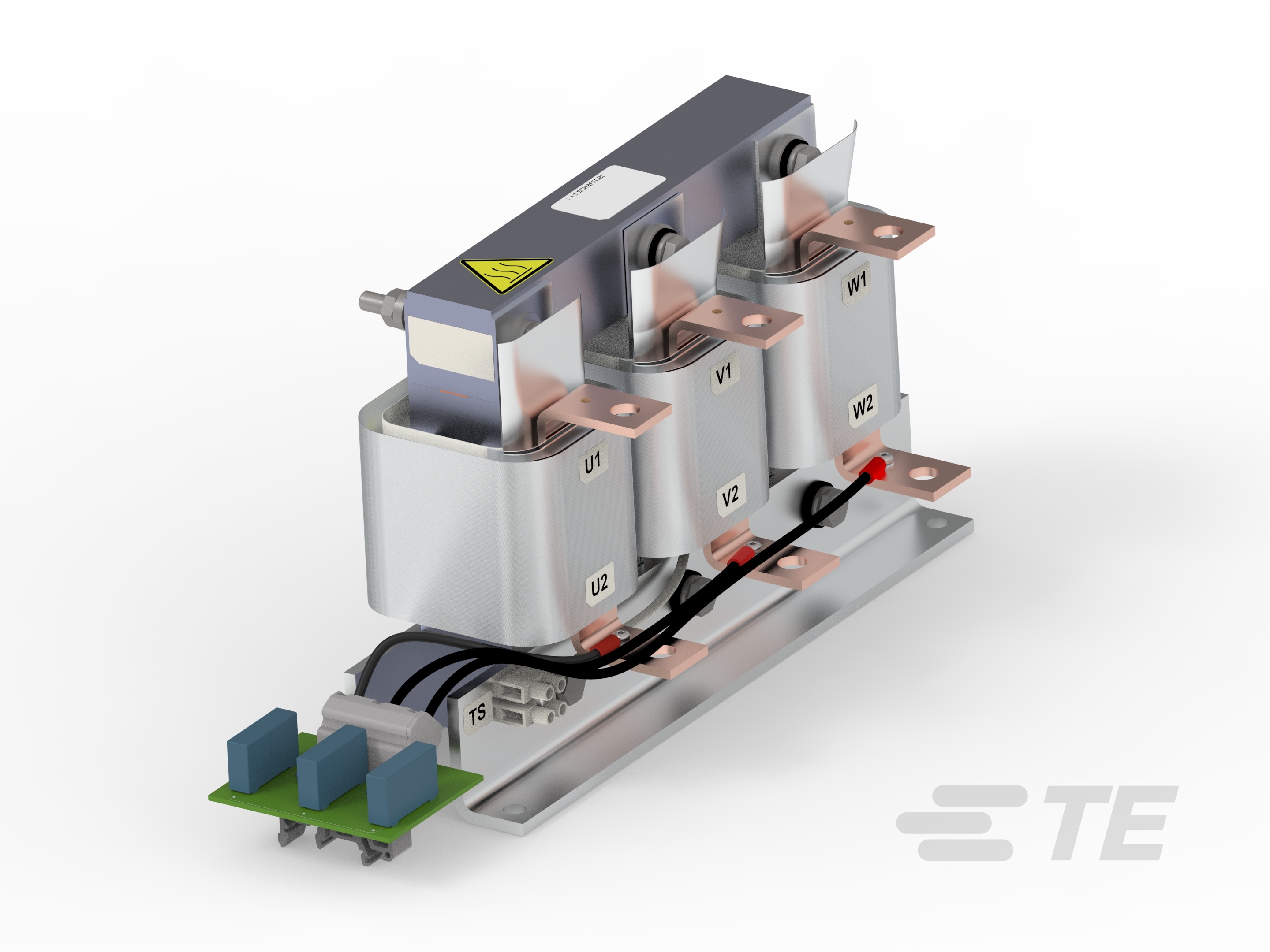

TE Connectivity AMP Connectors FN5060-45-99	Chassis Mount	CE cURus	170 µH	60 Hz	550 V	Terminal Block	45 A	Three Phase (Delta)	Regenerative Motor Drive	100 °C	-25 °C	500 V	Single Stage
TE Connectivity AMP Connectors FN5060-12-84	Chassis Mount	CE cURus	95 µH	60 Hz	550 V	Terminal Block	12 A	Three Phase (Delta)	Regenerative Motor Drive	100 °C	-25 °C	500 V	Single Stage
TE Connectivity AMP Connectors FN5060-24-84	Chassis Mount	CE cURus	98 µH	60 Hz	550 V	Terminal Block	24 A	Three Phase (Delta)	Regenerative Motor Drive	100 °C	-25 °C	500 V	Single Stage
TE Connectivity AMP Connectors FN5060-70-99	Chassis Mount	CE cURus	109 µH	60 Hz	550 V	Terminal Block	70 A	Three Phase (Delta)	Regenerative Motor Drive	100 °C	-25 °C	500 V	Single Stage
TE Connectivity AMP Connectors FN5060-60-99	Chassis Mount	CE cURus	127 µH	60 Hz	550 V	Terminal Block	60 A	Three Phase (Delta)	Regenerative Motor Drive	100 °C	-25 °C	500 V	Single Stage
TE Connectivity AMP Connectors FN5060-60-99	Chassis Mount	CE cURus	127 µH	60 Hz	550 V	Terminal Block	60 A	Three Phase (Delta)	Regenerative Motor Drive	100 °C	-25 °C	500 V	Single Stage
TE Connectivity AMP Connectors FN5060-12-84	Chassis Mount	CE cURus	95 µH	60 Hz	550 V	Terminal Block	12 A	Three Phase (Delta)	Regenerative Motor Drive	100 °C	-25 °C	500 V	Single Stage
