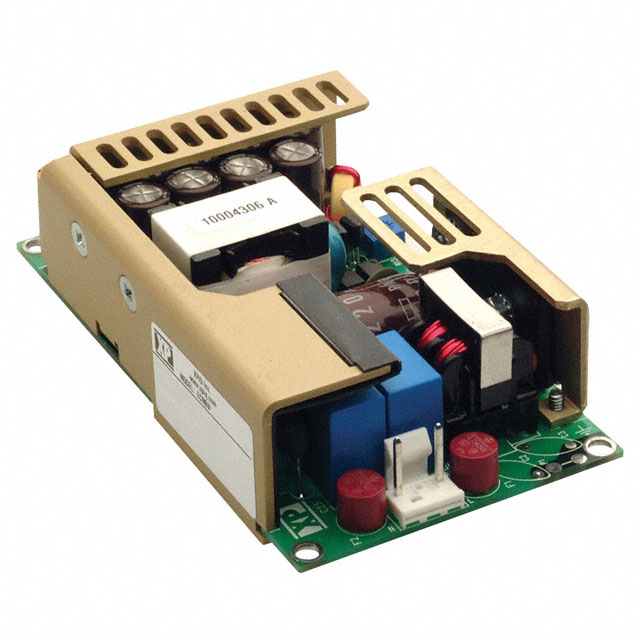

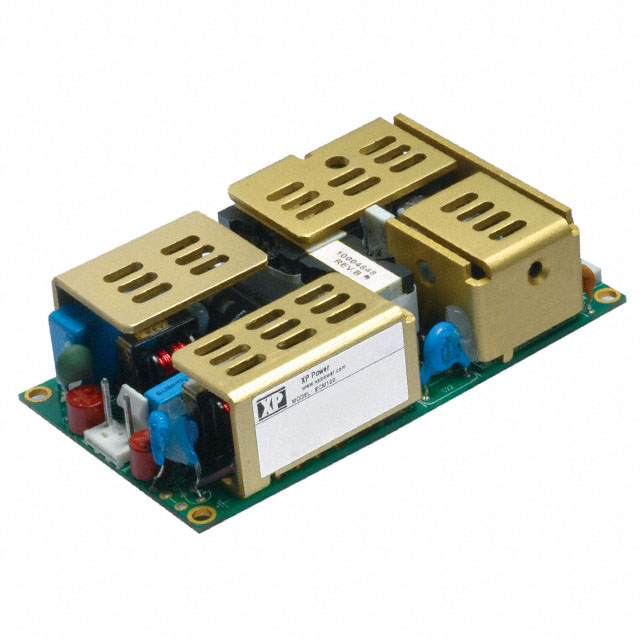

ECM100 Series

Manufacturer: XP Power

Catalog

AC/DC CONVERTER 5V +/-12V 80W

Part	Features	Current - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Output 2	Applications	Current - Output 3	Voltage - Isolation	Voltage - Output 3	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Type	Efficiency	Approval Agency	Current - Output 1	Standard Number	Voltage - Output 4	Current - Output 4	For Use With/Related Products	Accessory Type
XP Power ECM100UT31	Universal Input	3 A	70 °C	0 °C	Chassis Mount	12 V	ITE (Commercial) Medical	0.8 A	4000 V	-12 V	80 W 100 W	30.5 mm	1.2 "	63.5 mm	2.5 "	4.5 in	114.3 mm	3	90 VAC 120 VDC	264 VAC 370 VDC	5 V	Open Frame	80 %	CB CE	10 A	62368-1
XP Power ECM100UQ45	Universal Input	3 A	70 °C	0 °C	Chassis Mount	12 V	ITE (Commercial) Medical	0.8 A	4000 V	-12 V	80 W 100 W	30.5 mm	1.2 "	63.5 mm	2.5 "	4.5 in	114.3 mm	4	90 VAC 120 VDC	264 VAC 370 VDC	5 V	Open Frame	80 %	CB CE	10 A	62368-1	-5 V	500 mA
XP Power ECM100US48	Adjustable Output Universal Input		70 °C	0 °C	Chassis Mount		ITE (Commercial) Medical		4000 V		100 W	30.5 mm	1.2 "	63.5 mm	2.5 "	4.5 in	114.3 mm	1	90 VAC 120 VDC	264 VAC 370 VDC	48 V	Open Frame	80 %	CB CE	2.1 A	62368-1
XP Power ECM100UQ44	Universal Input	2 A	70 °C	0 °C	Chassis Mount	24 V	ITE (Commercial) Medical	0.8 A	4000 V	15 V	80 W 100 W	30.5 mm	1.2 "	63.5 mm	2.5 "	4.5 in	114.3 mm	4	90 VAC 120 VDC	264 VAC 370 VDC	5 V	Open Frame	80 %	CB CE	10 A	62368-1	-15 V	500 mA
XP Power ECM100UQ43	Universal Input	2 A	70 °C	0 °C	Chassis Mount	24 V	ITE (Commercial) Medical	0.8 A	4000 V	12 V	80 W 100 W	30.5 mm	1.2 "	63.5 mm	2.5 "	4.5 in	114.3 mm	4	90 VAC 120 VDC	264 VAC 370 VDC	5 V	Open Frame	80 %	CB CE	10 A	62368-1	-12 V	500 mA
XP Power ECM100UQ41	Universal Input	5 A	70 °C	0 °C	Chassis Mount	3.3 V	ITE (Commercial) Medical	0.8 A	4000 V	12 V	80 W 100 W	30.5 mm	1.2 "	63.5 mm	2.5 "	4.5 in	114.3 mm	4	90 VAC 120 VDC	264 VAC 370 VDC	5 V	Open Frame	80 %	CB CE	10 A	62368-1	-12 V	500 mA
XP Power ECM100S CONKIT																													ECM100 Series Power Supplies	Connector Kit
XP Power ECM100UT34	Universal Input	5 A	70 °C	0 °C	Chassis Mount	5 V	ITE (Commercial) Medical	0.8 A	4000 V	12 V	80 W 100 W	30.5 mm	1.2 "	63.5 mm	2.5 "	4.5 in	114.3 mm	3	90 VAC 120 VDC	264 VAC 370 VDC	3.3 V	Open Frame	80 %	CB CE	10 A	62368-1
XP Power ECM100UT33	Universal Input	3 A	70 °C	0 °C	Chassis Mount	15 V	ITE (Commercial) Medical	0.8 A	4000 V	-15 V	80 W 100 W	30.5 mm	1.2 "	63.5 mm	2.5 "	4.5 in	114.3 mm	3	90 VAC 120 VDC	264 VAC 370 VDC	5 V	Open Frame	80 %	CB CE	10 A	62368-1
XP Power ECM100DT LOOM																													ECM Series Power Supplies	Wire Harness
