X7S Series
Manufacturer: KYOCERA AVX
Beta
⌘K
MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT T101 HIGH CV
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Tolerance | Capacitance | Voltage - Rated | Package / Case | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Temperature Coefficient | Mounting Type | Thickness (Max) [Max] | Thickness (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | -55 C | 125 °C | General Purpose | 20 % | 1 µF | 6.3 VDC | 1210 | 3225 Metric | 3.3 mm | 2.5 mm | 0.13 " | 0.098 in | X7S | MLCC Surface Mount | ||

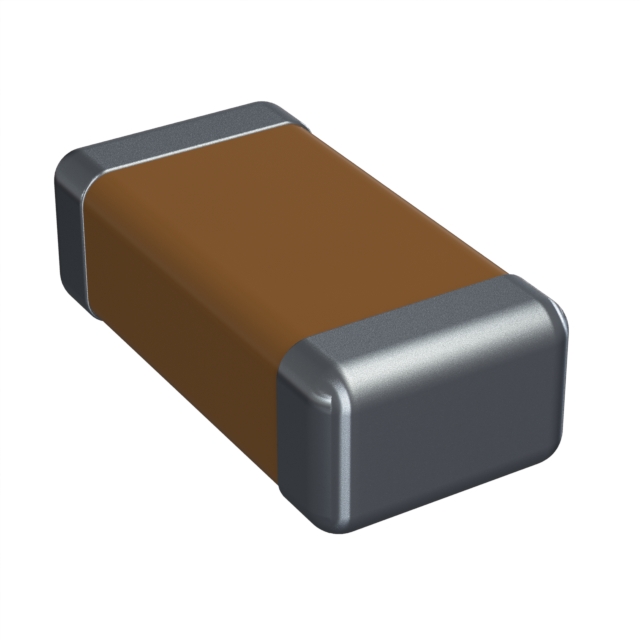

 KYOCERA AVX | -55 C | 125 °C | General Purpose | 10 % | 2.2 µF | 100 V | 1206 (3216 Metric) | 3.2 mm | 1.6 mm | 0.126 " | 0.063 " | X7S | MLCC Surface Mount | 0.07 " | 1.78 mm | |
 KYOCERA AVX | -55 C | 125 °C | General Purpose | 10 % | 10000 pF | 50 VDC | 0402 (1005 Metric) | 1 mm | 0.5 mm | 0.04 " | 0.02 in | X7S | MLCC Surface Mount | 0.022 in | 0.56 mm |
