15723C Series

Catalog

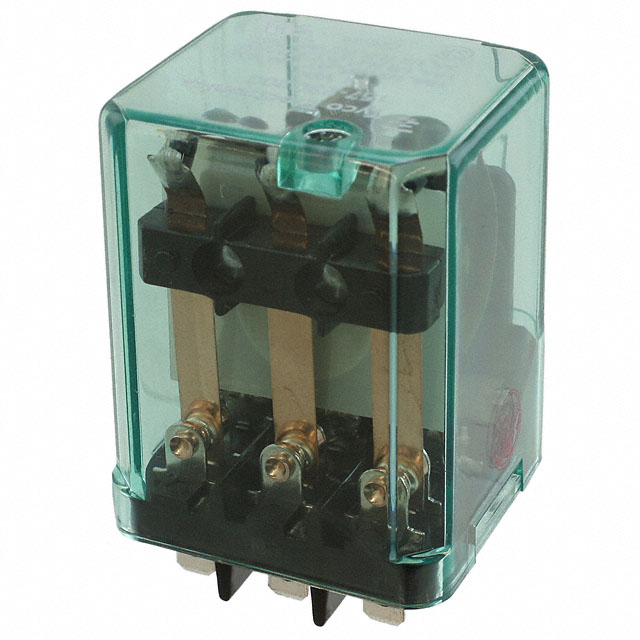

RELAY GEN PURPOSE 3PDT 10A 24V

Part	Coil Resistance	Contact Form	Approval Agency	Relay Type	Mounting Type	Must Operate Voltage	Coil Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Termination Style	Coil Current	Switching Voltage	Operate Time	Contact Rating (Current)	Coil Voltage	Load - Max Switching	Release Time	Contact Material
TE Connectivity AMP Connectors 15723C200	470 Ohms	3PDT (3 Form C)	CSA UR	General Purpose	Socketable	18 VDC	Non Latching	-45 °C	70 °C	0.187 in 4.7 mm	Plug In Quick Connect	51.1 mA	28 VDC 240 VAC	20 ms	10 A	24 VDC	280 W 2400 VA	10 ms	Silver Cadmium Oxide (AgCdO)
TE Connectivity AMP Connectors 157-23C2CB	470 Ohms	3PDT (3 Form C)	CSA UR	General Purpose	Socketable	18 VDC	Non Latching	-45 °C	80 °C	0.187 in 4.7 mm	Plug In Quick Connect	51.1 mA	28 VDC 240 VAC	20 ms	10 A	24 VDC	280 W 2400 VA	10 ms	Silver Cadmium Oxide (AgCdO)
