845-015 Series
Manufacturer: EDAC Inc.
Beta
⌘K

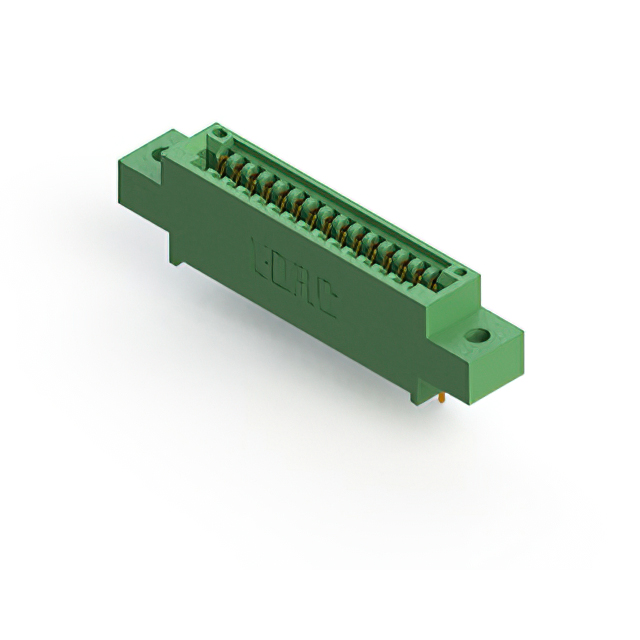

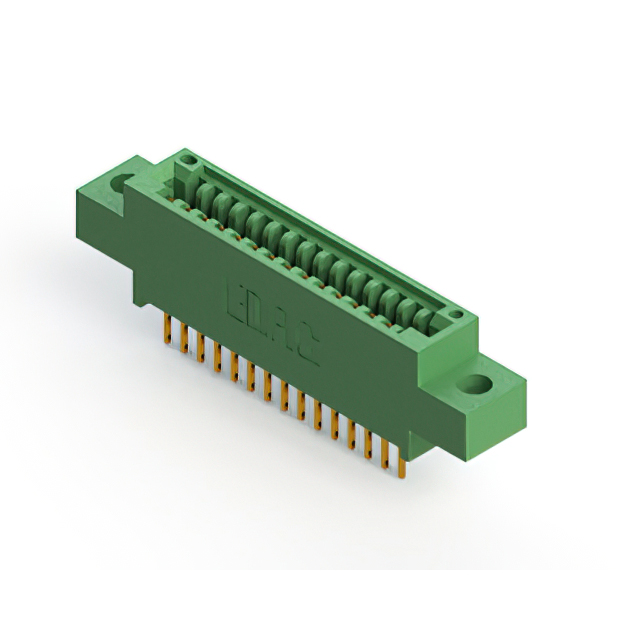

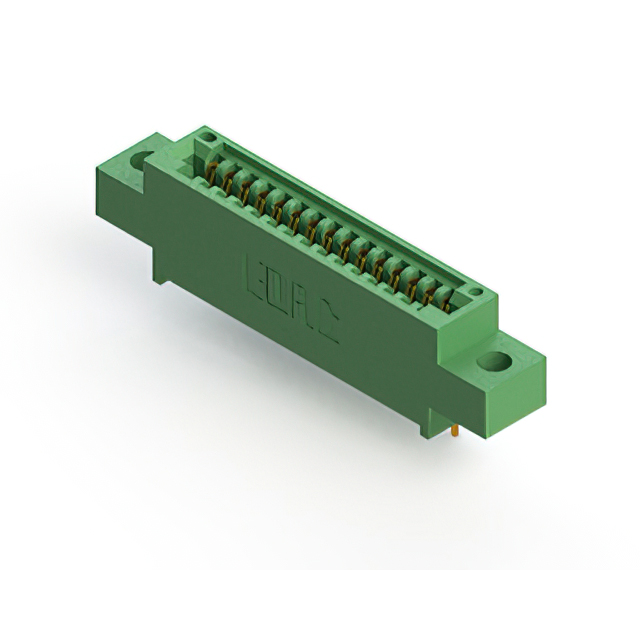

CONN EDGE SINGLE FML 15POS 0.100
| Part | Termination Rows | Material - Insulation | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Material | Mounting Type | Card Type | Termination | Number of Positions | Number of Positions/Bay/Row | Read Out | Pitch | Pitch | Gender | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 125 °C | -40 C | Green | Copper Alloy | Through Hole | Non Specified - Single Edge | Solder | 15 | 15 | Single | 0.1 " | 2.54 mm | Female | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.25 Ám | 10 Áin | 0.156 " | 3.96 mm | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 125 °C | -40 C | Green | Copper Alloy | Through Hole | Non Specified - Single Edge | Solder | 15 | 15 | Single | 0.1 " | 2.54 mm | Female | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 125 °C | -40 C | Green | Copper Alloy | Through Hole | Non Specified - Single Edge | Wire Wrap | 15 | 15 | Single | 0.1 " | 2.54 mm | Female | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 125 °C | -40 C | Green | Copper Alloy | Through Hole | Non Specified - Single Edge | Solder | 15 | 15 | Single | 0.1 " | 2.54 mm | Female | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.25 Ám | 10 Áin | 0.156 " | 3.96 mm | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 125 °C | -40 C | Green | Copper Alloy | Right Angle Through Hole | Non Specified - Single Edge | Solder | 15 | 15 | Single | 0.1 " | 2.54 mm | Female | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.25 Ám | 10 Áin | 0.156 " | 3.96 mm | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 125 °C | -40 C | Green | Copper Alloy | Through Hole | Non Specified - Single Edge | Wire Wrap | 15 | 15 | Single | 0.1 " | 2.54 mm | Female | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.25 Ám | 10 Áin | 0.128 " | 3.25 mm | Side Mount Opening Unthreaded |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 125 °C | -40 C | Green | Copper Alloy | Through Hole | Non Specified - Single Edge | Solder | 15 | 15 | Single | 0.1 " | 2.54 mm | Female | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.25 Ám | 10 Áin | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 125 °C | -40 C | Green | Copper Alloy | Through Hole | Non Specified - Single Edge | Wire Wrap | 15 | 15 | Single | 0.1 " | 2.54 mm | Female | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.25 Ám | 10 Áin | 0.116 " | 2.95 mm | Floating Bobbin Flush Mount |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 125 °C | -40 C | Green | Copper Alloy | Through Hole | Non Specified - Single Edge | Wire Wrap | 15 | 15 | Single | 0.1 " | 2.54 mm | Female | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.25 Ám | 10 Áin | 0.128 " | 3.25 mm | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | 125 °C | -40 C | Green | Copper Alloy | Through Hole | Non Specified - Single Edge | Wire Wrap | 15 | 15 | Single | 0.1 " | 2.54 mm | Female | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.25 Ám | 10 Áin | 0.128 " | 3.25 mm | Flush Mount Top Opening Unthreaded |
