MS3116E18 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K

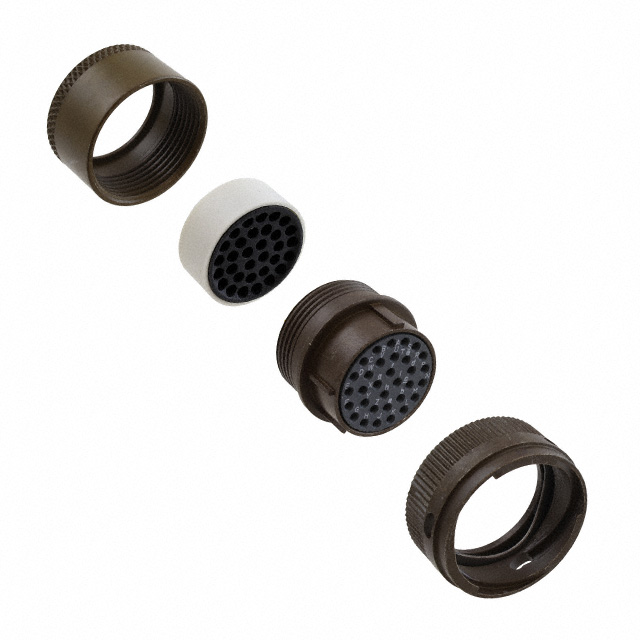

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3116 SERIES, STRAIGHT PLUG, 32 CONTACTS
| Part | Color | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Primary Material | Orientation | Shell Finish | Ingress Protection | Shell Material | Connector Type | Voltage Rating | Voltage Rating | Contact Finish - Mating | Fastening Type | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ITT Cannon, LLC | Olive Drab | 7.5 A | -55 C | 125 °C | 18 | 32 | Metal | N (Normal) | Olive Drab Cadmium | Environment Resistant | Aluminum Alloy | Plug Female Sockets | 600 VAC | 850 VDC | Gold | Bayonet Lock | Free Hanging (In-Line) | 50 µin | 1.27 µm | Backshell |
