CFM-5010 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

FAN AXIAL 50X10MM 5VDC WIRE

Part	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Noise	Features	Width [y]	Fan Type	Power (Watts)	Static Pressure	Static Pressure	Weight	Weight	Voltage - Rated	Termination	Material - Blade	Air Flow	Air Flow	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Lifetime @ Temp.	Width [x]	Bearing Type	Static Pressure
Same Sky (Formerly CUI Devices) CFM-5010V-043-260-11	70 °C	-10 °C	4800 RPM	CE cURus TUV	50 mm	50 mm	25.6 dB(A)	Auto Restart Locked Rotor Sensor	10 mm	Tubeaxial	1.36 W	0.11 in H2O	27.4 Pa	20.87 g	0.046 lb	5 V	3 Wire Leads

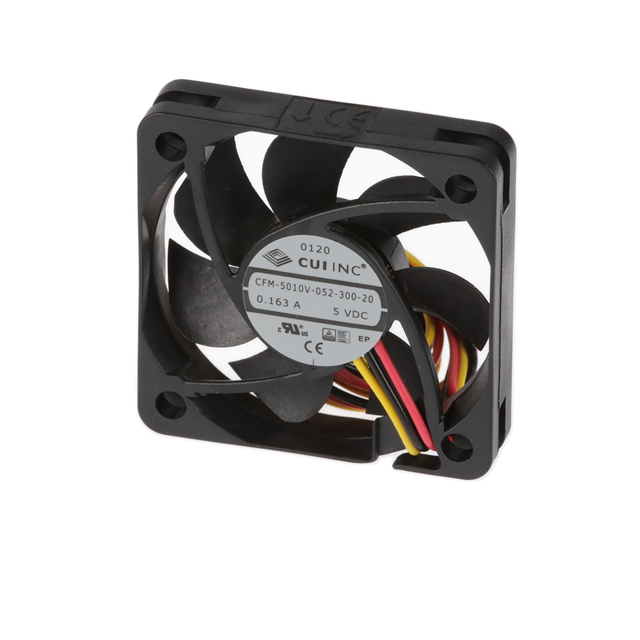

Same Sky (Formerly CUI Devices) CFM-5010V-052-300-20	70 °C	-10 °C	5800 RPM	CE cURus TUV	50 mm	50 mm	30.7 dB(A)	Auto Restart Speed Sensor (Tach)	10 mm	Tubeaxial	1.5 W			20.87 g	0.046 lb	5 V	3 Wire Leads	Polybutylene Terephthalate (PBT)	13.8 CFM	0.386 mł/min	3.5 VDC	6 VDC	179 mA	70000 Hrs
Same Sky (Formerly CUI Devices) CFM-5010-03-20	70 °C	-10 °C	6100 RPM	CE cURus TUV	50 mm	50 mm	37.2 dB(A)	Auto Restart Speed Sensor (Tach)		Tubeaxial	1.4 W	0.2 in H2O	49.8 Pa	20.87 g	0.046 lb	5 V	3 Wire Leads		16.1 CFM	0.451 mł/min					10.6 mm	Ball
Same Sky (Formerly CUI Devices) CFM-5010V-155-310-20	70 °C	-10 °C	5800 RPM	CE cURus TUV	50 mm	50 mm	30.7 dB(A)	Auto Restart Speed Sensor (Tach)	10 mm	Tubeaxial	980 mW		0.15 in H2O	20.87 g	0.046 lb	12 VDC	3 Wire Leads		13.8 CFM	0.386 mł/min							37.4 Pa
Same Sky (Formerly CUI Devices) CFM-5010V-155-310-11	70 °C	-10 °C	5800 RPM	CE cURus TUV	50 mm	50 mm	30.7 dB(A)	Auto Restart Locked Rotor Sensor	10 mm	Tubeaxial	980 mW		0.15 in H2O	20.87 g	0.046 lb	12 VDC	3 Wire Leads	Polybutylene Terephthalate (PBT)	13.8 CFM	0.386 mł/min	4.5 V	13.8 VDC	81 mA	70000 Hrs			37.4 Pa
Same Sky (Formerly CUI Devices) CFM-5010V-043-260	70 °C	-10 °C	4800 RPM	CE cURus TUV	50 mm	50 mm	25.6 dB(A)	Auto Restart	10 mm	Tubeaxial	1.36 W	0.11 in H2O	27.4 Pa	20.87 g	0.046 lb	5 V	2 Wire Leads	Polybutylene Terephthalate (PBT)			3.5 VDC	6 VDC	0.98 A	70000 Hrs
Same Sky (Formerly CUI Devices) CFM-5010V-155-310-11	70 °C	-10 °C	5800 RPM	CE cURus TUV	50 mm	50 mm	30.7 dB(A)	Auto Restart Locked Rotor Sensor	10 mm	Tubeaxial	980 mW		0.15 in H2O	20.87 g	0.046 lb	12 VDC	3 Wire Leads		13.8 CFM	0.386 mł/min							37.4 Pa
Same Sky (Formerly CUI Devices) CFM-5010V-052-300-11	70 °C	-10 °C	5800 RPM	CE cURus TUV	50 mm	50 mm	30.7 dB(A)	Auto Restart Locked Rotor Sensor	10 mm	Tubeaxial	1.5 W			20.87 g	0.046 lb	5 V	3 Wire Leads	Polybutylene Terephthalate (PBT)	13.8 CFM	0.386 mł/min	3.5 VDC	6 VDC	179 mA	70000 Hrs
Same Sky (Formerly CUI Devices) CFM-5010V-043-260-11	70 °C	-10 °C	4800 RPM	CE cURus TUV	50 mm	50 mm	25.6 dB(A)	Auto Restart Locked Rotor Sensor	10 mm	Tubeaxial	1.36 W	0.11 in H2O	27.4 Pa	20.87 g	0.046 lb	5 V	3 Wire Leads	Polybutylene Terephthalate (PBT)			3.5 VDC	6 VDC	0.98 A	70000 Hrs
Same Sky (Formerly CUI Devices) CFM-5010-03-20	70 °C	-10 °C	6100 RPM	CE cURus TUV	50 mm	50 mm	37.2 dB(A)	Auto Restart Speed Sensor (Tach)		Tubeaxial	1.4 W	0.2 in H2O	49.8 Pa	20.87 g	0.046 lb	5 V	3 Wire Leads	Polybutylene Terephthalate (PBT)	16.1 CFM	0.451 mł/min	4 VDC	5.75 VDC	0.21 A	70000 Hrs	10.6 mm	Ball
