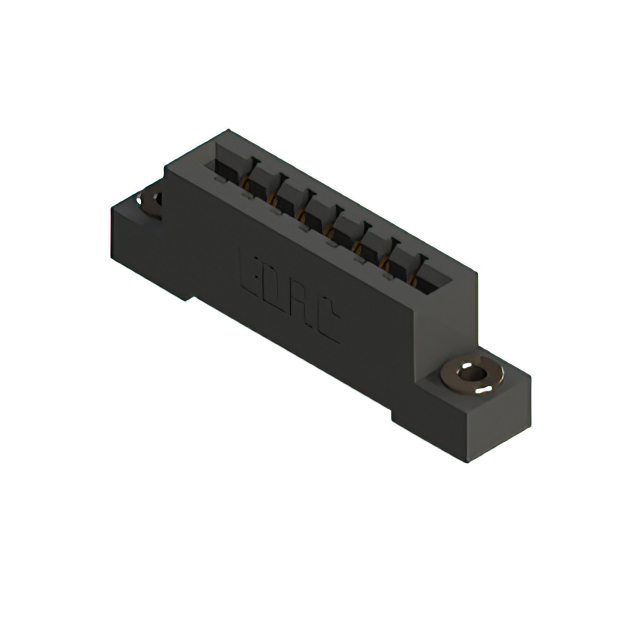

887-007 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 7POS 0.156
| Part | Material - Insulation | Termination Rows | Number of Positions/Bay/Row | Card Type | Gender | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Number of Rows | Termination | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Contact Type | Contact Finish | Contact Material | Color | Flange Feature [diameter] | Flange Feature [diameter] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 7 | Non Specified - Single Edge | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 7 | 1 | Solder | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | Gold | Copper Alloy | Black | 0.156 " | 3.96 mm | Through Hole | 125 °C | -40 C | Single | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 7 | Non Specified - Single Edge | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 7 | 1 | Solder | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | Gold | Copper Alloy | Black | Through Hole | 125 °C | -40 C | Single | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 7 | Non Specified - Single Edge | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 7 | 1 | Solder | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | Gold | Copper Alloy | Black | 0.116 " | 2.95 mm | Right Angle Through Hole | 125 °C | -40 C | Single | Floating Bobbin Flush Mount |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 7 | Non Specified - Single Edge | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 7 | 1 | Solder | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | Gold | Copper Alloy | Black | Through Hole | 125 °C | -40 C | Single | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 7 | Non Specified - Single Edge | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 7 | 1 | Wire Wrap | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | Gold | Copper Alloy | Black | Through Hole | 125 °C | -40 C | Single | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 7 | Non Specified - Single Edge | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 7 | 1 | Wire Wrap | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | Gold | Copper Alloy | Black | Through Hole | 125 °C | -40 C | Single | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 7 | Non Specified - Single Edge | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 7 | 1 | Solder | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | Gold | Copper Alloy | Black | Through Hole | 125 °C | -40 C | Single | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 7 | Non Specified - Single Edge | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 7 | 1 | Solder | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | Gold | Copper Alloy | Black | 0.116 " | 2.95 mm | Through Hole | 125 °C | -40 C | Single | Floating Bobbin Flush Mount |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 7 | Non Specified - Single Edge | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 7 | 1 | Solder | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | Gold | Copper Alloy | Black | 0.116 " | 2.95 mm | Through Hole | 125 °C | -40 C | Single | Floating Bobbin Flush Mount |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 7 | Non Specified - Single Edge | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 7 | 1 | Wire Wrap | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | Gold | Copper Alloy | Black | Through Hole | 125 °C | -40 C | Single | M3 Threaded Insert Top Mount Opening |
