PR20C03VB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

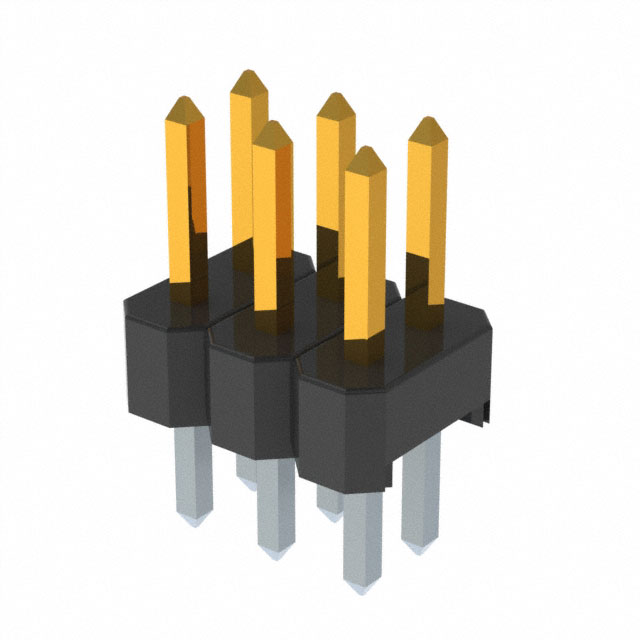

CONN HEADER VERT 6POS 2MM
| Part | Contact Length - Post [custom] | Contact Length - Post | Pitch - Mating | Pitch - Mating | Insulation Material | Overall Contact Length | Overall Contact Length | Contact Type | Shrouding | Fastening Type | Contact Shape | Insulation Color | Number of Rows [custom] | Termination | Contact Finish - Mating | Contact Length - Mating | Contact Length - Mating | Row Spacing - Mating | Row Spacing - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Number of Positions Loaded | Mounting Type | Contact Material | Number of Positions | Connector Type | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | 0.11 in | 2.79 mm | 0.079 " | 2 mm | Polyethylene | 0.343 in | 8.7 mm | Male Pin | Unshrouded | Push-Pull | Square | Black | 2 | Solder | Gold | 0.154 in | 3.91 mm | 2 mm | 0.079 in | -55 C | 105 ░C | Flash | All | Through Hole | Copper Zinc | 6 | Header | 2 mm | 0.079 in |
