3517 Series

Catalog

FLAT CABLE 10CONDUCTORS 28AWG 300V BLACK 30.48M ROLL

Part	First Conductor Mark	Conductor Material	Insulation Resistance	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Length	Length	Cable Type	Pitch	Pitch	Length [x]	Length [x]	Wire Gauge	Number of Conductors [custom]	Ribbon Width [custom]	Ribbon Width [custom]	Jacket (Insulation) Material	Ribbon Thickness	Ribbon Thickness	Features	Shielding	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Conductors	Length	Number of Conductors [custom]
3M Electronic Specialty 3517/10 100SF	Red	Copper Tinned	10 GOhm	300 VDC	36 AWG	7 Strands	UL Style 2912	3.05 m 7.62 m 30.48 m 304.8 mm	1 ft 10 ft 25 ft 100 '	Flat Cable Flat Jacket	0.05 in	1.27 mm	50 ft	15.24 m	28 AWG	10	0.63 in	16 mm	Poly-Vinyl Chloride (PVC)	2.79 mm	0.11 "	Splice Free	Shielded	Gray	80 °C	-20 ░C

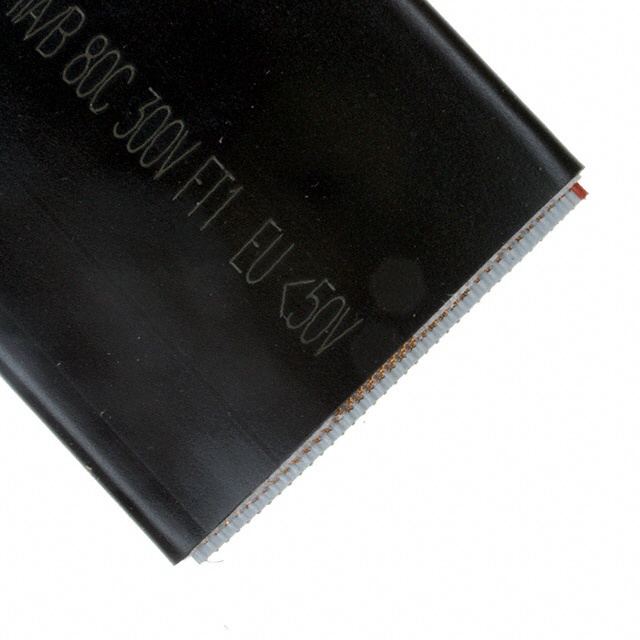

3M Electronic Specialty 3517/37 100SF	Red	Copper Tinned	10 GOhm	300 VDC	36 AWG	7 Strands	UL Style 2912	3.05 m 7.62 m 30.48 m 304.8 mm	1 ft 10 ft 25 ft 100 '	Flat Cable Flat Jacket	0.05 in	1.27 mm	50 ft	15.24 m	28 AWG		1.98 in	50.29 mm	Poly-Vinyl Chloride (PVC)	2.79 mm	0.11 "	Splice Free	Shielded	Gray	80 °C	-20 ░C	37

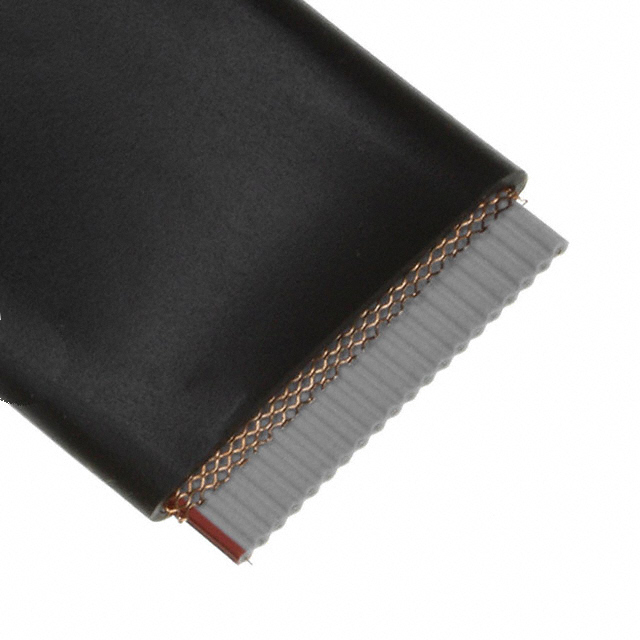

3M Electronic Specialty 3517/20 100SF	Red	Copper Tinned	10 GOhm	300 VDC	36 AWG	7 Strands	UL Style 2912	3.05 m 7.62 m 30.48 m 304.8 mm	1 ft 10 ft 25 ft 100 '	Flat Cable Flat Jacket	0.05 in	1.27 mm	50 ft	15.24 m	28 AWG		1.13 in	28.7 mm	Poly-Vinyl Chloride (PVC)	2.79 mm	0.11 "	Splice Free	Shielded	Gray	80 °C	-20 ░C	20
3M Electronic Specialty 3517/25-100	Red	Copper Tinned	10 GOhm	300 VDC	36 AWG	7 Strands	UL Style 2912	30.48 m	100 '	Flat Cable Flat Jacket	0.05 in	1.27 mm			28 AWG		1.38 in	35.05 mm	Poly-Vinyl Chloride (PVC)	2.79 mm	0.11 "		Shielded	Gray	80 °C	-20 ░C		Enter Number of Feet in Order Quantity	25
3M Electronic Specialty 3517/16 100SF	Red	Copper Tinned	10 GOhm	300 VDC	36 AWG	7 Strands	UL Style 2912	3.05 m 7.62 m 30.48 m 304.8 mm	1 ft 10 ft 25 ft 100 '	Flat Cable Flat Jacket	0.05 in	1.27 mm	50 ft	15.24 m	28 AWG				Poly-Vinyl Chloride (PVC)	2.79 mm	0.11 "	Splice Free	Shielded	Gray	80 °C	-20 ░C	16	Enter Number of Feet in Order Quantity
3M Electronic Specialty 3517/60 100	Red	Copper Tinned	10 GOhm	300 VDC	36 AWG	7 Strands	UL Style 2912	30.48 m	100 '	Flat Cable Flat Jacket	0.05 in	1.27 mm			28 AWG		3.13 in	79.5 mm	Poly-Vinyl Chloride (PVC)	2.79 mm	0.11 "		Shielded	Gray	80 °C	-20 ░C	60
3M Electronic Specialty 3517/15 100SF	Red	Copper Tinned	10 GOhm	300 VDC	36 AWG	7 Strands	UL Style 2912	3.05 m 7.62 m 30.48 m 304.8 mm	1 ft 10 ft 25 ft 100 '	Flat Cable Flat Jacket	0.05 in	1.27 mm	50 ft	15.24 m	28 AWG		0.88 in	22.35 mm	Poly-Vinyl Chloride (PVC)	2.79 mm	0.11 "	Splice Free	Shielded	Gray	80 °C	-20 ░C	15
3M Electronic Specialty 3517/14 100SF	Red	Copper Tinned	10 GOhm	300 VDC	36 AWG	7 Strands	UL Style 2912	3.05 m 7.62 m 30.48 m 304.8 mm	1 ft 10 ft 25 ft 100 '	Flat Cable Flat Jacket	0.05 in	1.27 mm	50 ft	15.24 m	28 AWG		0.83 in	21.08 mm	Poly-Vinyl Chloride (PVC)	2.79 mm	0.11 "	Splice Free	Shielded	Gray	80 °C	-20 ░C	14	Enter Number of Feet in Order Quantity
3M Electronic Specialty 3517/60 100SF	Red	Copper Tinned	10 GOhm	300 VDC	36 AWG	7 Strands	UL Style 2912	3.05 m 7.62 m 30.48 m	10 ft 25 ft 100 '	Flat Cable Flat Jacket	0.05 in	1.27 mm			28 AWG		3.13 in	79.5 mm	Poly-Vinyl Chloride (PVC)	2.79 mm	0.11 "	Splice Free	Shielded	Gray	80 °C	-20 ░C	60
3M Electronic Specialty 3517/14 100	Red	Copper Tinned	10 GOhm	300 VDC	36 AWG	7 Strands	UL Style 2912	3.05 m 7.62 m 30.48 m 304.8 mm	1 ft 10 ft 25 ft 100 '	Flat Cable Flat Jacket	0.05 in	1.27 mm	50 ft	15.24 m	28 AWG		0.83 in	21.08 mm	Poly-Vinyl Chloride (PVC)	2.79 mm	0.11 "		Shielded	Gray	80 °C	-20 ░C	14
