828 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

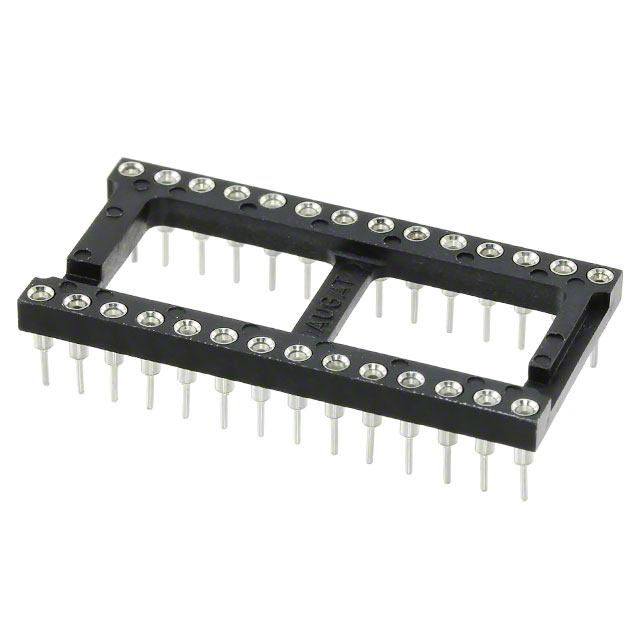

CONN IC DIP SOCKET 28POS TIN
| Part | Termination Post Length | Termination Post Length | Material Flammability Rating | Contact Resistance | Contact Material - Mating | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Material - Post [custom] | Contact Finish - Post | Type [custom] | Type [custom] | Type | Features | Termination | Housing Material | Number of Positions or Pins (Grid) | Pitch - Post | Pitch - Post | Current Rating (Amps) | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.125 in | 3.18 mm | UL94 V-0 | 10 mOhm | Beryllium Copper | 0.1 " | 2.54 mm | -55 C | 105 ░C | Right Angle Through Hole Vertical | Copper | Tin | 15.24 mm | 0.6 in | DIP | Open Frame | Solder | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 28 | 0.1 in | 2.54 mm | ||||
 TE Connectivity AMP Connectors | 0.125 in | 3.18 mm | UL94 V-0 | 10 mOhm | Copper Alloy | 0.1 " | 2.54 mm | -55 C | 105 ░C | Through Hole | Copper Alloy | Tin-Lead | 15.24 mm | 0.6 in | DIP | Open Frame | Solder | Polyester | 28 | 0.1 in | 2.54 mm | 3 A | Tin-Lead | ||
 TE Connectivity AMP Connectors | 0.125 in | 3.18 mm | UL94 V-0 | 10 mOhm | Beryllium Copper | 0.1 " | 2.54 mm | -55 C | 105 ░C | Through Hole | Copper | Gold | 15.24 mm | 0.6 in | DIP | Open Frame | Solder | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 28 | 0.1 in | 2.54 mm | Gold | Flash | Flash |
