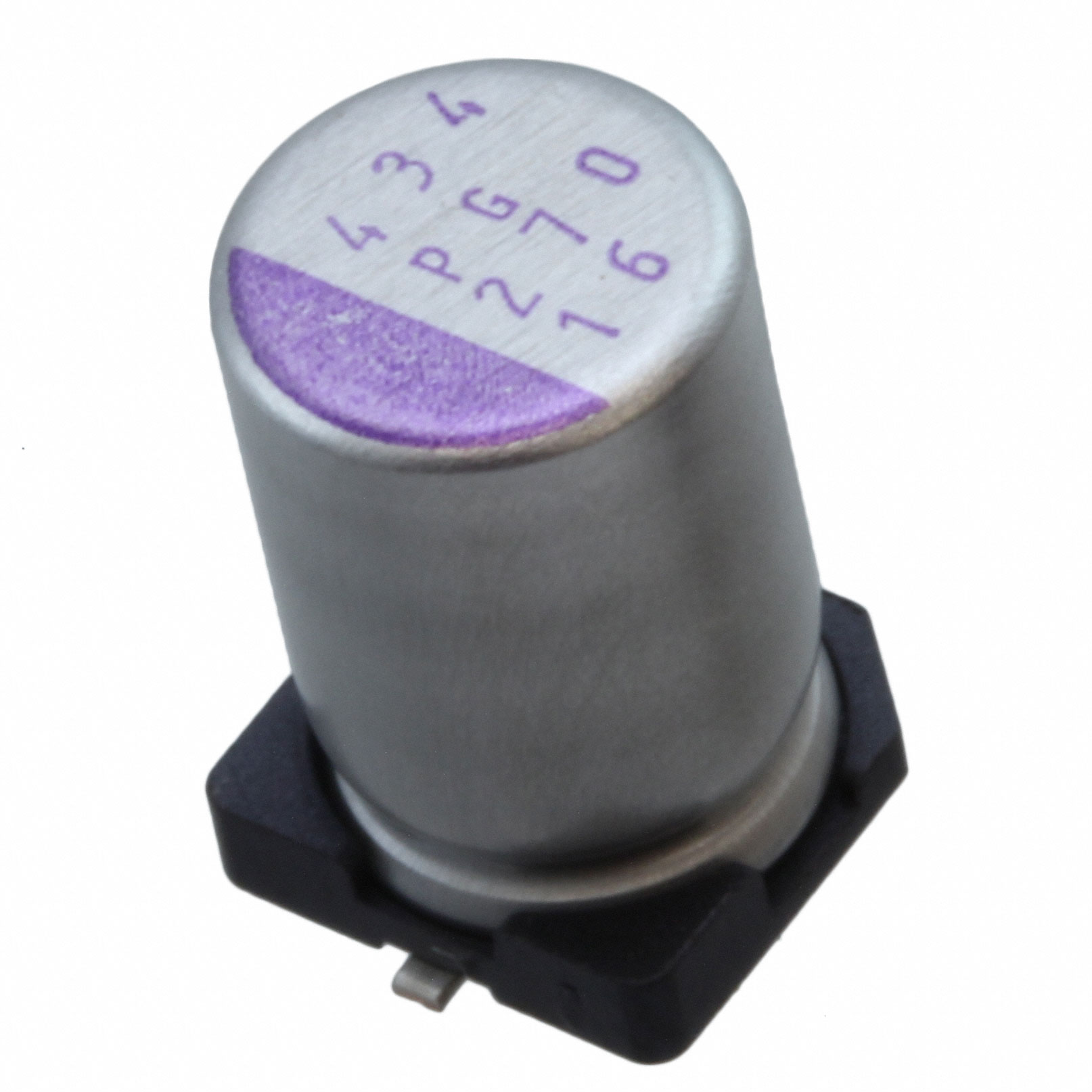

25SVPG Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
CAP ALUM POLY 15UF 20% 25V SMD
| Part | Type | Size / Dimension [diameter] | Size / Dimension [diameter] | ESR (Equivalent Series Resistance) | Package / Case | Mounting Type | Capacitance | Ripple Current @ Low Frequency | Applications | Tolerance | Ripple Current @ High Frequency | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Lifetime @ Temp. | Voltage - Rated | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | Polymer | 0.197 in | 5 mm | 30 mOhms | Radial Can - SMD | Surface Mount | 15 µF | 140 mA | General Purpose | 20 % | 2.8 A | 0.209 in 5.3 mm | 0.209 in 5.3 mm | 5000 Hrs | 25 VDC | 4.5 mm | 0.177 in | -55 C | 105 ░C |
