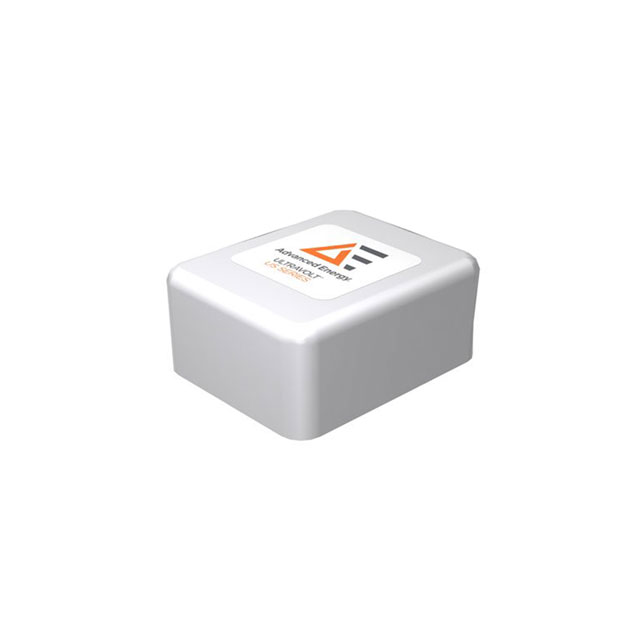

0.4US12 Series
Manufacturer: ULTRAVOLT / Advanced Energy
Beta
⌘K
DC DC CONVERTER 400V
| Part | Control Features | Voltage - Output 1 | Approval Agency | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Package / Case | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Number of Outputs | Mounting Type | Voltage - Input (Max) [Max] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ULTRAVOLT / Advanced Energy | Active High Enable | 400 V | CE cURus | ITE (Commercial) | 65 °C | -10 °C | 25.5 mm | 20.5 mm | 0.43 in | 1 in | 0.81 " | 11 mm | 12-DIP Module 7 Leads | 250 µA | 11.5 V | 1 | Through Hole | 12.5 V | High Voltage - Non-Isolated Module |
