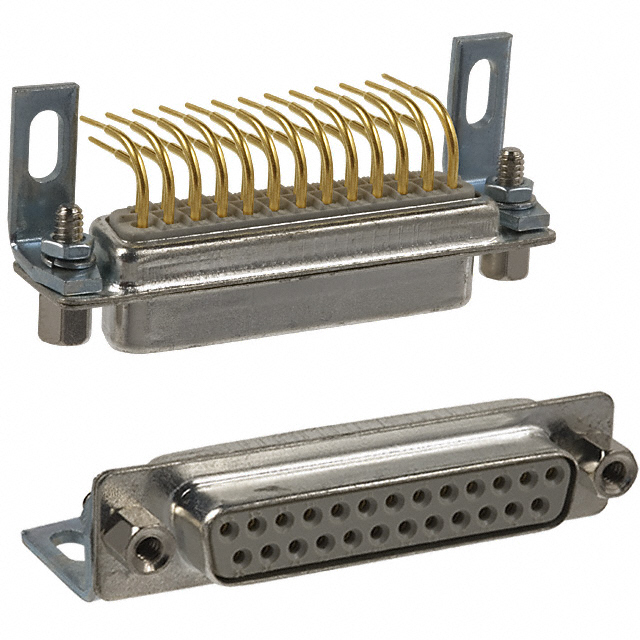

174-025 Series
Manufacturer: NorComp Inc.
Beta
⌘K

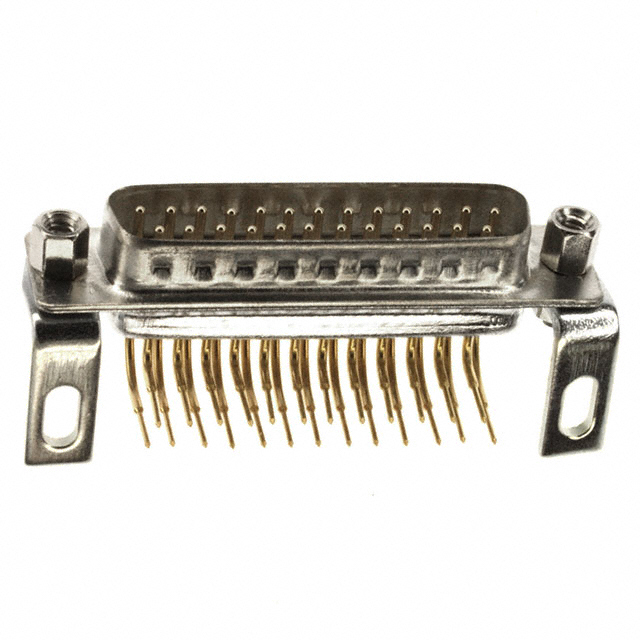

CONN D-SUB PLUG 25POS R/A SLDR
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Material | Dielectric Material | Contact Finish | Connector Type | Connector Style | Termination | Contact Finish Thickness | Backset Spacing | Backset Spacing | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Current Rating (Amps) | Mounting Type | Number of Rows [custom] | Contact Type | Material Flammability Rating | Features | Number of Positions | Flange Feature | Shell Material, Finish [custom] | Shell Material, Finish [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | 100 °C | -50 °C | Beige | Brass | Polybutylene Terephthalate (PBT) Polyester | Gold | Plug Male Pins | D-Sub | Solder | Flash | 9.4 mm | 0.37 in | B DB | 3 | 5 A | Panel Mount Right Angle Through Hole | 2 | Signal | UL94 V-0 | Grounding Indents Mounting Brackets | 25 | 4-40 Mating Side Female Screwlock | ||
 NorComp Inc. | 100 °C | -50 °C | Beige | Polybutylene Terephthalate (PBT) | Gold | Receptacle Female Sockets | D-Sub | Solder | Flash | 9.4 mm | 0.37 in | B DB | 3 | 5 A | Panel Mount Right Angle Through Hole | 2 | Signal | UL94 V-0 | Mounting Brackets | 25 | 4-40 Mating Side Female Screwlock | |||
NorComp Inc. | 100 °C | -50 °C | Beige | Brass | Polybutylene Terephthalate (PBT) Polyester | Gold | Receptacle Female Sockets | D-Sub | Solder | Flash | 9.4 mm | 0.37 in | B DB | 3 | 5 A | Panel Mount Right Angle Through Hole | 2 | Signal | UL94 V-0 | Mounting Brackets | 25 | 4-40 Mating Side Female Screwlock | ||
 NorComp Inc. | 100 °C | -50 °C | Beige | Polybutylene Terephthalate (PBT) | Gold | Receptacle Female Sockets | D-Sub | Solder | Flash | 9.4 mm | 0.37 in | B DB | 3 | 5 A | Panel Mount Right Angle Through Hole | 2 | Signal | UL94 V-0 | Mounting Brackets | 25 | 4-40 Mating Side Female Screwlock | Steel | Yellow Chromate Plated |
