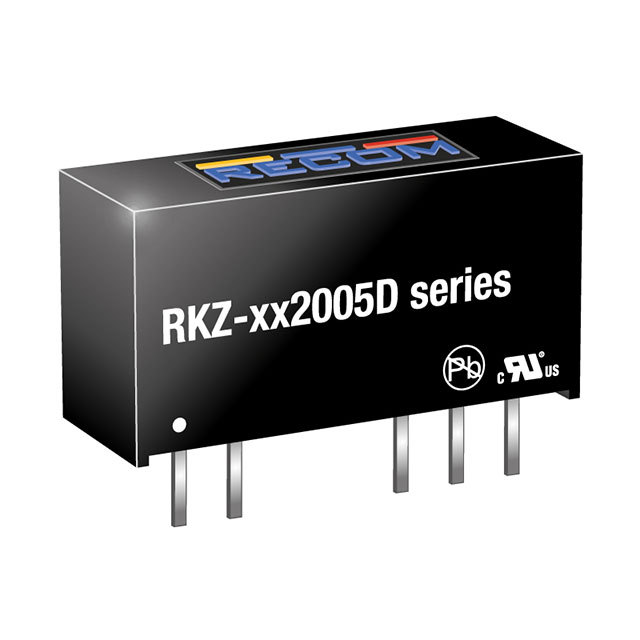

RKZ-xx2005D Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W 24VIN +20/-5VOUT 50/-200MA

Part	Features	Efficiency	Current - Output (Max)	Mounting Type	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 2	Number of Outputs	Voltage - Isolation	Applications	Power (Watts)	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Package / Case	Type

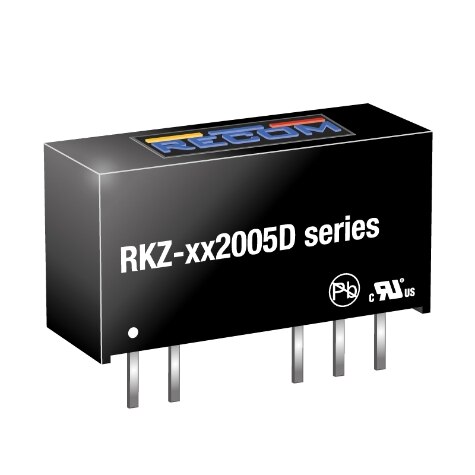

Recom Power RKZ-242005D/P	SCP	87 %	0.2 A 50 mA	Through Hole	20 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	-5 V	2	3000 V	ITE (Commercial)	2 W	26.4 V	85 °C	-40 C	21.6 V	7-SIP Module 5 Leads	Isolated Module
Recom Power RKZ-122005D/P	SCP	86 %	0.2 A 50 mA	Through Hole	20 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	-5 V	2	3000 V	ITE (Commercial)	2 W	13.2 V	85 °C	-40 C	10.8 V	7-SIP Module 5 Leads	Isolated Module
Recom Power RKZ-052005D/HP	SCP	86 %	0.2 A 50 mA	Through Hole	20 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	-5 V	2	4000 V	ITE (Commercial)	2 W	5.5 V	85 °C	-40 C	4.5 V	7-SIP Module 5 Leads	Isolated Module
Recom Power RKZ-242005D/H		87 %	0.2 A 50 mA	Through Hole	20 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	-5 V	2	4000 V	ITE (Commercial)	2 W	26.4 V	85 °C	-40 C	21.6 V	7-SIP Module 5 Leads	Isolated Module
Recom Power RKZ-052005D/H		86 %	0.2 A 50 mA	Through Hole	20 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	-5 V	2	4000 V	ITE (Commercial)	2 W	5.5 V	85 °C	-40 C	4.5 V	7-SIP Module 5 Leads	Isolated Module
Recom Power RKZ-242005D		87 %	0.2 A 50 mA	Through Hole	20 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	-5 V	2	3000 V	ITE (Commercial)	2 W	26.4 V	85 °C	-40 C	21.6 V	7-SIP Module 5 Leads	Isolated Module
Recom Power RKZ-122005D/HP	SCP	86 %	0.2 A 50 mA	Through Hole	20 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	-5 V	2	4000 V	ITE (Commercial)	2 W	13.2 V	85 °C	-40 C	10.8 V	7-SIP Module 5 Leads	Isolated Module
Recom Power RKZ-052005D/P	SCP	86 %	0.2 A 50 mA	Through Hole	20 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	-5 V	2	3000 V	ITE (Commercial)	2 W	5.5 V	85 °C	-40 C	4.5 V	7-SIP Module 5 Leads	Isolated Module
Recom Power RKZ-122005D/H		86 %	0.2 A 50 mA	Through Hole	20 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	-5 V	2	4000 V	ITE (Commercial)	2 W	13.2 V	85 °C	-40 C	10.8 V	7-SIP Module 5 Leads	Isolated Module
Recom Power RKZ-152005D/H		86 %	0.2 A 50 mA	Through Hole	20 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	-5 V	2	4000 V	ITE (Commercial)	2 W	16.5 V	85 °C	-40 C	13.5 V	7-SIP Module 5 Leads	Isolated Module
