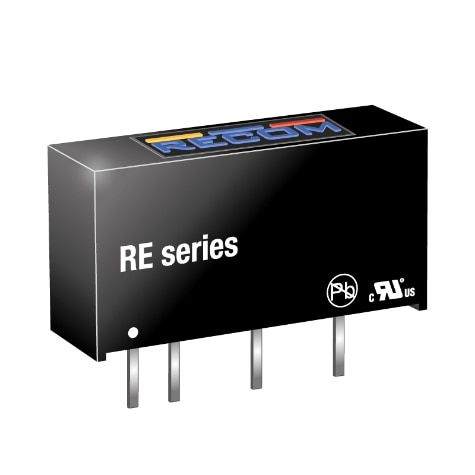

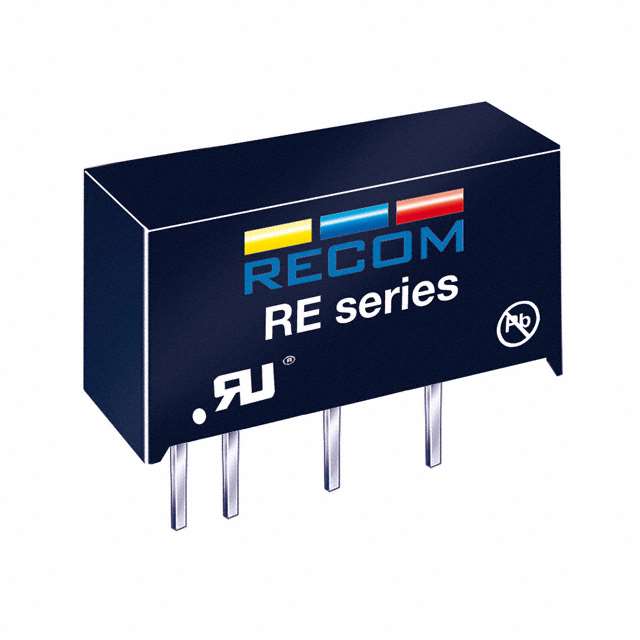

RE Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W DC/DC 1KV UNREG 24VIN 3.3VOUT
| Part | Voltage - Input (Min) [Min] | Applications | Features | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Efficiency | Mounting Type | Voltage - Isolation | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 21.6 V | ITE (Commercial) | SCP | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 7-SIP Module 4 Leads | 303 mA | 26.4 V | Isolated Module | 85 °C | -40 C | 3.3 V | 75 % | Through Hole | 1000 V | 1 |
Recom Power | 13.5 V | ITE (Commercial) | SCP | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 7-SIP Module 4 Leads | 200 mA | 16.5 V | Isolated Module | 85 °C | -40 C | 5 V | 80 % | Through Hole | 2000 V | 1 |
Recom Power | 13.5 V | ITE (Commercial) | SCP | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 7-SIP Module 4 Leads | 303 mA | 16.5 V | Isolated Module | 85 °C | -40 C | 3.3 V | 75 % | Through Hole | 1000 V | 1 |
 Recom Power | 13.5 V | ITE (Commercial) | SCP | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 7-SIP Module 4 Leads | 83 mA | 16.5 V | Isolated Module | 85 °C | -40 C | 12 V | 84 % | Through Hole | 1000 V | 1 |
 Recom Power | 13.5 V | ITE (Commercial) | SCP | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 7-SIP Module 4 Leads | 66 mA | 16.5 V | Isolated Module | 85 °C | -40 C | 15 V | 84 % | Through Hole | 1000 V | 1 |
Recom Power | 4.5 V | ITE (Commercial) | SCP | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 7-SIP Module 4 Leads | 303 mA | 5.5 V | Isolated Module | 85 °C | -40 C | 3.3 V | 75 % | Through Hole | 2000 V | 1 |
 Recom Power | 21.6 V | ITE (Commercial) | SCP | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 7-SIP Module 4 Leads | 200 mA | 26.4 V | Isolated Module | 85 °C | -40 C | 5 V | 80 % | Through Hole | 1000 V | 1 |
Recom Power | 3 V | ITE (Commercial) | SCP | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 7-SIP Module 4 Leads | 200 mA | 3.6 V | Isolated Module | 85 °C | -40 C | 5 V | 80 % | Through Hole | 2000 V | 1 |
Recom Power | 21.6 V | ITE (Commercial) | SCP | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 7-SIP Module 4 Leads | 111 mA | 26.4 V | Isolated Module | 85 °C | -40 C | 9 V | 80 % | Through Hole | 2000 V | 1 |
Recom Power | 3 V | ITE (Commercial) | SCP | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 7-SIP Module 4 Leads | 66 mA | 3.6 V | Isolated Module | 85 °C | -40 C | 15 V | 84 % | Through Hole | 2000 V | 1 |
