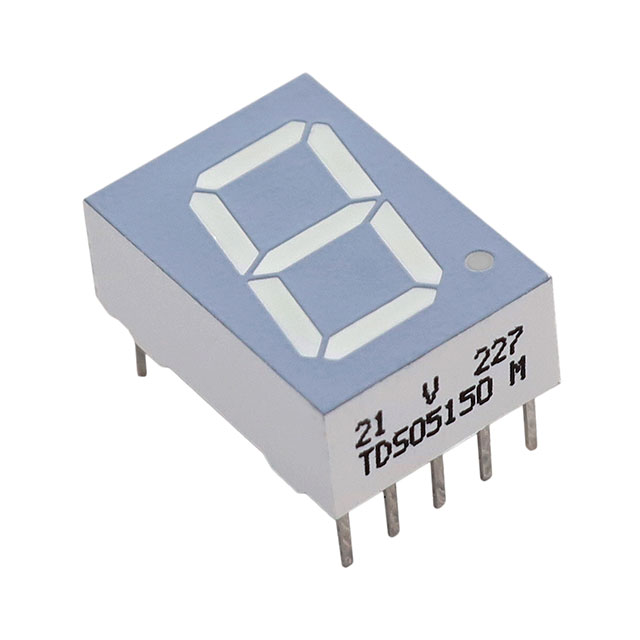

TDSO5150 Series

Catalog

DISP 7SEG 0.51" SGL OR-RED 10DIP

Part	Power Dissipation (Max) [Max]	Color	Digit/Alpha Size	Digit/Alpha Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Number of Characters [custom]	Wavelength - Peak	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Common Pin	Current - Test	Package / Case	Package / Case	Package / Case	Display Type
Vishay General Semiconductor - Diodes Division TDSO5150-LM	550 mW	Orange-Red	0.51 in	13 mm	6.4 mm	17.5 mm	0.482 in	0.252 in	0.689 in	12.25 mm	1	630 nm	9 mcd	2 V	Common Anode	20 mA	0.6 in	15.24 mm	10-DIP	7-Segment
Vishay General Semiconductor - Diodes Division TDSO5150	550 mW	Orange-Red	0.51 in	13 mm	6.4 mm	17.5 mm	0.482 in	0.252 in	0.689 in	12.25 mm	1	630 nm	5 mcd	2 V	Common Anode	20 mA	0.6 in	15.24 mm	10-DIP	7-Segment
Vishay General Semiconductor - Diodes Division TDSO5150-M	550 mW	Orange-Red	0.51 in	13 mm	6.4 mm	17.5 mm	0.482 in	0.252 in	0.689 in	12.25 mm	1	630 nm	9 mcd	2 V	Common Anode	20 mA	0.6 in	15.24 mm	10-DIP	7-Segment
