2709-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

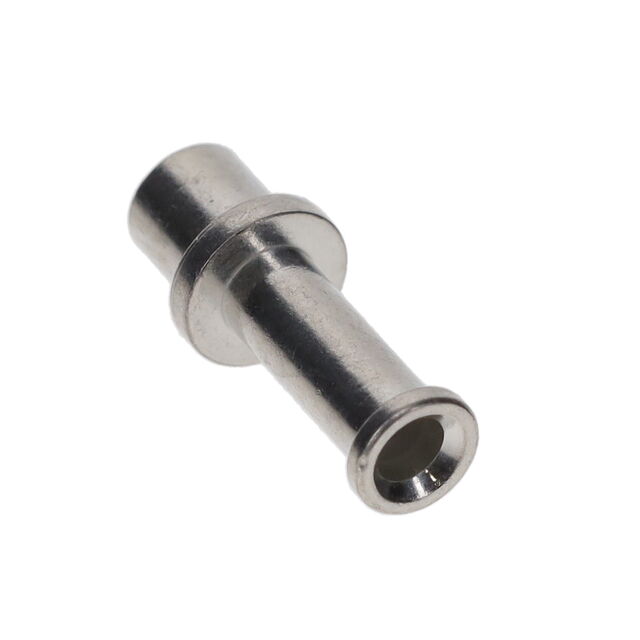

TERM TURRET SINGLE L=7.14MM
| Part | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Material | Board Thickness | Board Thickness | Mounting Type | Terminal Type | Length - Overall [x] | Length - Overall [x] | Termination | Contact Finish | Number of Turrets | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation | Contact Finish Thickness | Contact Finish Thickness | Length - Above Board | Length - Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 2.77 mm | 0.109 in | 0.116 in | 2.95 mm | Brass Alloy | 0.062 in | 1.57 mm | Through Hole | Single End | 0.39 in | 9.91 mm | Swage | Tin-Lead | Single | 3 mm | 0.118 in | 3.96 mm | 0.156 in | Non-Insulated | 200 Áin | 5.08 Ám | 7.14 mm | 0.281 in |
Mill-Max Manufacturing Corp. | 2.77 mm | 0.109 in | 0.116 in | 2.95 mm | Brass Alloy | 0.062 in | 1.57 mm | Through Hole | Single End | 0.39 in | 9.91 mm | Swage | Tin-Lead | Single | 3 mm | 0.118 in | 3.96 mm | 0.156 in | Non-Insulated | 300 µin | 7.62 µm | 7.14 mm | 0.281 in |
Mill-Max Manufacturing Corp. | 2.77 mm | 0.109 in | 0.116 in | 2.95 mm | Brass Alloy | 0.062 in | 1.57 mm | Through Hole | Single End | 0.39 in | 9.91 mm | Swage | Silver | Single | 3 mm | 0.118 in | 3.96 mm | 0.156 in | Non-Insulated | 300 µin | 7.62 µm | 7.14 mm | 0.281 in |
