0273.031 Series

FUSE 125V V/FA MICRO FUSE .031A

Catalog

FUSE 125V V/FA MICRO FUSE .031A

Part	Package / Case	Fuse Type	Melting I²t	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Voltage Rating - AC	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Current Rating (Amps)	Response Time	Mounting Type
LITTELFUSE 0273.031V	Can Radial Vertical	Board Mount (Cartridge Style Excluded)	0.0000081	8.89 mm	6.35 mm	6.35 mm	0.35 "	125 V	CSA QPL UL	-55 C	85 °C	125 VDC	31 mA	Fast Blow	Through Hole

Catalog

FUSE 125V V/FA MICRO FUSE .031A

Description

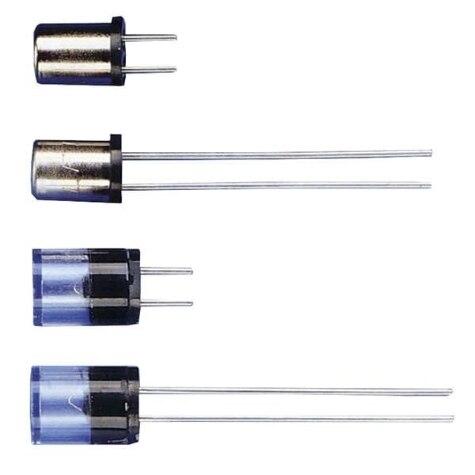

Developed originally for the U.S. Space Program, MICRO™ fuse provides reliability in a compact design. The MICRO™ fuse is available in plug–in or radial lead styles and a complete range of ampere ratings from 1/500 to 5A to suit a wide variety of design needs.
